PLC

Siemens 6ED10522HB080BA1LOGO! 24RCEO (AC), logic module, PS/I/O: DC 24V/AC 24V/relay, 8 DI/4 DO, without display, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, web pages custom, standard microSD card for LOGO! SOFT Comfort from V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3 The LOGO! basic devices 8 with 8 digital inputs and 4 digital outputs and their reduced installation width of only 72 mm, have many well-known functions (current impulse relay, staircase light automation, auxiliary contactor, time relay, etc.) already integrated and freely combinable with each other. The control programs are easily created and simulated on a PC. The respective integrated Ethernet interface enables communication with up to nine LOGO! modules. 8 or SIMATIC S7 systems. With the Web Server, also integrated, the connected users can be monitored and controlled via WLAN or Internet. The user himself can configure web pages, even if he has no knowledge of HTML. Using additional modules, GSM or GPS communication can be implemented as well as integration into a building control system. The LOGO! basic modules 8 are available with and without display for different input voltages as well as with transistor or relay outputs (up to 10 A nominal). Expandable with additional modules up to 24 DI / 20 DQ (8 AI / 8 AQ). Integrated cloud communication. LOGO! 8 can also be expanded with an external Text Display for significant messages in plain text. The backlight color is selectable for optical highlights. Different LOGOs are also available! Power Module for power supply.

Read more less

Finder PLC Opta programmable logic relay (PLR) 8A0490248300 OPTA is a PLC and Programmable Logic Relay (PLR) with 8 inputs and 4 outputs. Programmable both with traditional languages ​​(Ladder, FBD, etc.) and with an innovative and open source language (IDE /ARDUINO). Equipped with USB (Type-C port) for programming, data logging and power supply during programming. – Lite version with USB (Type-C port), ETH Technical data: Contact configuration: 4 NO Rated current/Max instantaneous current A: 10/15Rated voltage/Max switching voltage V AC: 250/400 Rated load in AC1 VA: 2500Rated load in AC15 (230 V AC) VA: 500Breaking capacity in DC1: 24/110/220 V A 10/0.3/0.12Minimum load switchable mW(V/mA): 300 (5/5) Contact opening/closing time ms: 6/4Standard contact material: AgNi Rated voltage (UN) V DC:  12…24Rated power W: 0.6 …2.2 (depending on the type)Operating range V DC: 10.2…27.6

Read more less

SIEMENS LOGO! 24RCE 6ED10521HB080BA1  LOGO! 24RCE, logic module, PS/I/O display: AC 24 V/DC 24 V/relay, 8 DI/4 DO, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, custom web pages, card standard microSD for LOGO! Soft Comfort as of V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3. DisplayWith display YesMounting typeMounting on 35 mm standard rail, width of 4 units dimensionSupply voltageRated value (DC)● DC 24 V YesPermitted range, lower limit (DC) 20.4 VPermissible range, upper limit (DC) 28.8 VRated value (AC)● AC 24 V YesMains frequency● Range allowed, lower limit 47 Hz● Allowed range, upper limit 63 HzTimeClocks switches● Number 400; Max. 400, depending on function● Power reserve 480 h Digital inputsNumber of inputs 8Digital outputsNumber of outputs 4; RelayShort circuit protection No; requires external protection Relay outputsContact breaking capacity— with inductive load, max. 3 A— with ohmic load, max. 10 AEMCRadio interference emission according to EN 55 011● Limit value class B, for use in zones residentialYes; Radio interference suppression according to EN 55011, limit value class BStandards, approvals, certificatesCE marking YesCSA approval YesUL approval YesApproval FM Yesdeveloped according to IEC 61131 Yesaccording to VDE 0631 YesMarine approval Yes

Read more less

SIEMENS LOGO! 12/24RCE 6ED10521MD080BA1 LOGO! 12/24RCE, logic module, display PS/I/O: 12/DC 24 V/relay, 8DI (4AI)/4DO, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, customized web pages, standard microSD card for LOGO! Soft Comfort as of V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3. DisplayWith display YesMounting typeMounting on 35 mm standard rail, width of 4 units dimensionSupply voltageRated value (DC)● 12 V DC Yes● 24 V DC YesPermitted range, lower limit (DC) 10.8 VAllowable range, upper limit (DC) 28.8 V TimeClock switches● Number 400; Max. 400, depending on function● Power reserve 480 hDigital inputsNumber of inputs 8; of which 4 can be used as analogue (0 ... 10 V)Digital outputsNumber of outputs 4; RelayShort circuit protection No; requires external protectionOutput current● for signal "1" permitted range for 0 ... 55 °C, max. 10 ARelay outputsContact breaking capacity— with inductive load, max. 3 A— with ohmic load, max. 10 AEMCRadio interference emission according to EN 55 011● Limit value class B, for use in residentialareasYes; Radio interference suppression according to EN 55011, limit value class BStandards, approvals, certificatesCE marking YesCSA approval YesUL approval YesApproval FM Yesdeveloped according to IEC 61131 Yesaccording to VDE 0631 YesMarine approval Yes

Read more less

SIEMENS DIGITAL INPUT SM 1221  6ES7221-1BH32-0XB0 Digital input unit SM 1221, 16DI, DC 24V, Sink/Source. General informationProduct type designation SM 1221, DI 16x24 VDCSupply voltageNominal value (DC) 24 VPermissible range, lower limit (DC) 20.4 VPermissible range, upper limit (DC) 28.8 VInput currentfrom backplane bus 5 V DC, max. 130 mA Digital inputs● from load voltage L+ (no load), max. 4 mA; per channeloutput voltage / headertransmitter supply voltage / header● present Yes Power dissipatedPower dissipation, typ. 2.5 WDigital inputs Number of entrances 16● in groups of 4 Input characteristic according to IEC 61131, Type 1 YesNumber of inputs that can be managed simultaneouslyall installation positions— up to 40 °C, max. 16 Horizontal mounting position— up to 40 °C, max. 16— up to 50 °C, max. 16 Vertical mounting position— up to 40 °C, max. 16 Input voltage● Rated value (DC) 24 V● for signal "0" 5 V DC with 1 mA● for signal "1" DC 15 V with 2.5 mA Input current● for signal "0", max. (permissible quiescent current) 1 mA● for signal "1", min. 2.5 mA● for signal "1", typ. 4 mA Delay in entry (with nominal input voltage value)for standard inputs— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of 4 for alarm inputs.

Read more less

SIEMENS SIMATIC S7-1200 6ES72231BL320XB0 Digital I/O SM 1223, 16DI/16DO, 16DI DC 24V, Sink/Source, 16DO, Transistor 0.5A . General informationProduct type designation: SM 1223, DI 16x24 VDC, DQ 16x24 VDC Supply voltage Rated value (DC): 24 V Allowable range, lower limit (DC): 19.2 V Allowable range, upper limit (DC): 28.8 V Input current from backplane bus DC 5 V, max..: 185 mADigital inputs from load voltage L+ (without load), max.: 4 but; per channel Power Active power absorbed, tip: 4.5 W

Read more less

SIEMENS SIMATIC S7-1500 6ES7522-1BL01-0AB0 DQ 32xDC 24V/0.5A HF digital output module; 32 channels in groups of 8; 4A for each group; single channel diagnostics; substitute value, operating cycle counter for the connected actuators. The unit supports the safe disconnection of load groups up to SIL2 according to EN IEC 62061:2021 and category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw or push-in terminals) to be ordered separately. General informationProduct type designation: DQ 32x24VDC/0.5A HFHardware version: From FS02Firmware version: V1.1.0Product function● I&M data: Yes; I&M0 ... I&M3● Isochronous operation: Yes● Prioritized startup: YesEngineering with● STEP 7 TIA Portal configurable/integrated from version: V13 SP1 / -● STEP 7 configurable/integrated from version: V5.5 SP3 / -● PROFIBUS from GSD version/GSD revision: V1.0 / V5.1● PROFINET from GSD version/GSD revision: V2.3 / -Operating mode● DQ: Yes● DQ with power saving function: No● PWM: No● Cam control (switching to comparison values): No● Oversampling: No● MSO: Yes● Integrated switching cycle counter: Yes Supply voltage Rated value (DC): 24 VAllowable range, lower limit (DC): 19.2 VAllowable range, upper limit (DC): 28.8 VReverse polarity protection : Yes; by internal protection with 7 A per group Input current Current consumption, max.: 60 mA Power dissipated Power dissipation, typ.: 3.5 W

Read more less

SIEMENS SIMATIC S7-1500 6ES75261BH000AB0 Digital input module F, F-DI 16x 24VDC PROFIsafe; width built 35mm; up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508) General informationProduct type designation: F-DI 16x24VDCPossible FW update: Yes Supply voltage Rated value (DC): 24 V Permissible range, lower limit (DC): 19.2 V Permissible range, upper limit (DC): 28, 8 VReverse polarity protection: YesVoltage supply required according to NEC class 2: NOInput current Current consumption (nominal value): 50 mA; without loadCurrent consumption, max.: 60 mA; without loadPower loss Power loss, typ.: 4.6 W

Read more less

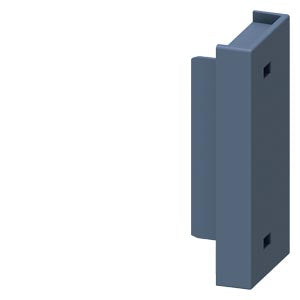

Siemens 3RK1908-1DA00-2BP0 Protezione da contatto per bus di energia per avviatori motore ET 200SP busta contenente 10 pezzi

Read more less

Siemens 6SN1118-0DH21-0AA0  **pezzo di ricambio** SIMODRIVE 611-D modulo di regolazione a 2 assi per azionamento digitale VSA, senza sistema di misura diretto regolazione Performance

Read more less

***Parte di ricambio*** SIMATIC S7, Micro Memory card per S7-300/C7/ET 200, 3, 3V Nflash, 512 kbyte

Read more less

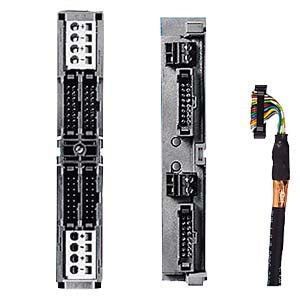

modulo connettore frontale con connessione per cavo piatto tondo per unità analogiche (40 pin) unità di S7-300 alimentazione di corrente tramite morsetti a vite

Read more less
