Description

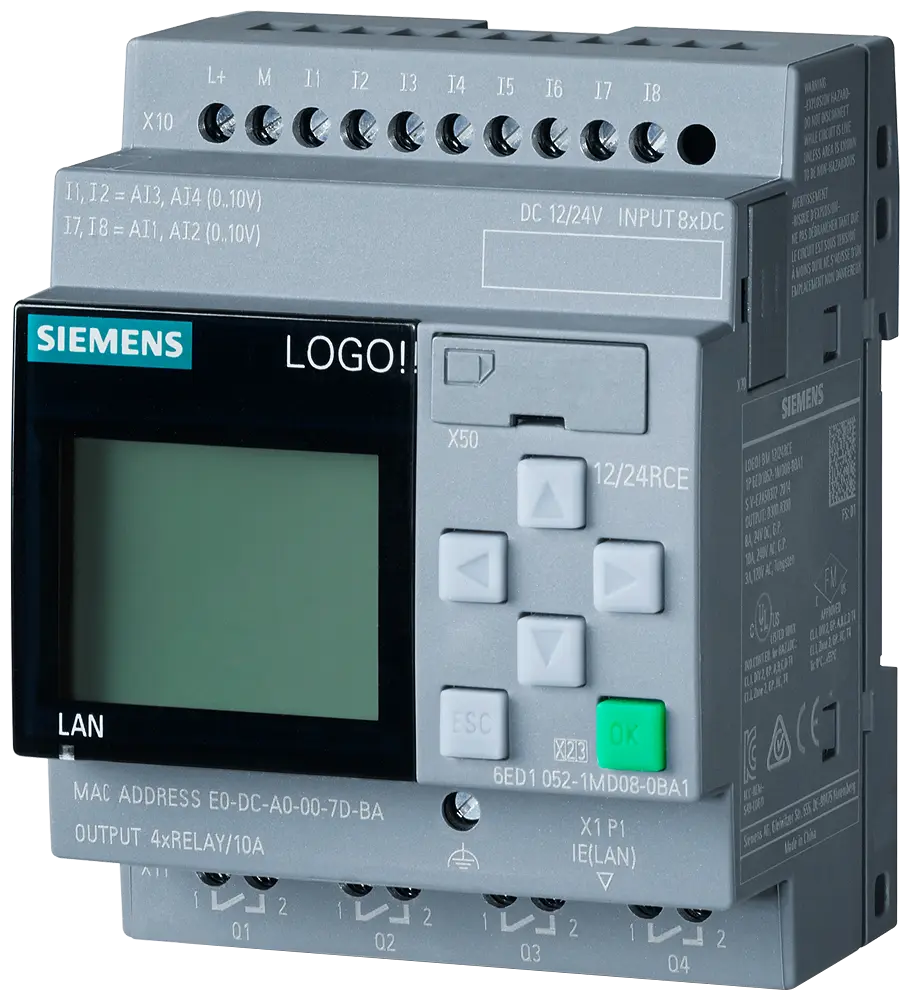

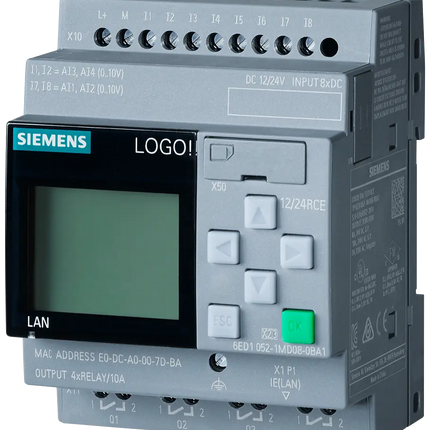

SIEMENS LOGO! 12/24RCE 6ED10521MD080BA1
LOGO! 12/24RCE, logic module, display PS/I/O: 12/DC 24 V/relay, 8DI (4AI)/4DO, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, customized web pages, standard microSD card for LOGO! Soft Comfort as of V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3.
Display
With display Yes
Mounting type
Mounting on 35 mm standard rail, width of 4 units dimension
Supply voltage
Rated value (DC)
● 12 V DC Yes
● 24 V DC Yes
Permitted range, lower limit (DC) 10.8 V
Allowable range, upper limit (DC) 28.8 V
Time
Clock switches
● Number 400; Max. 400, depending on function
● Power reserve 480 h
Digital inputs
Number of inputs 8; of which 4 can be used as analogue (0 ... 10 V)
Digital outputs
Number of outputs 4; Relay
Short circuit protection No; requires external protection
Output current
● for signal "1" permitted range for 0 ... 55 °C, max. 10 A
Relay outputs
Contact breaking capacity
— with inductive load, max. 3 A
— with ohmic load, max. 10 A
EMC
Radio interference emission according to EN 55 011
● Limit value class B, for use in residential
areas
Yes; Radio interference suppression according to EN 55011, limit value class B
Standards, approvals, certificates
CE marking Yes
CSA approval Yes
UL approval Yes
Approval FM Yes
developed according to IEC 61131 Yes
according to VDE 0631 Yes
Marine approval Yes
