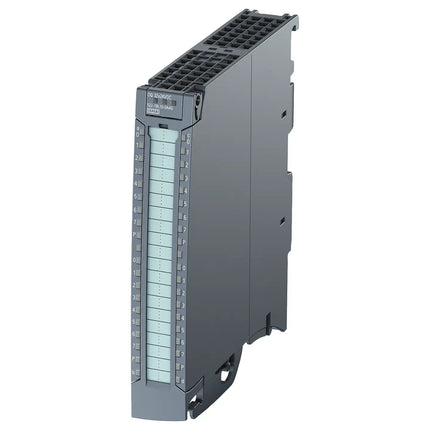

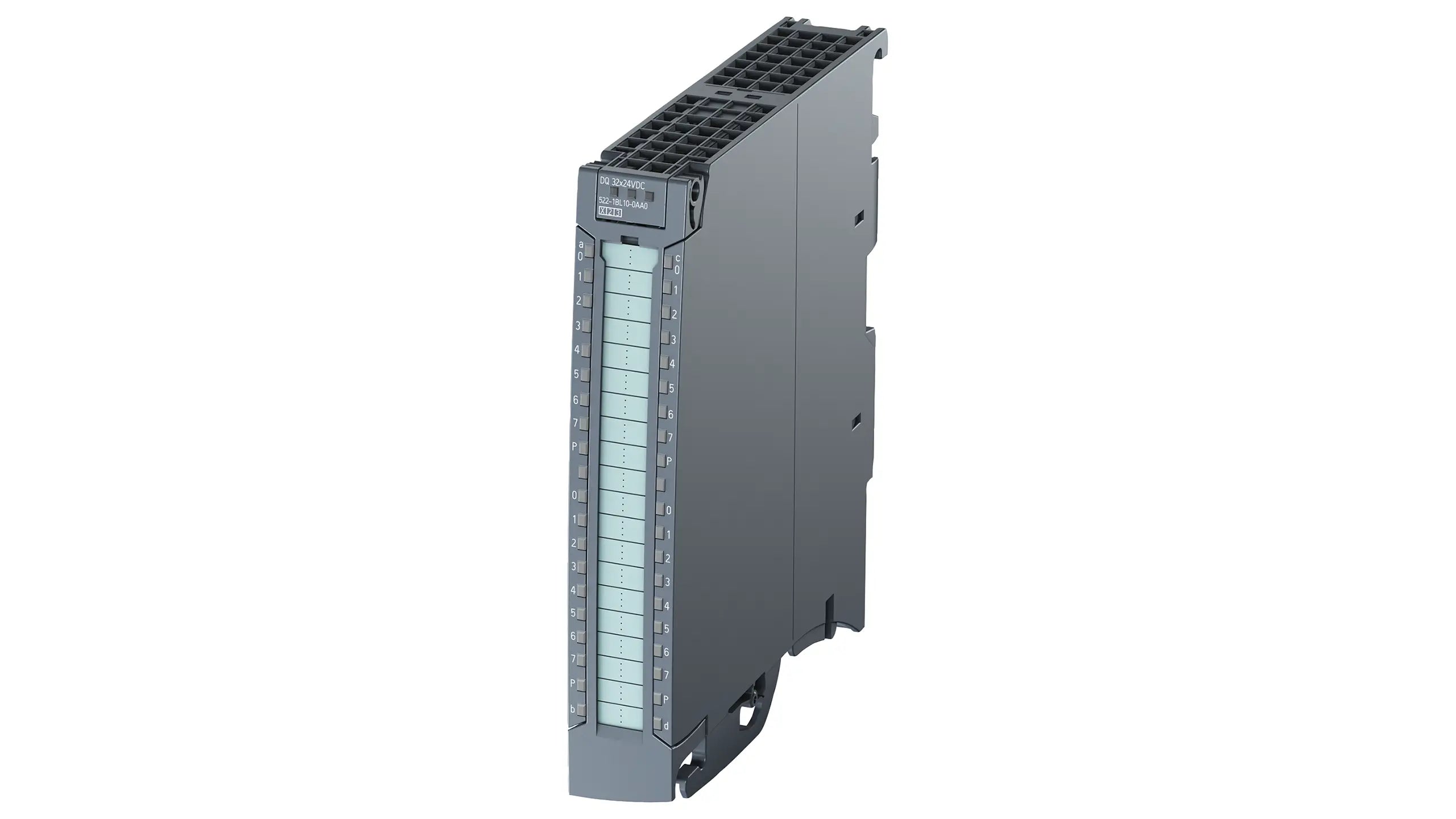

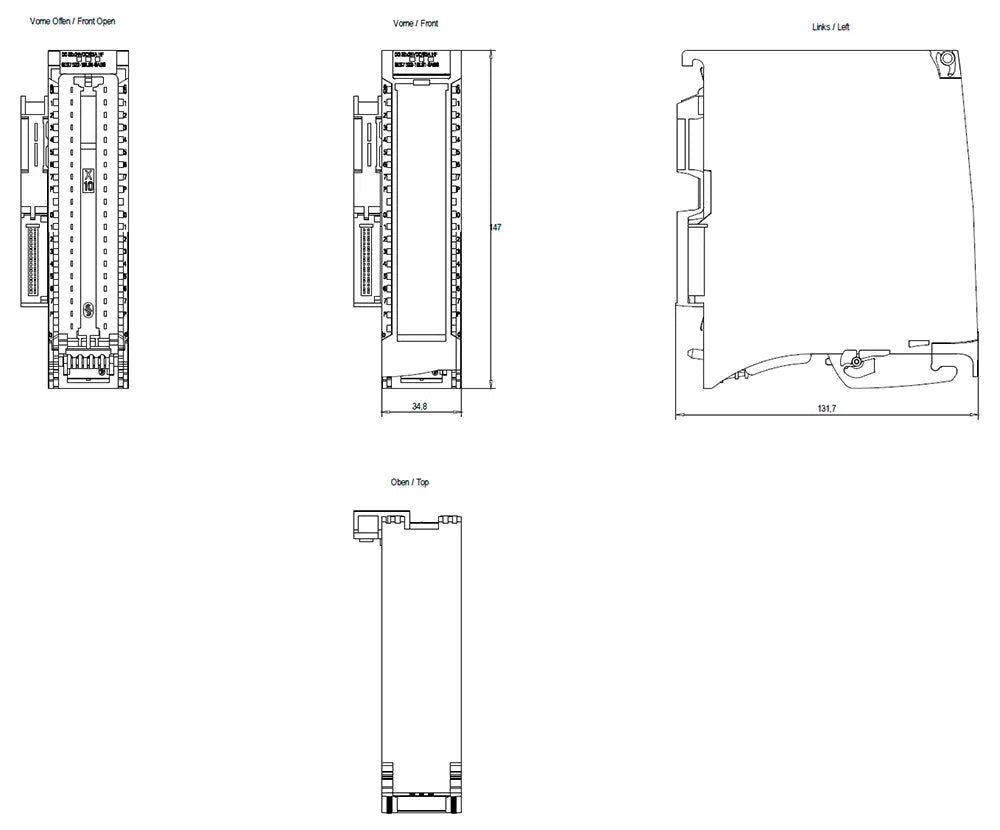

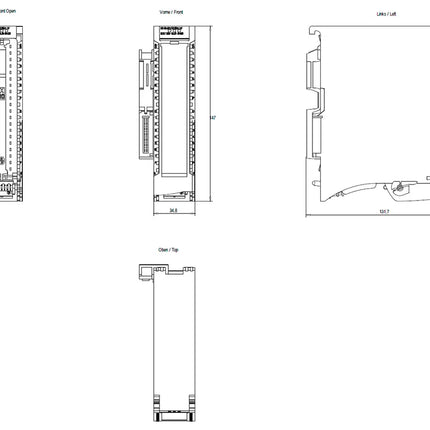

SIEMENS SIMATIC S7-1500 6ES7522-1BL01-0AB0
DQ 32xDC 24V/0.5A HF digital output module; 32 channels in groups of 8; 4A for each group; single channel diagnostics; substitute value, operating cycle counter for the connected actuators. The unit supports the safe disconnection of load groups up to SIL2 according to EN IEC 62061:2021 and category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw or push-in terminals) to be ordered separately.
General information
Product type designation: DQ 32x24VDC/0.5A HF
Hardware version: From FS02
Firmware version: V1.1.0
Product function
● I&M data: Yes; I&M0 ... I&M3
● Isochronous operation: Yes
● Prioritized startup: Yes
Engineering with
● STEP 7 TIA Portal configurable/integrated from version: V13 SP1 / -
● STEP 7 configurable/integrated from version: V5.5 SP3 / -
● PROFIBUS from GSD version/GSD revision: V1.0 / V5.1
● PROFINET from GSD version/GSD revision: V2.3 / -
Operating mode
● DQ: Yes
● DQ with power saving function: No
● PWM: No
● Cam control (switching to comparison values): No
● Oversampling: No
● MSO: Yes
● Integrated switching cycle counter: Yes
Supply voltage
Rated value (DC): 24 V
Allowable range, lower limit (DC): 19.2 V
Allowable range, upper limit (DC): 28.8 V
Reverse polarity protection : Yes; by internal protection with 7 A per group
Input current
Current consumption, max.: 60 mA
Power dissipated
Power dissipation, typ.: 3.5 W
