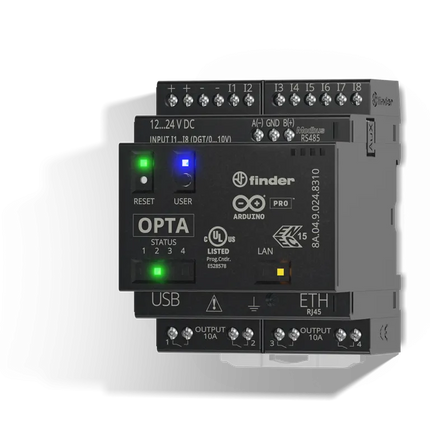

Finder PLC Opta programmable logic relay (PLR) 8A0490248300
OPTA is a PLC and Programmable Logic Relay (PLR) with 8 inputs and 4 outputs. Programmable both with traditional languages (Ladder, FBD, etc.) and with an innovative and open source language (IDE /ARDUINO). Equipped with USB (Type-C port) for programming, data logging and power supply during programming.
– Lite version with USB (Type-C port), ETH
Technical data:
Contact configuration: 4 NO
Rated current/Max instantaneous current A: 10/15
Rated voltage/Max switching voltage V AC: 250/400
Rated load in AC1 VA: 2500
Rated load in AC15 (230 V AC) VA: 500
Breaking capacity in DC1: 24/110/220 V A 10/0.3/0.12
Minimum load switchable mW(V/mA): 300 (5/5)
Contact opening/closing time ms: 6/4
Standard contact material: AgNi
Rated voltage (UN) V DC: 12…24
Rated power W: 0.6 …2.2 (depending on the type)
Operating range V DC: 10.2…27.6
