Abb 1SAJ530000R1100  The UMC100.3 DC intelligent motor controller uses a 110...240 V AC/DC power supply and is suitable for overload protection. It can be connected to a variety of communication networks and has a wide range of additional parameters to maximize motor protection.

Read more less

Schneider Electric LXM32AD72N4 The product is part of the Lexium 32 range, an offering of motion control servo drives and servomotors for machines from 0.15 kW to 7 kW. The AC motion servo drive for one axis is equipped with an integrated EMC filter, compact drive with analog inputs and pulse train. It provides the following inputs: 1 acquisition, 2 safety and 4 logic, and 2 outputs. Technical dataSwitching frequency8 kHzOvervoltage categoryIIIMaximum leakage current30 mAOutput voltage electrical insulationBetween power and controltype of cablesIEC cable single stranded 50 °C) copper 90°C XLPE/EPRelectrical connectionClamp, clamping capacity: 3 mm², AWG 12 (CN8)Clamp, clamping capacity: 5 mm², AWG 10 (CN1)Clamp, clamping capacity: 5 mm², AWG 10 (CN10) tightening torque0.5 Nm CN8:0.7 Nm CN1:0.7 Nm CN10:Number of digital inputs1 acquisition of discrete inputs2 safety discrete inputs4 logic discrete inputsType of digital inputAcquisition (CAP terminals)Logic (DI terminals)Safety (complement of STO_A, complement of STO_B terminals) Sampling duration0.25 ms DI: digitalDigital input voltage24V DC for acquisition24V DC for logic24V DC for safetyDigital input logicPositive (complement of STO_A, complement of STO_B) at State 0: 15 V conforming to EN/IEC 61131-2 type 1Positive (DI) at State 0: > 19 V at State 1: Positive or negative (DI) at State 0: 15 V conforming to EN/IEC 61131-2 type 1

Read more less

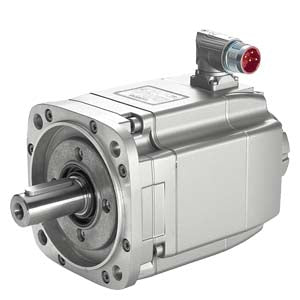

Siemens 1FL60641AC612LG1 SIMOTICS S-1FL6-1FL6 mains voltage 3 AC 400 V PN=1.5 kW, NN=2000 rpm, M0=8 Nm, MN=7.16 Nm shaft height 65 mm with angled connector, absolute encoder 20 bit 12 bit Multi-Turn smooth shaft, N tolerance without holding brake IP65 degree of protection with sealing ring compatible with SINAMICS V70&V90 converters

Read more less

Schneider Electric BMH1001P16A2A MOT. BMH 100MM IEC 3.6NM IP54 CHI.. Product or component type: Servo motor - Abbreviated name: BMH - Maximum mechanical speed: 6000 rpm - Continuous stopping torque: 3.3 Nm for LXM32. D12N4 3 A at 400 V three-phase, 3.3 Nm for LXM32. D12N4 3 A at 480 V three phase, 3.4 Nm for LXM32. D18N4 6 A at 400 V three phase, 3.4 Nm for LXM32. D18N4 6 A at 480 V three-phase - max stopping torque: 10.8 Nm for LXM32. D12N4 3 A at 400 V three phase, 10.8 Nm for LXM32. D12N4 3 A at 480 V three phase, 10.8 Nm for LXM32. D18N4 6 A at 400 V three phase, 10.8 Nm for LXM32. D18N4 6 A at 480 V three-phase - output power: 1300 W for LXM32. D18N4 6 A at 400 V three-phase, 1300 W for LXM32. D18N4 6 A at 480 V three-phase, 800 W for LXM32. D12N4 3 A at 400 V three-phase, 800 W for LXM32. D12N4 3 A at 480 V three-phase - rated torque: 1.9 Nm for LXM32. D12N4 3 A at 400 V three phase, 1.9 Nm for LXM32. D12N4 3 A at 480 V three phase, 3.1 Nm for LXM32. D18N4 6 A at 400 V three-phase, 3.1 Nm for LXM32. D18N4 6 A at 480 V three-phase - rated speed: 4000 rpm for LXM32. D12N4 3 A at 400 V three-phase, 4000 rpm for LXM32. D12N4 3 A at 480 V three-phase, 4000 rpm for LXM32. D18N4 6 A at 400 V three-phase, 4000 rpm for LXM32. D18N4 6 A at 480 V three-phase - product compatibility: LXM32,D12N4 at 400...480 V three-phase, LXM32,D18N4 at 400...480 V three-phase - Shaft End: Locked- Signal Resolution Speed: 32768 Points/Rev - Parking Brake: Without - Mounting Support: International Standard Flange - Electrical Connection: Rotatable 90° Connectors. Benefits:.. Applications:..

Read more less

Siemens 1FL60322AF211AA1 SIMOTICS S-1FL6 operating voltage 3AC 230 V PN=0.2 kW NN=3000 1/min, M0=0.64 Nm MN=0.64 Nm axle height 30 mm incremental translator TTL 2500 incr./rev with keyed tolerance N without parking brake IP65 degree of protection with sealing ring compatible with SINAMICS V90 converters SIMOTICS S-1FL6 LI servo motor for simple and more sophisticated dynamic applications in combination with the SINAMICS V90 servo converter.  The motor can be combined with the SINAMICS V90 converter and the MOTION-CONNECT 300 connection technology to form a powerful servo system with high functionality. This results in a homogeneous drive system. For all applications that require highly dynamic and exact motion sequences, the drive system consisting of the SIMOTICS S-1FL6 and SINAMICS V90 is the ideal choice.  Users benefit from high dynamics, precision and compactness. The SIMOTICS S-1FL6 servo motor is a synchronous motor with permanent magnet excitation, designed for operation without external cooling. Heat is dissipated by the outer surface of the motor. Thanks to a quick-release connector, the installation of these motors is particularly quick and easy. The servo motor covers the rated torque from 0.16 Nm to 6.37 Nm and the rated RPM from 3000 min-1. The motor also has a choice of a TTL 2500 ppr incremental encoder, a 21-bit singleturn absolute encoder and a 20-bit multiturn absolute encoder. With various options, such as connectors, encoders and other accessories, the SIMOTICS S-1FL6 LI servo motor can be adapted to the specific needs of the user. SIMOTICS - Dynamic and precise.

Read more less

Schneider Electric LXM32AD18N4 LXM32A CAN RJ45 18A RMS PEAK 3pH 480V. Product range: Lexium 32 - type of product or component: servo drive - abbreviated name: LXM32A - number of phases of the network: three-phase - Rated supply voltage [Us] : 200...240 V (- 15...10%), 380...480 V (- 15...10 %) - supply voltage limits: 170...264 V, 323...528 V - mains frequency: 47.5...63 Hz - EMC filter: integrated - continuous power: 1500 W at 230 V, 3300 W at 400 V - nominal power supply: 1.8 kW at 400 V (f = 8 kHz), 1.2kW at 230 V (f = 8 kHz) - Line current:  4,5 A, THDI of 165 % at 480 V, without line choke, 6 A, THDI of 98 % at 480 V, with external line choke di 1 mH, 6.2 A, THDI of 159 % at 380 V, without line choke, 7,2 A, THDI of 88 % at 380 V, with external line choke di 1 mH. Benefits:.. Applications:..

Read more less

Rockwell Automation 00885630980072 Electric motor type/model Rockwell Automation 00885630980072 - VPL-B0753E-PJ14AA

Read more less

Siemens 1FL60611AC612AA1 SIMOTICS S-1FL6 mains voltage 3 AC 400 V PN=0.75 kW, NN=2000 1/min, M0=4 Nm, MN=3.58 Nm axis height 65 mm with angled connector, incremental transducer 2500 incr./rev with key, tolerance N without parking brake IP65 degree of protection with sealing ring compatible with SINAMICS V70&V90 converters

Read more less

Schneider Electric BCH2LF0733CA5C Servo motor BCH, 80mm, 750W, w oil seal, w key, leads with. Compatibility range: Lexium 28 - product or component type: servo motor - abbreviated name: BCH2. Benefits:.. Applications:..

Read more less

Siemens 1FL60641AC612AA1SIMOTICS S-1FL6-1FL6 mains voltage 3 AC 400 V PN=1.5 kW, NN=2000 1/min, M0=8 Nm, MN=7.16 Nm shaft height 65 mm with angled connector, incremental transducer 2500 incr./rev with key, tolerance N without holding brake degree of protection IP65 with sealing ring compatible with SINAMICS V70&V90 converters

Read more less

Siemens 1FL60621AC612AA1SIMOTICS S-1FL6-1FL6 mains voltage 3 AC 400 V PN=1 kW, NN=2000 1/min, M0=6 Nm, MN=4.78 Nm height shaft diameter 65 mm with angled connector, incremental transducer 2500 incr./rev with key, N tolerance without holding brake IP65 protection degree with sealing ring compatible with SINAMICS V70&V90 converters

Read more less

Siemens 1FL60342AF211AA1SIMOTICS S-1FL6 operating voltage 3AC 230 V PN=0.4 kW NN=3000 1/min, M0=1.27 Nm MN=1.27 Nm height d axis 30 mm incremental translator TTL 2500 incr./rev. with keyway tolerance N without holding brake degree of protection IP65 with sealing ring compatible with SINAMICS V90 converters SIMOTICS S-1FL6 LI servomotor for simple and more sophisticated dynamic applications in combination with the SINAMICS V90 servo converter. The motor can be combined with the SINAMICS V90 converter and the MOTION-CONNECT 300 connection technology to form a powerful, highly functional servo system. This results in a homogeneous drive system. For all applications requiring highly dynamic and exact motion sequences, the drive system consisting of SIMOTICS S-1FL6 and SINAMICS V90 is the ideal choice. Users benefit from high dynamics, precision and compactness. The SIMOTICS S-1FL6 servo motor is a synchronous motor with permanent magnet excitation, designed for operation without external cooling. The heat is dissipated from the outer surface of the motor. Thanks to a quick-release connector, the assembly of these motors is particularly simple and fast. The servomotor, characterized by high dynamics and low moment of inertia (Low Inertia motor), is available in four shaft heights and one braking power between 0.05 kW and 2.00 kW. The motor complies with the IP65 protection rating as standard and is equipped with a natural cooling system. The servo motor covers the rated torque from 0.16 Nm to 6.37 Nm and the rated speed from 3000 min-1. The motor also has a choice of a TTL 2500 ppr incremental encoder, a 21-bit singleturn absolute encoder and a 20-bit multiturn absolute encoder. Using various options, such as connectors, encoders and other accessories, the SIMOTICS S-1FL6 LI servo motor can be adapted to specific user needs. SIMOTICS - Dynamic and precise.

Read more less

Schneider-electric CANopen communication module  VW3A3608   The Altivar CANopen daisy chain communication module from Schneider Electric has 2 ports with RJ45 connectors. It complies with the CANopen Daisy Chain communication protocol. This communication module allows the integration of the drive into the CANopen daisy-chain process control network. Thanks to the removable modular design it is easy to install and remove from Altivar drives. It is compatible with Altivar Process ATV600 (ATV630, ATV650), Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV320, Lexium 32, Altivar 32 and Altivar Machine ATV ATV340. Product rangeAltivarProduct typeCommunication moduleaccessories / element categoryAccessories communicationProduct compatibilityLexium 32Mrange compatibilityAltivar 32Altivar Machine ATV320Altivar Machine ATV340 except Sercos driveLexium 32Altivar Process ModularAltivar Process ATV900Altivar Process ATV600port communication protocolCANopen, CANmotionelectrical connection 2 RJ45 connectors

Read more less

Schneider-Electric modular 18A RMS PEAK 3PH 480V LXM32MD18N4 The Lexium 32 servo drive operates at a nominal supply voltage of 208 Vac to 480 Vac. It can power 3 phase BMH or BSH synchronous motors, its continuous output current is 6 A at 8 kHz. The compact size of the servo drive and associated servo motor provides maximum power in minimal space. PresentationProduct rangeLexium 32Product typeMotion servo driveDevice nameLXM32Mvariator formatBooknumber of phases of the networkThree-phaseNominal supply voltage [Us]200...240 V - 15...10 %380. ..480 V - 15...10 %power supply voltage limits170…264 V323…528 Vpower frequency50/60 Hz - 5...5 %Mains frequency47.5...63 HzEMC filterIntegratedcontinuous output current6 A at 8 kHzpeak current output 3s18 A at 208 V for 5 s18 A at 480 V for 5 sMaximum continuous power1700 W at 208 V 3300 W at 400 V3300 W at 480 VRated power supply1.2 kW at 208 V 8 kHz1.8 kW at 400 V 8 kHz1.8 kW at 480 V 8 kHzline current6 A 78 % at 208 V, with external line choke of 1 mH6.9 A 90 % at 400 V, with choke external line choke of 1 mH6 A 98 % at 480 V, with external line choke of 1 mH6.2 A 140 % at 208 V, without line choke5.2 A 161 % at 400 V, without line choke4.5 A 165 % at 480 V, without line chokeTechnical characteristicsswitching frequency 8 kHzovervoltage category IIImaximum leakage current 30 mAoutput voltageelectrical isolationBetween power and controlcable typeIEC cable single stranded 50 °C) copper 90 °C XLPE/EPRelectrical connectionTerminal, clamping capacity: 3 mm², AWG 12 (CN8)Terminal, clamping capacity: 5 mm², AWG 10 (CN1)Terminal, capacity tightening torque: 5 mm², AWG 10 (CN10)tightening torque0.5 Nm CN8:0.7 Nm CN1:0.7 Nm CN10:number of digital inputs 2 Acquisition of discrete inputs2 security of discrete inputs4 logic of discrete inputstype of digital inputAcquisition (CAP terminals)Logic (DI terminals)Safety (compliment of STO_A, compliment of STO_B terminals)

Read more less

Schneider-Electric Ethernet TCP/IP module ATV32/LXM32 VW3A3616 The Schneider Electric Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. This communication module allows the integration of the drive into the Ethernet TCP/IP process control network. PresentationProduct rangeAltivarProduct typeCommunication moduleaccessories / element category Communication accessoriesTechnical characteristicsProduct compatibilityLexium 32Mrange compatibilityAltivar Machine ATV320Altivar 32Lexium 32Port communication protocolModbus TCPEthernet/IPElectrical connection1 RJ45 connector, Ethernet/IP1 RJ45 connector, Modbus TCP baud rate10/100 MbpsAddressingIP addressing manual, BOOTP or DHCPexchange modeHalf duplex and full duplex Communication serviceUp to 8 connections (includes connections of Modbus TCP/Ethernet IP) for Ethernet IP/Modbus TCPFDR Agent for Ethernet IP/Modbus TCPRead holding registers ( 03), 63 words max for Modbus TCPRead input registers (04), 63 words max for Modbus TCPWrite single register (06) for Modbus TCPWrite multiple registers (16), 63 words max for Modbus TCPRead/write multiple registers (23) for Modbus TCPRead device identification (43) for Modbus TCPDiagnostics (08) for Modbus TCPI/O scanner : read/ write, 6 words maximum for Modbus TCPCommunication control for Modbus TCPSNMP agent for Ethernet IPMaster/Slave hierarchy ODVA AC drive profile and CiA 402 profile for Ethernet IPFixed communication monitoring adjusted by Ethernet IP scanner adapter (Master) for Ethernet IP
