LOGIC MODULES

FINDER OPTA PLC PROGRAMMABLE LOGIC RELAY SERIES 8A - ADVANCED - 8A0490248320 OPTA is the evocative name of a new complete range of INDUSTRIAL SMART RELAYS or PROGRAMMABLE LOGIC RELAYS, perfect for easily creating multiple applications in industrial automation, OEM and building automation. These devices are freely programmable with both traditional IEC61131-3 languages (Ladder, FBD, etc.) and the Arduino IDE open source language. Built in ITALY by Finder, they combine the industrial experience of the brand with the technological innovation of Arduino, for a truly unique product on the market. Advanced version USB port RJ45 port for ETH and Modbus TCP/IP Modbus RS485 port Wi-Fi/BLE internal module The partnership with Arduino Pro allows us to integrate the open source platform of the brand and the simplicity of programming of Arduino sketches, without however giving up the traditional language suite  with reference to the IEC 61131-3 standard for PLC programming, such as LADDER, FBD, etc. Choose whether to download the Arduino IDE open source software in its most updated version, whether to use the online web editor or whether to download the development environment for programming with IEC61131-3 languages ​​(LD, FBD, ST, IL, SFC). ApplicationsControl panels, distributionPackaging machinesWater and liquid control managementPump control panelsAir conditionersBuilding automationForced ventilation

Read more less

Finder PLC programmable logic -opta plus verses 8A0490248310 Programmable Logic Relay (PLR) with 8 inputs and 4 outputs. Programmable both with traditional languages ​​(Ladder, FBD, etc.) and with an innovative and open source language (IDE /ARDUINO). Equipped with USB (Type-C port) for programming, data logging and power supply during programming. Available in Lite, Plus, Advanced versions. Opta - Programmable Logic Relay, PLR, 4 outputs, 10 A, DC power supply type, nominal supply voltage 24 V, operation from 10.2 to 27.6 V, Number of inputs: 8 digital/analog inputs, NO contacts (SPST ) - EMR, PLUS version, Modbus RS485, RJ45 and USB port (type C port), ambient temperature from -20 to +55 °C Technical characteristics:DC operating range: 10.2...27.6 VContact configuration: 4 NOConnect: PLUS version, Modbus RS485, RJ45 and USB port (type C port)Nominal contact current: 10 ADimensions: 70x84x56.8 mmProgramming languages: Arduino via IDE, as option IEC-61131-3 (LD - SFC - FBD - ST - IL)Nominal voltage: 24 VAmbient temperature: -20...55 °CNominal contact voltage: 250 V ACType of power supply: DC type of power supply

Read more less

Schneider Electric SR3B261JDThe Zelio Logic SR3 compact / programmable controller from Schneider Electric uses a supply voltage of 12 V DC, has 26 inputs/outputs with screw terminals. It has a built-in clock and an LCD display. This compact programmable logic module is ideal for managing, remote controlling or monitoring simple automation systems. It is suitable for both industrial and commercial applications. It features a compact form factor that allows for DIN rail installation. It also offers simple programming, viewing and diagnostic functions for display and navigation button malfunctions.

Read more less

Schneider Electric SR3B261BThe Zelio Logic SR3 compact intelligent programmable controller / module from Schneider Electric uses a supply voltage of 24 V AC, has 24 inputs/outputs with screw terminals. It has a built-in clock and an LCD display. This compact programmable logic module is ideal for managing, remote controlling or monitoring simple automation systems. It is suitable for both industrial and commercial applications. It features a compact form factor that allows for DIN rail installation. It also offers simple programming, viewing and diagnostic functions for display and navigation button malfunctions.

Read more less

Siemens 6ED1052-2MD08-0BA1 LOGO! 12/24RCEO, logical module, PS/I/O: 12/DC 24 V/relay, 8 DI (4 AI)/4 DO, without display, memory 400 blocks, modularity and expandability Ethernet, integrated Web Server, data logging, customizable web pages, standard microSD card for LOGO! SOFT Comfort from V8.3, previous projects executable, cloud connection in all LOGO! 8.3 basic devices. The LOGO! 8 basic devices with 8 digital inputs and 4 digital outputs and their reduced installation width of only 72 mm, have many well-known functions (current pulse relay, staircase lighting automation, auxiliary relay, timer relay, etc.) already integrated and freely combinable with each other. Command programs are easily realizable and simulable on PC. The respective integrated Ethernet interface allows communication with up to nine LOGO! 8 modules or SIMATIC S7 systems. With the integrated Web Server, users connected can be monitored and controlled via WLAN or Internet. The user can configure the web pages themselves, even without knowledge of HTML language. Through additional modules, GSM or GPS communication can be realized as well as integration into a building control system. The LOGO! 8 basic modules are available with and without display for different input voltages as well as with transistor or relay outputs (up to 10 A nominal). Expandable with additional modules up to 24 DI / 20 DQ (8 AI / 8 AQ). Integrated cloud communication. LOGO! 8 can also be expanded with an external Text Display for significant notifications with clear text. The color of the backlight is selectable for optical highlights. Various LOGO! Power Modules for power supply are also available.

Read more less

Siemens 6ED10522HB080BA1LOGO! 24RCEO (AC), logic module, PS/I/O: DC 24V/AC 24V/relay, 8 DI/4 DO, without display, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, web pages custom, standard microSD card for LOGO! SOFT Comfort from V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3 The LOGO! basic devices 8 with 8 digital inputs and 4 digital outputs and their reduced installation width of only 72 mm, have many well-known functions (current impulse relay, staircase light automation, auxiliary contactor, time relay, etc.) already integrated and freely combinable with each other. The control programs are easily created and simulated on a PC. The respective integrated Ethernet interface enables communication with up to nine LOGO! modules. 8 or SIMATIC S7 systems. With the Web Server, also integrated, the connected users can be monitored and controlled via WLAN or Internet. The user himself can configure web pages, even if he has no knowledge of HTML. Using additional modules, GSM or GPS communication can be implemented as well as integration into a building control system. The LOGO! basic modules 8 are available with and without display for different input voltages as well as with transistor or relay outputs (up to 10 A nominal). Expandable with additional modules up to 24 DI / 20 DQ (8 AI / 8 AQ). Integrated cloud communication. LOGO! 8 can also be expanded with an external Text Display for significant messages in plain text. The backlight color is selectable for optical highlights. Different LOGOs are also available! Power Module for power supply.

Read more less

Finder PLC Opta programmable logic relay (PLR) 8A0490248300 OPTA is a PLC and Programmable Logic Relay (PLR) with 8 inputs and 4 outputs. Programmable both with traditional languages ​​(Ladder, FBD, etc.) and with an innovative and open source language (IDE /ARDUINO). Equipped with USB (Type-C port) for programming, data logging and power supply during programming. – Lite version with USB (Type-C port), ETH Technical data: Contact configuration: 4 NO Rated current/Max instantaneous current A: 10/15Rated voltage/Max switching voltage V AC: 250/400 Rated load in AC1 VA: 2500Rated load in AC15 (230 V AC) VA: 500Breaking capacity in DC1: 24/110/220 V A 10/0.3/0.12Minimum load switchable mW(V/mA): 300 (5/5) Contact opening/closing time ms: 6/4Standard contact material: AgNi Rated voltage (UN) V DC:  12…24Rated power W: 0.6 …2.2 (depending on the type)Operating range V DC: 10.2…27.6

Read more less

SIEMENS LOGO! 24RCE 6ED10521HB080BA1  LOGO! 24RCE, logic module, PS/I/O display: AC 24 V/DC 24 V/relay, 8 DI/4 DO, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, custom web pages, card standard microSD for LOGO! Soft Comfort as of V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3. DisplayWith display YesMounting typeMounting on 35 mm standard rail, width of 4 units dimensionSupply voltageRated value (DC)● DC 24 V YesPermitted range, lower limit (DC) 20.4 VPermissible range, upper limit (DC) 28.8 VRated value (AC)● AC 24 V YesMains frequency● Range allowed, lower limit 47 Hz● Allowed range, upper limit 63 HzTimeClocks switches● Number 400; Max. 400, depending on function● Power reserve 480 h Digital inputsNumber of inputs 8Digital outputsNumber of outputs 4; RelayShort circuit protection No; requires external protection Relay outputsContact breaking capacity— with inductive load, max. 3 A— with ohmic load, max. 10 AEMCRadio interference emission according to EN 55 011● Limit value class B, for use in zones residentialYes; Radio interference suppression according to EN 55011, limit value class BStandards, approvals, certificatesCE marking YesCSA approval YesUL approval YesApproval FM Yesdeveloped according to IEC 61131 Yesaccording to VDE 0631 YesMarine approval Yes

Read more less

SIEMENS LOGO! 12/24RCE 6ED10521MD080BA1 LOGO! 12/24RCE, logic module, display PS/I/O: 12/DC 24 V/relay, 8DI (4AI)/4DO, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, customized web pages, standard microSD card for LOGO! Soft Comfort as of V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3. DisplayWith display YesMounting typeMounting on 35 mm standard rail, width of 4 units dimensionSupply voltageRated value (DC)● 12 V DC Yes● 24 V DC YesPermitted range, lower limit (DC) 10.8 VAllowable range, upper limit (DC) 28.8 V TimeClock switches● Number 400; Max. 400, depending on function● Power reserve 480 hDigital inputsNumber of inputs 8; of which 4 can be used as analogue (0 ... 10 V)Digital outputsNumber of outputs 4; RelayShort circuit protection No; requires external protectionOutput current● for signal "1" permitted range for 0 ... 55 °C, max. 10 ARelay outputsContact breaking capacity— with inductive load, max. 3 A— with ohmic load, max. 10 AEMCRadio interference emission according to EN 55 011● Limit value class B, for use in residentialareasYes; Radio interference suppression according to EN 55011, limit value class BStandards, approvals, certificatesCE marking YesCSA approval YesUL approval YesApproval FM Yesdeveloped according to IEC 61131 Yesaccording to VDE 0631 YesMarine approval Yes

Read more less

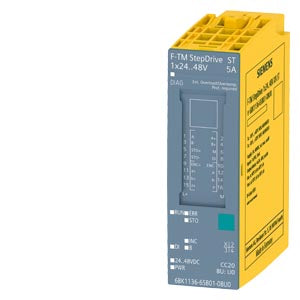

SIMATIC F-TM StepDrive ST, regolatore azionamento per motori passo-passo nel campo della bassissima tensione di protezione, da DC 24 fino a DC 48 V di alimentazione di tensione dell'azionamento, corrente di uscita 5A, per SIMATIC ET 200SP, STO cablato

Read more less

LOGO! 12/24RC, LOGIC MOD., DISPL. PU/I/O: 12/24V DC/RELAY, 8 DI (2AI)/4 DO; MEM 130 BLOCKS EXPANDABLE WITH EXTRA MODULES

Read more less

***Spare part*** SIMOVERT Masterdrives Motion Control adaptation unit for compact and flush-mounted ADB devices
