SIEMENS SIMATIC S7-1500 6ES7531-7KF00-0AB0 AI 8xU/I/RTD/TC ST analog input module, 16 bit resolution, 0.3% accuracy, 8 channels in groups of 8, 4 channels for RTD measurement, common mode voltage 10V; diagnostics; process interrupt; delivery including a power supply element, screen bracket and screen clamp: front connector (screw terminals or push-in) to be ordered separately General information: Product type designation AI 8 x U/I/RTD/TC STHardware version FS04Firmware version V2.0.0● FW update possible Yes Supply voltage Rated value (DC) 24 VAllowable range, lower limit (DC) 19.2 VAllowable range, upper limit (DC) 28.8 VReverse polarity protection Yes Input current Current consumption, max. 240mA; with DC 24 V power supply Power Power draw from backplane bus 0.7 W Power dissipated Power dissipation, typ. 2.7 W

Read more less

SIEMENS SIMATIC S7-1500 6ES7522-1BL01-0AB0 DQ 32xDC 24V/0.5A HF digital output module; 32 channels in groups of 8; 4A for each group; single channel diagnostics; substitute value, operating cycle counter for the connected actuators. The unit supports the safe disconnection of load groups up to SIL2 according to EN IEC 62061:2021 and category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw or push-in terminals) to be ordered separately. General informationProduct type designation: DQ 32x24VDC/0.5A HFHardware version: From FS02Firmware version: V1.1.0Product function● I&M data: Yes; I&M0 ... I&M3● Isochronous operation: Yes● Prioritized startup: YesEngineering with● STEP 7 TIA Portal configurable/integrated from version: V13 SP1 / -● STEP 7 configurable/integrated from version: V5.5 SP3 / -● PROFIBUS from GSD version/GSD revision: V1.0 / V5.1● PROFINET from GSD version/GSD revision: V2.3 / -Operating mode● DQ: Yes● DQ with power saving function: No● PWM: No● Cam control (switching to comparison values): No● Oversampling: No● MSO: Yes● Integrated switching cycle counter: Yes Supply voltage Rated value (DC): 24 VAllowable range, lower limit (DC): 19.2 VAllowable range, upper limit (DC): 28.8 VReverse polarity protection : Yes; by internal protection with 7 A per group Input current Current consumption, max.: 60 mA Power dissipated Power dissipation, typ.: 3.5 W

Read more less

SIEMENS SIMATIC S7-300 6ES7331-7KF02-0AB0 SM 331 analog input module, electrically isolated, 8 AI, resolution 9/12/14 bit, U/I/Thermocouple/Resistor, alarm, diagnostics, 1 x 20-pole disconnection/connection with active backplane bus Supply voltage Load voltage L+● Rated value (DC) 24 V● Reverse polarity protection Yes Input current from load voltage L+ (without load), max. 30 mA from backplane bus 5 V DC, max. 50 mA Power dissipated Power dissipation, typ. 1 W

Read more less

SIEMENS SIMATIC PN/PN 6ES71583AD100XA0 Coupler for deterministic data exchange between max. 4 PNControllers per side, also via router, transmission of PROFIsafe, I/O, MSI,MSO and data set communication, redundant power supplyPN connection via BusAdapter SIMATIC (BA), Supplied without bus adapter. General information Product type designation: PN/PN Coupler Possible FW update: YES Product function ● I&M data: Yes; I&M0 ... I&M3● Isochronous operation: No; possible on isochronous bus● Change tool: Yes; Docking Station and Docking Unit● I/O data local coupling: Yes— Number of coupling modules: 16— Number of coupling submodules per module: 4; 1 x Write, 3 x Read● Dataset local coupling: Yes— Number of coupling modules: 16— Number of coupling submodules per module: 4; 1 x Write, 3 x Read— Record length, max.: 4 096 bytes— FIFO depth in Storage mode: 8 Supply voltage Rated value (DC): 24 VAllowable range, lower limit (DC): 19.2 VAllowable range, upper limit (DC): 28.8 VReverse polarity protection : YesMains and voltage interruption buffering● Mains/voltage interruption buffering time: 10 ms Input current Current consumption, max.: 360 mA; With 19.2 V input voltage at the right power terminals, incl. 2 BA 2x LC insertedInrush current, max.: 1.6 AI²t: 0.031 A²·sFrom supply voltage 1L+, max.: 320 mA; With input voltage 19.2 V at the left power terminals, incl. 2 BA 2x LC inserted Power dissipated Power dissipation, typ:. 4W; With 24 V input voltage and 2 BA 2x RJ45 inserted. If BusAdapters with optical interface are inserted, for each optical interface there is an additional 750 mW (3 W for with 2 BA 2x LC inserted)

Read more less

SIEMENS SIMATIC HMI TP900 6AV21240JC010AX0 Comfort Panel, touch operation, 9" widescreen TFT display, 16 million colours, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11  General information Product type designation: TP900 Comfort Display Display design: TFTScreen diagonal: 9 inDisplay width: 195 mmDisplay height: 117 mmNumber of colours: 16 777 216 Resolution (pixels)● Horizontal image resolution 800 pixels● Vertical image resolution 480 pixels Backlight● MTBF of backlight (at 25 °C) 80 000 h● Backlight dimmable Yes; 0-100 % Mounting typeVertical installation positionDirect / wall mounting NoVertical mounting possible (portrait format) YesHorizontal mounting possible (landscape format) ) YesMaximum inclination angle allowed without forced ventilation 35° Supply voltageType of supply voltage DCRated value (DC) 24 VAllowable range, lower limit (DC) 19.2 VAllowable range, upper limit (DC) 28.8V

Read more less

SIEMENS SIMATIC S7-1200 6ES7231-4HF32-0XB0 Analog input unit, SM 1231, 8 AI, +/-10 V, +/-5 V, +/-2.5V, or 0-20mA/4-20mA, 12 bit + sign or (13 Bit ADC). General informationProduct type designation: SM 1231, AI 8x 13 bit Supply voltage Nominal value (DC): 24 VInput current Typical current consumption: 60 mAfrom the backplane bus DC 5 V, typical: 90 mA Power dissipated Typical power dissipation: 1.5 W

Read more less

SIEMENS SIMATIC S7-1500 6ES7531-7QD00-0AB0 AI 4xU/I/RTD/TC ST analog input module, 16 bit resolution, 0.3% accuracy, 4 channels in groups of 4, 2 channels for RTD measurement, 10V common mode voltage; diagnostics; process interrupt; delivery including a push-in front connector, power supply element, display bracket, and display clamp. General informationProduct type designation: AI 4 x U/I/RTD/TC STHardware version: From FS01Firmware version: V1 .0.0Possible FW update: Yes Supply voltage Rated value (DC): 24 VAllowable range, lower limit (DC): 19.2 VAllowable range, upper limit (DC): 28.8 VReverse polarity protection : YesInput current Current consumption, max: 165 mA Power Active power consumption, typ.: 2.3 W

Read more less

SIEMENS SIMATIC ET 200SP 6ES71556AU010CN0 PROFINET, 2-port interface module IM 155-6PN/2 High Feature, 1 slot for BusAdapter, max. 64 I/O modules and 16 ET 200AL modules, S2 redundancy, multi hot swap, 0.25 ms, isochronous operation, optional PN strain relief, incl. server module. General informationProduct type designation: IM 155-6 PN/2 HFHardware version: From FS02Firmware version: V4.2● Possible FW update: Yes Supply voltage Rated value (DC): 24 VAllowable range, lower limit (DC): 19.2 VAllowable range, upper limit (DC): 28.8 VReverse polarity protection : Yes Short circuit protection: YES Input current Current consumption, max.: 700 mAInrush current, max.: 4.5 AI²t: 0.25 A²·s   Power dissipated Power dissipation, typ.: 2.4 W

Read more less

SIEMENS SIMATIC S7-1200 6ES72231BL320XB0 Digital I/O SM 1223, 16DI/16DO, 16DI DC 24V, Sink/Source, 16DO, Transistor 0.5A . General informationProduct type designation: SM 1223, DI 16x24 VDC, DQ 16x24 VDC Supply voltage Rated value (DC): 24 V Allowable range, lower limit (DC): 19.2 V Allowable range, upper limit (DC): 28.8 V Input current from backplane bus DC 5 V, max..: 185 mADigital inputs from load voltage L+ (without load), max.: 4 but; per channel Power Active power absorbed, tip: 4.5 W

Read more less

*** pezzo di ricambio *** SIMATIC DP, modulo terminale TM-P15S23-A1 per ET 200S per Power Module, larghezza costruttiva 15mm, morsetti a vite 2x3 connessioni a morsetto con accesso a morsetti su AUX1, AUX1 ininterrotto

Read more less

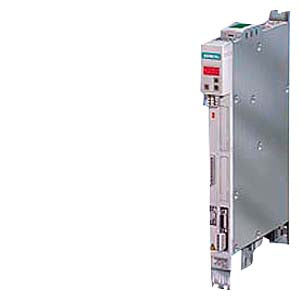

***Parte di ricambio*** SIMOVERT Masterdrive Motion Control Inverter Apparecchio compatto plus, IP20 DC 510 ... 650 V, 25,5A potenza tipica: 11kW Documentazione su CD-ROM

Read more less

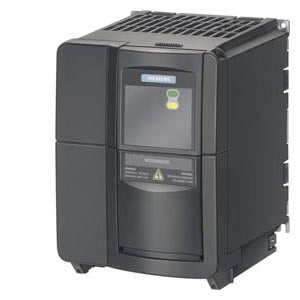

**pezzo di ricambio** MICROMASTER 420 senza filtro 3AC 380 ... 480 V +10/-10 % 47 ... 63 Hz coppia costante 4 kW sovraccarico 150 % per 60s coppia quadratica 4 kW 202x 149x 172 (AxLaxP) grado di protezione IP20 temperatura ambiente -10+50°C senza AOP/BOP

Read more less

***parte di ricambio*** SIMODRIVE 611 modulo di sorveglianza custodia universale per profondità 211/288mm

Read more less

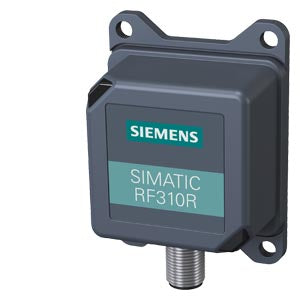

SIMATIC RF300; reader RF310R (GEN2) con interfaccia RS422 (3964R); IP67, -25 fino a +70 °C, 55x 75x 30mm, con antenna integrata; variante speciale con rotazione della piastra di base (90°).

Read more less

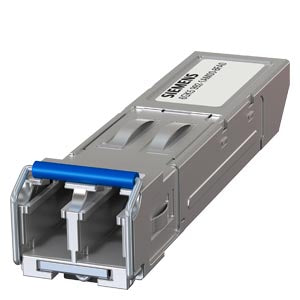

accessori SCALANCE X; transceiver a innesto SFP992-1LD; 1x porta LC 1000 Mbit/s; con Conformal Coating; ottica; Singlemode in vetro fino a max. 10 km .

Read more less

accessori SCALANCE X; transceiver a innesto SFP992-1+; 1x porta LC da 1000 Mbit/s, ottica; Multimode vetro fino a max. 2000 m.

Read more less

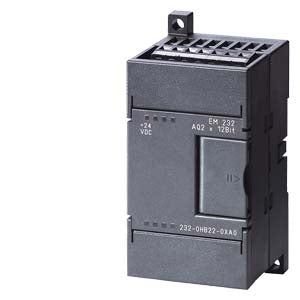

*** pezzo di ricambio *** SIMATIC S7-200, unità di uscite analogiche EM 232, solo per CPU S7-22X, 4 AO, +/-DC 10 V, 0..20mA convertitore 12/11 bit

Read more less

***parte di ricambio*** SIMATIC DP, morsetto aggiuntivo 2-reihig, 16 canali per ET 200L a molla

Read more less

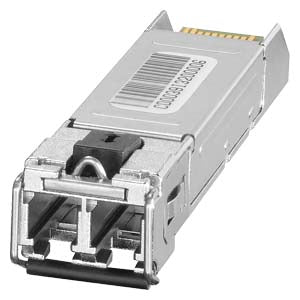

accessori SCALANCE X; SFP991-1LD; 1x porta LC da 100 Mbit/s, ottica; Singlemode in vetro fino a max. 26 km.

Read more less

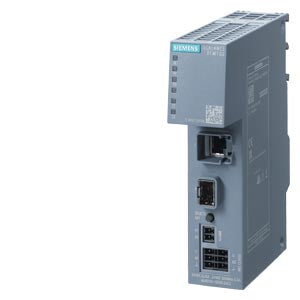

SCALANCE XCM102, IE Media Converter unmanaged 1x porta RJ45 da 100/1000 Mbit/s, 1x porta SFP da 100/1000 Mbit/s, diagnostica LED, contatto di segnalazione errore con tasto SET, alimentazione di tensione ridondante, collare di ritenzione, manuale disponibile come download .

Read more less

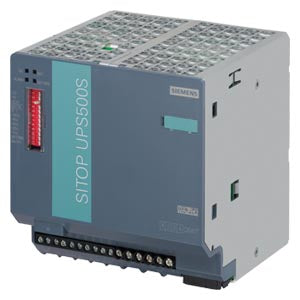

SITOP UPS500S esente da manutenzione alimentatore di continuità con interfaccia USB apparecchio base 5 kWs ingresso: DC 24 V uscita: DC 24 V/15 A grado di protezione IP20
