Finder Opta PLC programmable logic relay (PLR) 8A0490248300 OPTA is a Programmable Logic Relay (PLR) with 8 inputs and 4 outputs. Programmable both with traditional languages ​​(Ladder, FBD, etc.) and with an innovative and open source language (IDE /ARDUINO). Equipped with USB (Type-C port) for programming, data logging and power supply during programming. – Lite version with USB (Type-C port), ETH Technical data: Contact configuration: 4 NO Rated current/Max instantaneous current A: 10/15Rated voltage/Max switching voltage V AC: 250/400 Rated load in AC1 VA: 2500Rated load in AC15 (230 V AC) VA: 500Breaking capacity in DC1: 24/110/220 V A 10/0.3/0.12Minimum load switchable mW(V/mA): 300 (5/5) Contact opening/closing time ms: 6/4Standard contact material: AgNi Rated voltage (UN) V DC:  12…24Rated power W: 0.6…2.2 (depending on the type )Operating range V DC: 10.2…27.6

Read more less

Finder industrial mini relay 16A 466180240040 The type 46.61 of Finder is an industrial power mini relay that allows mounting on a socket or direct connection via Faston. Features: 1 exchange 16 A Plug-in terminals/Faston 187 Available with: lockable test button, mechanical indicator and LED 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts Cadmium-free contacts Series 99 EMC signaling and protection modules and 86.30 type timer modules Alternative mounting adapters available Technical data: Type of electrical connection: ConnectorComplete with socket: noWith removable terminals: no Rated control voltage Us 50Hz AC: 24...24 VRated control voltage Us 60Hz AC: 24...24 VType voltage for the drive: AC Drive polarity: Non-polarizedSwitching type: Monostable Number of NC contacts: 0Number of NO contacts: 0Number of changeover contacts: 1Type of changeover contacts: Single contactWith forced actuation contacts: no Rated current: 16 A

Read more less

Finder Industrial mini relay 8 - 16 A 466182300040 Mini industrial relay, 1 exchange 16A, with plug-in/Faston 187 terminals. Equipped with AC or DC coil. Available with: lockable test button and mechanical and LED indicator. With Cadmium-free contacts. European patent Technical description: Mini industrial relay, Plug-in terminals/Faston terminals, 1 contact, CO, 16 A, AgNi, AC coil, 230 V, operation from 184 to 253 V, power nominal 1.2 VA, resistance 28000 Ω, consumption 5 mA, holding voltage 184 V, release voltage 46 V, variant: Test button + mechanical indicator, ambient temperature -40 to +70 °C

Read more less

Finder Industrial mini relay 8 - 16 A 466180120040 Mini industrial relay, 1 exchange 16A, with plug-in/Faston 187 terminals. Equipped with AC or DC coil. Available with: lockable test button and mechanical and LED indicator. With Cadmium-free contacts. European patent. Technical description: Mini industrial relay, Plug-in terminals/Faston terminals, 1 contact, CO, 16 A, AgNi, AC coil, 12 V, operation from 9.6 to 13.2 V, power nominal 1.2 VA, resistance 80 Ω, consumption 90 mA, holding voltage 9.6 V, release voltage 2.4 V, variant: Test button + mechanical indicator, ambient temperature -40 to +70 °C

Read more less

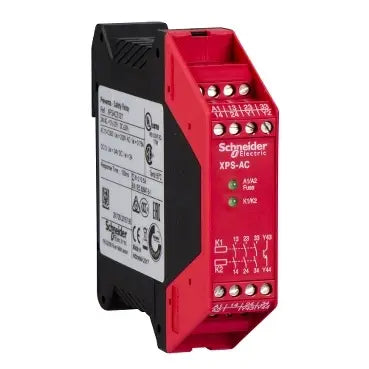

Schneider-Electric XPS-AC Module - Emergency Stop XPSAC5121  The XPSAC safety module Schneider Electric controls the emergency stop buttons and limit switches. 24 VAC/DC power supply, has 3 safety circuits, 1 solid state output and captive screw terminal blocks. PresentationProduct rangePreventa safety automation Product typePreventa safety modulesafety module nameXPSACsafety module applicationFor emergency stop and control switching Module functionEmergency stopSwitch monitoring Safety levelCan reach PL e/category 4 compliant with EN/ISO 13849-1Can reach SILCL 3 compliant with EN/IEC 62061Safety reliability dataMTTFd = 210.4 years conforming to EN/ISO 13849-1DC > 99 % conforming to EN/ISO 13849-1PFHd = 3.56E-9 1/h compliant with EN/IEC 62061 Type of startingNot monitoredconnections - terminalsCaptive screw terminals, 1 x 0.14...1 x 2.5 mm² flexible without cable endCaptive screw terminals, 1 x 0.14...1 x 2.5 mm² solid without cable endCaptive screw terminals, 1 x 0.25...1 x 1 .5 mm² flexible with cable end, with bezelStud terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezelStud terminals, 2 x 0 ,14,,2 x 0.75 mm² flexible without cable endCaptive screw terminals, 2 x 0.14,,2 x 0.75 mm² solid without cable endCaptive screw terminals, 2 x 0 ,25...2 x 1 mm² flexible with cable end, without bezelCaptive screw terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezeltype outputInstant relay opening, 3 NO circuits, potential-freenumber of additional circuits1 static output Rated supply voltage [Us]24 V AC - 20...10 %24 V DC - 20...20 % Technical characteristicspower frequency50/60 Hzabsorbed power in W1.2 W DCabsorbed power in VA2.5 VA ACcontrol voltage [Uc]24 Vbreaking capacity180 VA waiting AC-15 C300 relay output1800 VA peak AC -15 C300 relay outputbreaking capacity1.5 A at 24 V time constant: 50 ms (DC-13) per relay outputoutput thermal current6 A per relay per output relayConventional thermal current in air [Ith]10.5 A Associated fuse rating4 A gG or gL for relay output compliant with EN/IEC 60947-5-1, DIN VDE 0660 part 2006 A tripping for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200minimum output current10 mA for relay outputminimum output voltage16 V for relay outputmaximum input response time100 msRated insulation voltage [Ui]300 V (pollution degree 2) conforming to IEC 60947-5-1300 V (pollution degree 2) conforming to DIN VDE 0110 part 1Rated impulse withstand voltage [Uimp]4 kV overvoltage category III conforming to IEC 60947-5-14 kV overvoltage category III conforming to DIN VDE 0110 part 1local signaling2 LED Current draw40 mA at 24 V DC on the power supply90 mA at 24 V AC on the power supplyInstallation35 mm symmetrical DIN railproduct weight0.16 kg

Read more less

Schneider Electric MX release - 208..277V 60 Hz, 220..240V 50/60 Hz LV429387 MX shunt coil for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. The nominal voltage is between 220 and 240 Vac at 50/60 Hz, or between 208 and 277 Vac at 60 Hz. PresentationRangeComPacTProduct range"ComPact NSX100...250""ComPacT NSX100. ..250 new generation""ComPact NSX400...630""ComPacT NSX400...630 new generation""ComPact NSX100...250 DC""ComPacT NSX100...250 DC new generation"ComPact NSX100 ...250 DC PV"ComPacT NSX100...250 DC PV new generation""ComPact NSX400...630 DC""ComPacT NSX400...630 DC new generation"ComPact NSX400...630 DC PV"ComPacT NSX400...630 DC PV new generation"Device nameMXProduct typeRelease coilApplicationControlvoltage release typeOpening coilOpening coil releaseControl voltage [Uc]220...240 V AC 50/60 Hz208...277 V AC 60 HzRange compatibility"ComPacT new generation" "ComPacT NSX new generation""ComPacT new generation" "ComPacT NSX DC new generation"Compact Compact NSXCompact ComPact NSX DCEasypact "EasyPact CVS"PowerPact PowerPact MultistandardTechnical specificationsOperating threshold0.7...1.1 One openingresponse time50 mscontrol signal typePulseMaintainedpulse duration>= 20 msinrush voltage power supply10 VAAuxiliary terminal blockSpring 0.5…1.5 mm² (AWG 20...AWG 16)wire stripping length7 mm

Read more less

Siemens Simatic ET 200SP HA, Analogue input module 6DL11346JH000PH1 SIMATIC ET 200SP HA, Analog input module, AI 16XTC/8XRTD 2-/3-/4-Wire HA, suitable for Terminal Block H1, M1, Color code CC00, channel diagnostics, 16bit , +/-0.05%, 2-/3-/4-Wire Technical data General informationProduct type designation AI 16 x TC/8xRTD 2-/3-/4-wire HAFirmware version V1.1● Possible FW update YesTerminal block usable terminal block type H1, M1, P0 and N0Color code for module-specificcolor coding plateCC00 Product function● I&M data Yes; I&M0 ... I&M3 Engineering with● STEP 7 TIA Portal configurable/integrated from version V16● STEP 7 configurable/integrated from version V5.6● PCS 7 configurable/integrated by version V9.0● PCS neo configurable/integrated from version V3.0● PROFINET from version GSD/GSD revision GSDML V2.3 Redundancy● Redundancy capabilities Yes; with type TB M1 CiR - Configuration in RUNReparameterization in RUN possible Yes Supply voltageRated value (DC) 24 VAllowable range, lower limit (DC) 19.2 VAllowable range, upper limit (DC ) 28.8 VReverse polarity protection Yes Input currentCurrent consumption (nominal value) 75 mACurrent consumption, max. 100 mA Power dissipationPower dissipation, typ. 1.8 W Address spaceAddress space per module● Address space per module, max. 64 bytes; + 2 bytes for IQ information Analog inputsNumber of analog inputs● for voltage measurement 16● for measurement with resistance/thermoresistance 8● for measurement with thermocouple 16Allowed input voltage per input in voltage (destructive limit), max.5 VConstant measuring current for resistive transducers, typ. 2 mA

Read more less

SIEMENS LOGO! 12/24RCE 6ED10521MD080BA1 LOGO! 12/24RCE, logic module, display PS/I/O: 12/DC 24 V/relay, 8DI (4AI)/4DO, 400 block memory, Ethernet modularity and expandability, integrated Web Server, data log, customized web pages, standard microSD card for LOGO! Soft Comfort as of V8.3, previous projects executable, cloud connection in all LOGO! basic devices 8.3. DisplayWith display YesMounting typeMounting on 35 mm standard rail, width of 4 units dimensionSupply voltageRated value (DC)● 12 V DC Yes● 24 V DC YesPermitted range, lower limit (DC) 10.8 VAllowable range, upper limit (DC) 28.8 V TimeClock switches● Number 400; Max. 400, depending on function● Power reserve 480 hDigital inputsNumber of inputs 8; of which 4 can be used as analogue (0 ... 10 V)Digital outputsNumber of outputs 4; RelayShort circuit protection No; requires external protectionOutput current● for signal "1" permitted range for 0 ... 55 °C, max. 10 ARelay outputsContact breaking capacity— with inductive load, max. 3 A— with ohmic load, max. 10 AEMCRadio interference emission according to EN 55 011● Limit value class B, for use in residentialareasYes; Radio interference suppression according to EN 55011, limit value class BStandards, approvals, certificatesCE marking YesCSA approval YesUL approval YesApproval FM Yesdeveloped according to IEC 61131 Yesaccording to VDE 0631 YesMarine approval Yes

Read more less

FINDER MODULAR MULTIFUNCTION TIMER 12/240V 16A 800102400000 Multifunction & multivoltage modular timer Number of contacts: 1 CO Contact material: AgNi (A): 16 Power supply: AC/DC Volt AC: 240 V. Volt DC: 240 V. suitable for front mounting: no with plug-in base: no remote control possible: no only suitable for remote control: no flashing function with initial pause, fixed time: no flashing function with initial pulse, fixed time: no with semiconductor output: yes ON-delayed function: yes pass-through function with ON delay: yes star/delta function: no time range: from 0.1 to 86400 s. OFF-delayed function: yes Pass-through function with OFF-delay: yes Electrical connection: screw connection suitable for mounting on top rail: yes Degree of protection: IP20. Type 80.01T modular timer, multivoltage and multifunction, with screw terminals. Functions: AI: On delay DI: Interval SW: Symmetrical flasher start ON BE: Switch-off delay with control signal CE: On and off delay with control signal DE: Instantaneous interval with command signal Features: Compliant with standards EN 45545-2 +A1:2016 (protection against fire and smoke), EN 61373 (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and humidity, class T1) Width 17.5 mm Six time scales from 0.1 s to 24 h High input/output isolation “Blade + cross” casing with regulator, rotary function selectors and time scales, 35 mm bar hook which can be operated with both slotted and Phillips screwdrivers New multivoltage versions with “PWM clever” technology Mounting on 35 mm rail (EN 60715) ApplicationsDoor controlInfotainment message panelsManeuvering desks

Read more less

FINDER SWITCHING POWER SUPPLY FOR OPTA 781212302482 Switching power supply power absorption: 28.2 VA. suitable for series installation: yes suitable for safety functions: no width in subdivision units: 1 type of supply voltage: AC/DC power output: 12 W. regulated output voltage: yes Electrical connection: screw connection mounting on carrier rail possible: yes wall mounting possible: no stabilized: yes 1st output voltage: 24 V. adjustable output voltage: no nominal supply voltage for AC 50 Hz: 110 to 240 V. nominal supply voltage for DC: 220 V. short-circuit proof: yes performance level according to EN ISO 13849-1: without max. output current 1: 0.63 A. rated value output voltage 1: 24 V. rated value output current 1: 0.5 A. SIL according to IEC 61508: without Degree of protection: IP20 Features: Low power consumption in stand-by ( Internal thermal protection, with output shutdown Short circuit protection: Hiccup mode (automatic recovery) Overvoltage protection: Varistor Flyback circuit type Complies with EN 60950-1 and EN 61204-3 standards Parallel connection for automatic redundancy: with OR-IN diode Dual and series connection Suitable for mounting on 35 mm rail (EN 60715) Versions also available:-78.12….1200 with 12 V DC output. 12 W, for general applications with 12 V DC loads-78.12….2402 with 24 V DC output, 12 W, SELV, LED Modular driver with 24 V DC output   ApplicationsBuilding automationElevators - liftsAutomation of awnings, shutters, roller shuttersCranesControl panels, distributionPump control panels

Read more less

FINDER SWITCHING POWER SUPPLY 12W 24VDC (0.5A) 781212302400 Switching power supply power absorption: 28.2 VA. suitable for series installation: yes suitable for safety functions: no width in subdivision units: 1 type of supply voltage: AC/DC power output: 12 W. regulated output voltage: yes Electrical connection: screw connection mounting on carrier rail possible: yes wall mounting possible: no stabilized: yes 1st output voltage: 24 V. adjustable output voltage: no nominal supply voltage for AC 50 Hz: 110 to 240 V. nominal supply voltage for DC: 220 V. short-circuit proof: yes performance level according to EN ISO 13849-1: without max. output current 1: 0.63 A. rated value output voltage 1: 24 V. rated value output current 1: 0.5 A. SIL according to IEC 61508: without Degree of protection: IP20 Features: Low power consumption in stand-by ( Internal thermal protection, with output shutdown Short circuit protection: Hiccup mode (automatic recovery) Overvoltage protection: Varistor Flyback circuit type Complies with EN 60950-1 and EN 61204-3 standards Parallel connection for automatic redundancy: with OR-IN diode Dual and series connection Suitable for mounting on 35 mm rail (EN 60715) Versions also available:-78.12….1200 with 12 V DC output. 12 W, for general applications with 12 V DC loads-78.12….2402 with 24 V DC output, 12 W, SELV, LED Modular driver with 24 V DC output   Applications Building automation Elevators - lifts Automation of awnings, shutters, roller shutters Crane Control panels, distribution Pump control panels

Read more less

FINDER TYPE 40.52 - MINI RELAY FOR PRINTED CIRCUIT 2 changeover contacts for printed circuit and plug-in coil 12V DC contact capacity 8A 405290120000 The Type 40.52 mini relay is a Series 95 socket-mounted printed circuit relay. Equipped with 2 8 A exchanges on printed circuit, 5.0 mm pitch, it is a versatile device suitable for multiple applications such as control panels, control and distribution panels, electronic cards, door and gate opening and much more. Features: Terminal length 3.5 mm for PCB mounting Terminal length 5.3 mm for plug-in relay DC coil (650 mW or 500 mW) Variant with Cadmium-free contacts 8 mm, 6 kV (1.2/50µs) insulation between coil and contacts Compliance with the Glowe wire test according to EN 60335-1 95 series sockets for printed circuit, or for mounting on 35 mm rail (EN 60715) with Push-in, screw or spring terminals Series 99 EMC signaling and protection modules and 86.30 type timer modules Protection category:• RT II – flux proof (Standard)• RT III – washable (Special version) ApplicationsElectromedical, dentistryControl panelsControl panels, distributionToysAutomation of awnings, shutters, shuttersOpening doors and gates Electronic cardsVending machines

Read more less

Finder Mini PCB relay PCB/plug 405280240000 The Type 40.52 mini relay is a Series 95 socket-mounted printed circuit relay. Equipped with 2 8 A exchanges on printed circuit, 5.0 mm pitch, it is a versatile device suitable for multiple applications such as control panels, control and distribution panels, electronic cards, door and gate opening and much more. FEATURES Number of exchange contacts: 2Rated current: 8 ARated control voltage Us 50Hz AC: 24...24 VWith forced actuation contacts: noType of electrical connection: PCB connection (printed circuit board)With removable terminals: noRated control voltage Us 60Hz AC: 24...24 VType of voltage for the drive: ACPolarity of the drive: Non-polarisedType of switching: MonostableNumber of NC contacts: 0Number of NO contacts: 0Type of switching contacts: Single contactComplete with socket: noWidth: 12.4 mmHeight: 25 mmDepth: 29 mm ApplicationsElectromedical, dentistryControl panelsControl panels, distributionToysAutomation of awnings, shutters, roller shuttersOpening doors and gatesElectronic cardsAutomatic dispensers

Read more less

FINDER OPTA PLC PROGRAMMABLE LOGIC RELAY SERIES 8A - ADVANCED - 8A0490248320 OPTA is the evocative name of a new complete range of INDUSTRIAL SMART RELAYS or PROGRAMMABLE LOGIC RELAYS, perfect for easily creating multiple applications in industrial automation, OEM and building automation. These devices are freely programmable with both traditional IEC61131-3 languages (Ladder, FBD, etc.) and the Arduino IDE open source language. Built in ITALY by Finder, they combine the industrial experience of the brand with the technological innovation of Arduino, for a truly unique product on the market. Advanced version USB port RJ45 port for ETH and Modbus TCP/IP Modbus RS485 port Wi-Fi/BLE internal module The partnership with Arduino Pro allows us to integrate the open source platform of the brand and the simplicity of programming of Arduino sketches, without however giving up the traditional language suite  with reference to the IEC 61131-3 standard for PLC programming, such as LADDER, FBD, etc. Choose whether to download the Arduino IDE open source software in its most updated version, whether to use the online web editor or whether to download the development environment for programming with IEC61131-3 languages ​​(LD, FBD, ST, IL, SFC). ApplicationsControl panels, distributionPackaging machinesWater and liquid control managementPump control panelsAir conditionersBuilding automationForced ventilation

Read more less

Siemens 6DL11316DF000PK0 SIMATIC ET 200SP HA, Digital input module, DI 8X24 ... 125VDC HA suitable for Terminal Block K0, color code CC42, channel diagnostics

Read more less

6DL11936TP000DK0 Siemens SIMATIC ET 200SP HA, terminal block, type K0 16 push-in terminals, load group Technical dataGeneral informationProduct type designation    Type K0Product function● I&M data    Yes; Asset dataSupply voltageRated value (DC)    24 VExternal protection of power cables    Yes; DC 24 V / 10 A (thermal circuit breaker with type B or C tripping characteristic, fast-acting equipment protection fuse with sufficient breaking capacity, electronic fuse with characteristic corresponding to type B or C)Current carrying capacityup at 70 °C, max.    10 A; Permissible load current dependent on the number of terminal blocksfor process terminals, max.    5 AHardware configurationFormation of potential groups● support of potential groups    Yes● New potential group potential    Yes● Potential group continued from left    NoSlot● Number of slots    1Potential isolationbetween backplane bus and supply voltage    Yes; DC 4 200 V/1 min, Type Testbetween potential groups (Powerbus)    Yes; DC 1 500 V/1 min, Type Test (SELV / PELV for functional earth FE)between process terminals and supply voltage    Yes; DC 4 200 V/1 min, Type TestAmbient conditionsAmbient temperature in operation● Horizontal mounting position, min.    -40 °C● Horizontal mounting position, max.    70 °C● Vertical mounting position, min.    -40 °C● Vertical mounting position, max.    60 °CDimensionsWidth    22.5 mmHeight    175 mmDepth    77 mmWeightsWeight, approx.    78 g

Read more less

Phoenix Contact 2866763 Power supply switching QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input:  1  phase, output: 24 V  DC / 10A Technical data  Input data  AC Operation  Input voltage range 100 V AC ... 240 V AC -15 % / +10 %  Input voltage range 85 V AC ... 264 V AC  Derating IStat. Boost < 100 V AC (1 %/V)  DC input voltage range 110 V DC ... 350 V DC (typ. 90 V DC (UL 508: ≤ 300 V DC))  Max. voltage resistance 300 V AC  120 V AC Typical national mains voltage  230V AC  AC supply voltage voltage type  Inrush current < 15 A  Integral of the peak inrush current (I2t) < 1.5 A2s  Inrush current pulse limitation 15 A  Frequency range AC 45 Hz ... 65 Hz  Frequency range DC 0 Hz  > 36 ms (120 V AC) Mains failure coverage time  > 36 ms (230 V AC)  4 A (100 V AC) Current consumption  1.7A (240VAC)  Rated power consumption 302 VA  Protection circuit Transient overvoltage protection; Varistor,  gas discharger  Power factor (cos phi) 0.85  Typical ignition time < 0.15 s  Input fuse 10 A (delayed, internal)  Permitted prefuse B10 B16 AC:  DC DC pre-fuse permitted: Insert a suitable fuse  Selecting a suitable fuse for input protection 10 A ... 20 A (Characteristic B, C, D, K)  Leakage current to PE < 3.5 mA

Read more less

Siemens 3RK12073BQ400AA3 Compact AS-i module K60 analog 2AI, IP67 2 x inputs, resistor PT100, Ni100, 0..600 ohm for 4-wire sensors 2 x M12 sockets mounting plate 3RK1901-0CA00 to be ordered separately.

Read more less

Siemens 6ES73613CA010AA0 SIMATIC S7-300, IM 361 interface in expansion rack for connection to the central rack (IM360), 24V DC supply voltage, with K-bus

Read more less

ATV930D75N4C | Schneider Electric The Altivar Process ATV900 variable speed drive is capable of powering 3-phase synchronous and asynchronous motors. It is suitable for motors rated up to 75 kW/100 HP for applications requiring light overload (up to 120%). It is suitable for motors rated up to 55 kW/75 HP for applications requiring significant overload (up to 150%). It operates with a nominal supply voltage between 380 and 480 Vac. This variable speed drive/frequency drive (VSD/VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food, drinking water and wastewater. It offers high motor performance on any motor and total control of any type of coupling in master/slave applications. Network services guarantee operational continuity even in the event of connection failure. Web server and data logging helps reduce downtime through rapid troubleshooting and preventative maintenance. Advanced connectivity, including EtherNet/IP and Modbus TCP, enables deep integration into automation architectures.

Read more less

Schneider Electric HMISTU655 3"4 color touch screen panel, installation hole diam. 22mm Separate front screen and rear communication unit, easy to install and replace RS485 host port, ideal for supervising and controlling simple machines and systems Simplified installation with a 22mm diameter hole in the cabinet door Ideal for electrical panel builders, as opening a panel is not necessary Environmentally friendly product performance

Read more less

Schneider Electric GV2RT10 TeSys GV 3-pole (3P) 6.3 A/690 V motor circuit breaker for high starting current peak motor applications 2.2 kW at 400 V. Provides thermal-magnetic protection with a thermal setting range 4.6-3 A, a magnetic trip level at 20 xIn, high breaking capacity Icu 100 kA at 400 V.  Technical data Number of poles 3P Network type CA Category of use Category A compliant with IEC 60947-2 AC-3 compliant with IEC 60947-4-1 AC-3e complies with IEC 60947-4-1 Network frequency 50/60 Hz compliant with IEC 60947-4-1 Fixing type 35mm symmetrical DIN rail: clipped on Panel: screwed (with adapter plate) Engine power in kW 1.1 kW at 220/230 V AC 50/60 Hz motor protection with high peak current 2.2 kW at 400/415 VAC 50/60 Hz motor protection with high peak current 2.2 kW at 440 VAC 50/60 Hz motor protection with high peak current 3 kW at 440 VAC 50/60 Hz motor protection with high peak current 3 kW at 500 VAC 50/60 Hz motor protection with high peak current 4 kW at 690 VAC 50/60 Hz motor protection with high peak current 1.6 kW at 230/240 V AC 50/60 Hz transformer protection 2 kW at 230/240 V AC 50/60 Hz transformer protection 2.5 kW at 400/415 VAC 50/60 Hz transformer protection 2.5 kW at 440 VAC 50/60 Hz transformer protection 4 kW at 440 VAC 50/60 Hz transformer protection 4 kW at 500 V AC 50/60 Hz transformer protection 4 kW at 690 VAC 50/60 Hz transformer protection 5 kW at 690 VAC 50/60 Hz transformer protection 6.3 kW at 690 VAC 50/60 Hz transformer protection Interrupting power 100 kA Icu compliant with IEC 60947-2 at 220/230 V AC 50/60 Hz 100 kA Icu compliant with IEC 60947-2 at 400/415 V AC 50/60 Hz 50 kA Icu compliant with IEC 60947-2 at 440 V AC 50/60 Hz 50 kA Icu compliant with IEC 60947-2 at 500 V AC 50/60 Hz 3 kA Icu compliant with IEC 60947-2 at 690 V AC 50/60 Hz Control type Lever Rated current [In] 6.3 A Thermal protection adjustment range 4…6.3 A conforming to IEC 60947-4-1 Magnetic trip current 138 A

Read more less

Abb 1SFL467001R1111 The AF116 ... AF140 contactors are mainly used for controlling three-phase motors and circuits with power up to 690 V AC, AF146 up to 1000 V AC. These contactors have a block design with 3 main poles/ – control circuit: AC or DC operation with electronic coil interface that accepts a wide range of control voltages. Technical data Number of contacts 3 main NA Number of contacts 0 main NC Number of contacts 1 NA auxiliaries Number of contacts 1 NC auxiliaries Rated Main Circuit Voltage 1000 V operation Rated frequency (f) Main Circuit 50 / 60 Hz

Read more less

Omron E3SDCP21IL2  RGB, HDR, 7-13mm distance, M12 connector, IOLink COM2 notch reader Technical data Number of semiconductor outputs with signaling function 1 Number of contact outputs with signaling function 0 Analog output 0V ... 10V No Analog output 0 mA ... 20 mA No Analog output 4 mA ... 20 mA No Analog output -10 V ... +10 V No Type of electrical connection M12 connector Switching output type PNP Switch function type Programmable / Configurable With dimming function No Component protection class Protection class 2 Nominal control voltage Us 50Hz AC 0...0V Nominal control voltage Us 60Hz AC 0...0V Rated control voltage Us DC 10...30 V Voltage type A.D Sensor width 30 mm
