Schneider Electric TM3DI16GTM3 module, 16 inputs, spring. product range: Modicon TM3 - type of product or component: digital input module - range compatibility: Modicon M221, Modicon M241, Modicon M251 - digital input voltage: 24 V. Benefits: .. Applications: .. Benefits: Special feature: Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 expansion modules with logic controllers.... Applications: Learn more about our machine control solutions!..

Read more less

Siemens 6ES75211BL100AA0SIMATIC S7-1500, digital input module, DI 32xDC 24V BA, 32 channels in groups of 16, input delay typ. 3.2 ms, input type 3 (IEC 61131) scope of delivery incl. push-in front connector SIMATIC ET 200MP is a modular, scalable I/O system for universal use in IP20 and offers the same system advantages as the S7-1500. It enables minimum bus cycle times and very fast response times even for large quantity structures. The distributed I/O system is particularly easy to install, wire and commission. Thanks to the scalable structure, the peripheral station can be customized exactly to the needs on site. The wide range of input/output modules ensures the scalable configuration of an ET 200MP station. Numerous digital and analog input and output modules are available. This ensures the possibility of universal use of the system.

Read more less

Siemens 6ED10551CB100BA2LOGO! DM16 24 expansion module, SV/I/O: DC 24 V/DC 24 V/trans., 8 DI/8 DO, 4TE for LOGO! 8 The LOGO! expansion modules allow you to create a LOGO! very personalized. A LOGO! basic device 8 can be expanded up to max. 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow the addition of digital or analog inputs and outputs with different input voltages.

Read more less

Siemens 6ES75221BH100AA0SIMATIC S7-1500, digital output module, DQ16xDC 24V/0.5A BA, 16 channels in groups of 8, 4A per group, module supports shutdown in load group safety up to SILCL2 according to EN 62061:2005 + A2:2015, and category 3 / PL d according to EN ISO 13849-1:2015. supply incl. push-in front connector SIMATIC ET 200MP is a modular, scalable I/O system for universal use in IP20 and offers the same system advantages as the S7-1500. It enables minimum bus cycle times and very fast response times even for large quantity structures. The distributed I/O system is particularly easy to install, wire and commission. Thanks to the scalable structure, the peripheral station can be customized exactly to the needs on site. The wide range of input/output modules ensures the scalable configuration of an ET 200MP station. Numerous digital and analog input and output modules are available. This ensures the possibility of universal use of the system.

Read more less

Siemens 6ED10551MB000BA2LOGO! DM8 12/24R expansion module, SV/I/O: 12, 24V/12V/24V/relay, 2TE, 4 DE/4 DA for LOGO! 8 The LOGO! expansion modules allow you to create a LOGO! very personalized. A LOGO! basic device 8 can be expanded up to max. 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow the addition of digital or analog inputs and outputs with different input voltages.

Read more less

Siemens 6ES72221HF320XB0SIMATIC S7-1200, digital output module SM 1222, 8 DO, Relay 2A SIMATIC S7-1200 Basic Controller - Flexibility guaranteed by various communication options. With the input/output modules you can customize the configuration of your SIMATIC S7-1200 (except CPU 1211C) according to your specific needs. Furthermore, a series of digital or analog input and output modules and mixed modules are available, also in fail-safe variants. With these comprehensive construction options, you can save space in the control cabinet and optimize hardware costs.

Read more less

Siemens 6ES72221BH320XB0SIMATIC S7-1200, digital output module SM 1222, 16DO, DC 24V, Transistor 0.5A SIMATIC S7-1200 Basic Controller - Flexibility guaranteed by various options of communication. With the input/output modules you can customize the configuration of your SIMATIC S7-1200 (except CPU 1211C) according to your specific needs. Furthermore, a series of digital or analog input and output modules and mixed modules are available, also in fail-safe variants. With these comprehensive construction options, you can save space in the control cabinet and optimize hardware costs.

Read more less

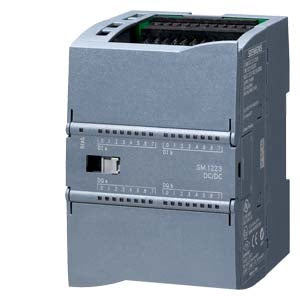

Siemens 6ES72231PH320XB0SIMATIC S7-1200, digital I/O SM 1223, 8 DI/8 DO, 8 DI DC 24V, Sink/Source, 8 DO, Relay 2A SIMATIC S7-1200 Basic Controller - Flexibility guaranteed by various communication options. With the input/output modules you can customize the configuration of your SIMATIC S7-1200 (except CPU 1211C) according to your specific needs. Furthermore, a series of digital or analog input and output modules and mixed modules are available, also in fail-safe variants. With these comprehensive construction options, you can save space in the control cabinet and optimize hardware costs.

Read more less

Siemens 6ES75211BH000AB0SIMATIC S7-1500, DI 16xDC 24V HF digital input module, 16 channels in groups of 16 of which 2 inputs can be used for input delay count 0.05.. 20ms input type 3 (IEC 61131) hardware interrupt diagnostics: front connector (screw terminals or push-in) to be ordered separately SIMATIC ET 200MP is a modular, scalable I/O system for universal use in IP20 and offers the same system advantages of the S7-1500. It enables minimum bus cycle times and very fast response times even for large quantity structures. The distributed I/O system is particularly easy to install, wire and commission. Thanks to the scalable structure, the peripheral station can be customized exactly to the needs on site. The wide range of input/output modules ensures the scalable configuration of an ET 200MP station. Numerous digital and analog input and output modules are available. This ensures the possibility of universal use of the system.

Read more less

Siemens 6ES72211BF320XB0SIMATIC S7-1200, digital input module SM 1221, 8 DI, DC 24V, Sink/Source SIMATIC S7-1200 Basic Controller - Flexibility guaranteed by various options of communication. With the input/output modules you can customize the configuration of your SIMATIC S7-1200 (except CPU 1211C) according to your specific needs. Furthermore, a series of digital or analog input and output modules and mixed modules are available, also in fail-safe variants. With these comprehensive construction options, you can save space in the control cabinet and optimize hardware costs.

Read more less

Siemens 6ES72213BD300XB0SIMATIC S7-1200, digital input module SB 1221, 4DI, DC 24V 200kHz, M reading SIMATIC S7-1200 Basic Controller - Flexibility guaranteed by various control options communication. If you need to expand your SIMATIC S7-1200 CPU with only a few inputs or outputs, Signal Boards are a valid alternative to input and output modules. The Signal Boards are inserted directly on the front of the controller (also possible with CPU 1211C) and are available as analogue or digital inputs and outputs and mixed modules. A Communication Board with RS 485 interface is also available. The Signal Boards also allow subsequent expansion of the configuration without requiring additional space in the control cabinet.

Read more less

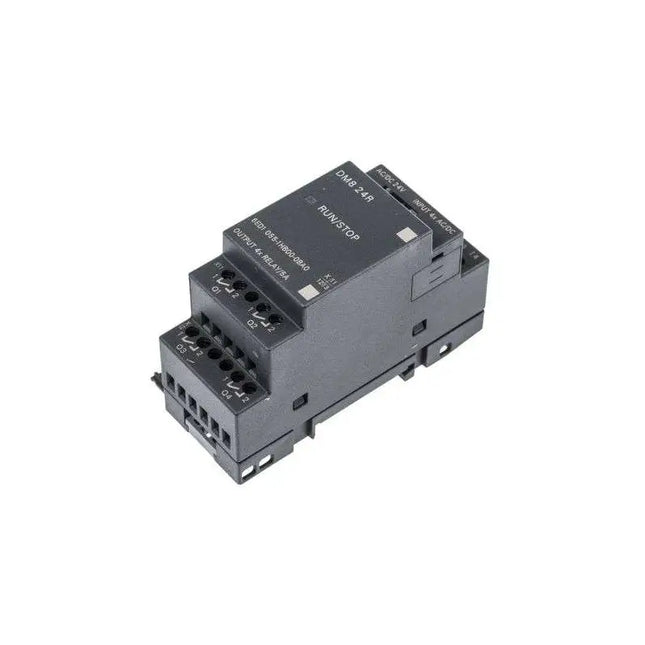

Siemens 6ED10551HB000BA2LOGO! DM8 24R expansion module, SV/I/O: 24V/24V/relay, 2UM 4 DE/4 DA, AC/DC/NPN Input for LOGO! 8 The LOGO! expansion modules allow you to create a LOGO! very personalized. A LOGO! basic device 8 can be expanded up to max. 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow the addition of digital or analog inputs and outputs with different input voltages.

Read more less

Siemens 6ED10551NB100BA2LOGO! DM16 24R expansion module, SV/I/O: DC 24V/DC 24V/relay, 8 DI/8 DO, 4TE for LOGO! 8 The LOGO! expansion modules allow you to create a LOGO! very personalized. A LOGO! basic device 8 can be expanded to max.24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow the addition of digital or analog inputs and outputs with different input voltages.

Read more less

Siemens 6ED10551CB000BA2LOGO! DM8 24 Expansion module, SV/I/O: 24V/24V/trans., 4 DE/4 DA for LOGO! 8 The LOGO! expansion modules allow you to create a LOGO! very personalized. A LOGO! basic device 8 can be expanded up to max. 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow the addition of digital or analog inputs and outputs with different input voltages.

Read more less

Allen-bradley MICRO800 4 point source output  2080OB4 Micro800 4-Channel Digital Output Module, 12/24V DC, Source Technical specificationsDirect current (DC) supply voltage10.8...30 VType of supply voltageDC Number of digital outputs4Configurable digital outputsyesInput current at signal 15 mAPermitted input voltage10.8...0 VInput voltage typeDCDigital output typeRelayOutput current2 AAllowable output voltage12...0 VType of output voltageDCType of electrical connectionConnectorSuitable for safety functionsyes

Read more less

Allen-bradley compactlogix 16 PT 24VDC D/I module 1769IQ16 1769 DC digital module, 16 inputs, voltage 24 V DC, Operating voltage range 10…30 V DC at 30 °C 10…26.4 V DC at 60 °C, 115 mA at 5, 1 V, Rated distance of power supplies 8. Technical data Direct current (DC) supply voltage: 10...30 V Type of supply voltage: DC Number of digital inputs: 16Configurable digital inputs: yesInput current at signal 1: 250 mAAllowed input voltage: 24...24 VType of input voltage: DC Digital output type: TransistorOutput current: 0.115 AAllowable output voltage: 5.1...5.1 VVoltage type output: DC Type of electrical connection: ConnectorDelay time at signal change: 8...8 ms ATEX gas atmosphere category: NoneATEX dust atmosphere category: None Width: 35 mmHeight: 118 mmDepth: 87 mm

Read more less

Schneider Electric TM3 module - 8 inputs TM3DI8 The product is part of the Modicon TM3 range, an offering of expansion I/O modules for Modicon M221, M241,M251 and M262. The digital input module provides 8 inputs with sink or source logic (positive/negative). It is an input module with an input voltage of 24V DC and a current consumption of 24 mA/5 mA at 5V DC via bus connector. It can be used to create setups with up to 8 inputs. Features insulation between input and internal logic at 500V AC; it has no insulation between the inputs. For the electrical connection it has a removable screw terminal with 5.08 mm pitch adjustment for the inputs. The product is classified IP20. Dimensions: 27.4mm (width) x 84.6mm (depth) x 90mm (height). Weight: 0.110kg. The product is CE, CULus and C-Tick certified. It complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. The module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controllers. Supports TH35-15 type top hat guides and TH35-7.5 type top hat guides in accordance with IEC 60715 and plate or panel with mounting via fixing kit. Modicon TM3 expansion modules have been designed with a simple snap-together assembly mechanism. When mounting Modicon TM3 modules with logic controllers, an extension bus connector is used to distribute data and power. Enhance the performance of your controllers with the Modicon TM3 I/O system, specifically designed for Modicon M221, M241 and M251 logic controllers. Technical data Product rangeModicon TM3Product typeDigital input modulerange compatibility Modicon M241Modicon M251Modicon M221Modicon M262 - Modicon M241 - Modicon M251number of digital inputs8 per input compliant with IEC 61131-2 Type 1digital input logicDrain or source (positive/negative)digital input voltage24 Vinput current digital7 mA per inputTechnical characteristicsnumber of digital I/Os8current absorption5 mA at 5 V DC Via the bus connector (at off state)0 mA at 24 V DC Via the bus connector (at on state)0 mA at 24 V DC Via the bus connector (at off state)24 mA at 5 V DC Via bus connector (in on state)digital input voltage typeDCguaranteed voltage state 115 ...28.8 V per inputcurrent state 1 guaranteed>= 2.5 mA (input)voltage state 0 guaranteed 0...5 V per inputcurrent state 0 guaranteedinput impedance3.4 kOhmresponse time4 ms (turn-on)4 ms (turn-off)local signaling1 LED per channel ( green) input status:electrical connection11 2.5 mm² terminal block removable screw with 5.08 mm pitch adjustment for inputsmaximum cable length between devicesUnshielded cable: isolationBetween input and internal logic at 500 V ACNot isolated between inputsmarkingCEmounting supportTop hat type TH35-15 rail compliant with IEC 60715Top hat type TH35-7.5 rail compliant with IEC 60715plate or panel with fixing kitheight90 mmdepth84.6 mmwidth27.4 mmproduct weight0.085 kg

Read more less

Schneider Electric M340 digital input module - 32 inputs - 24 V DC positive BMXDDI3202K The digital input module is part of the Modicon X80 modules. It has 32 isolated inputs and is powered by 24V DC. This input module with 40-way connectors is designed to be used in conjunction with the TeSys Quickfit mounting system. It occupies a single slot in the rack and has an enclosure that provides 20 protection to the electronics. Product Range Modicon Digital Input Type IsolatedInput Type Sink Current (Positive Logic)Digital Input Voltage 24V DC PositiveDigital Input Current 2.5 mAInput Compatibility With 2/3-wire proximity sensors conforming to IEC 60947-5-2With 2/3-wire proximity sensors conforming to IEC 61131-2 Type 1Sensor Power Supply 19...30 VCurrent State 1 Guaranteed >= 2 mACurrent State 0 Guaranteed Input Impedance 9600 OhmInsulation Resistance > 10 MOhm 500 V DCDissipated Power In W 3.9 WDc Typical Response Time 4 msDc Maximum Response Time 7 msParallelizing Inputs NoTypical Current Consumption 121 mA at 3.3 V DC

Read more less

Schneider-Electric TM3 8 output relay module TM3DQ8R The product is part of the Modicon TM3 range, an offering of expansion I/O modules for Modicon M221, M241, M251 and M262. The digital output module provides 8 relay outputs with sink or source logic (positive/negative). PresentationProduct rangeModicon TM3Product typeDigital output modulerange compatibilityModicon M241 Modicon M251Modicon M221Modicon M262 - Modicon M241 - Modicon M251Digital output typeRelay normally opennumber of digital outputs 8logic digital outputPositive or negativedigital output voltage24 V DC for relay output240 V ACdigital output current2000 mA for relay outputTechnical characteristicsnumber of digital I/Os 8Current consumption5 mA at 5 V DC Via the bus connector (in the off state)0 mA at 24 V DC Via the connector of the bus (in the off state)40 mA at 24 V DC Via the bus connector (in the on state)30 mA at 5 V DC Via the bus connector (in the on state)time response10 ms (turn-on)5 ms (turn-off)Mechanical life20000000 cyclesminimum load10 mA at 5 V DC for relay outputlocal signaling1 LED per channel (green)output status:electrical connection11 2.5 mm² terminal block removable screw with 5.08 mm pitch adjustment for outputs maximum cable length between devicesUnshielded cable: IsolationBetween output and internal logic at 2300 V ACBetween outputs at 750 V ACBetween output groups at 1500 V ACCE markingMounting supportTop hat type TH35-15 rail compliant with IEC 60715Top hat type TH35- 7.5 rail compliant with IEC 60715plate or panel with fixing kitheight90 mmdepth84.6 mmwidth27.4 mm product weight0.11 kg EnvironmentReference standardsIEC 61131-2Product certificationsCEcULus"UKCA"RCMEACcULus HazLocResistance to electrostatic discharge8 kV in air conforming to IEC 61000-4-24 kV on contact conforming to IEC 61000-4- 2resistance to electromagnetic fields10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to IEC 61000 -4-31 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3resistance to magnetic fields30 A/m 50/60 Hz conforming to IEC 61000-4 -8fast transient resistance2 kV for relay output conforming to IEC 61000-4-4surge resistance1 kV I/O common mode conforming to IEC 61000-4-5 DC resistance to conducted disturbances, induced by radio frequency fields10 V 0.15...80 MHz conforming to IEC 61000-4-63 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) compliant with Marine specification (LR, ABS, DNV, GL)electromagnetic emissionRadiated emissions 40 dBμV/m QP class A (10 m) at 30… 230 MHz conforming to IEC 55011Radiated emissions 47 dBμV/m QP class A (10 m) at 230…1000 MHz conforming to IEC 55011operating ambient temperature-10…35 °C vertical installation-10…55 °C horizontal installationStorage temperature-25…70 °Crelative humidity10…95 %, non-condensing (in operation)10…95 %, non-condensing (in storage)IP protection degreeIP20 with protective cover mountedPollution degree 2Operating altitude0...2000 mstorage altitude0…3000 mvibration resistance3.5 mm at 5…8.4 Hz on DIN rail3 gn at 8.4…150 Hz on DIN rail3.5 mm at 5…8.4 Hz on panel3 gn at 8.4…150 Hz on panel

Read more less

SIEMENS SIMATIC S7-1200 6ES72266BA320XB0 SIMATIC S7-1200, digital input module SM 1226, F-DI 16X DC 24V, PROFIsafe, width 70mm, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508). General information:Product type designation SM 1226, F-DI 16x24 VDC Supply voltageRated value (DC) 24 VAllowable range, lower limit (DC) 20.4 VAllowable range, upper limit (DC) ) 28.8 VVoltage supply required according to NEC class 2 No Input currentfrom backplane bus DC 5 V, max. 155mA; Current consumption (SM bus, DC 5 V): 155 mADigital inputs● from load voltage L+ (without load), max. 130mA; 130 mA + 6 mA / input used + any current usedVsensor1/Vsensor2 Power dissipationPower dissipation, typ. 7 W Digital inputsNumber of inputs 16; 16 (1oo1) or 8 (1oo2); Note: You can individually assign each pair of "a.x" and "b.x" inputs as a single 1oo2 channel or as 2 separate 1oo1channels Number of inputs that can be managed simultaneouslyHorizontal mounting position— up to 50 °C, max. 16; 16 inputs, with horizontal installation at 55 °CVertical mounting position— up to 40 °C, max. 16; 16 inputs, with vertical installation at 45 °C Input voltage● for signal "0" DC -30 V ... DC +5 V● for signal "1" DC 15 V .. DC 30 V Input current● for signal "0", max. (permissible quiescent current) 0.5 mA● for signal "1", typ. 5 mA Input delay (with nominal value of the input voltage)for standard inputs— parameterizable Yes; 0.8 / 1.6 / 3.2 / 6.4 / 12.8 ms Cable length● with shielding, max. 200m; Unshielded with input filter time of 1.6 ms to 12.6 ms (with an input delay of 0.8 ms, shielded cables must be used for digital inputs and sensor power)● without shielding, max. 200m; Shielded with input filter time 0.8 ms to 12.6 ms (with an input delay of 0.8 ms, shielded cables must be used for digital inputs and sensor power) Alarms/diagnostics/status informationDiagnostic display LED● for input status Yes

Read more less

SIEMENS DIGITAL OUTPUT SM 1226, F-DQ 4X 24VDC  6ES72266DA320XB0 SIMATIC S7-1200, digital output module SM 1226, F-DQ 4x DC 24V 2A, PROFIsafe, width 70mm, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508) . General information:Product type designation SM 1226 F-DQ 4 x 24 VDC Supply voltageAllowable range, lower limit (DC) 20.4 VAllowable range, upper limit (DC) 28.8 VVoltage supply required according to NEC class 2 No Input currentfrom backplane bus DC 5 V, max. 125 mA Digital outputs● from load voltage L+, max. 170 mA Power dissipationPower dissipation, typ. 8 W Digital outputsNumber of outputs 4● in groups of 1Short circuit protection Yes Interrupting capacity of outputs● with ohmic load, max. 30 Hz● with lamp load, max. 10Hz Output voltage                                                                        ● Rated value (DC) 24 466> Output current● for signal "1" rated value 2 A● for signal "1" permissible range, max. 10 mA ... 2.4 A● for signal "0" residual current, max. Switch on PNP: 0.5 mA, max.; NPN switch: 0.5 mA, max. Cable length● with shielding, max. 200 m● unshielded, max. 200 m Alarms/diagnostics/status informationDiagnostic display LED● for output status Yes Degree of protection and safety classIP protection degree IP20Standards, approvals, certificatesCE mark YescULus Yes FM approval YesHighest safety class achievable in safety operation● Performance Level according to ISO 13849-1 Category 4, PL e● SIL according to IEC 61508 SIL 3

Read more less

SIEMENS DIGITAL INPUT SM 1221 6ES72211BH320XB0 Digital input module SM 1221, 16DI, DC 24V, Sink/Source. General informationProduct type designation SM 1221, DI 16x24 VDCSupply voltageRated value (DC) 24 VPermissible range, lower limit (DC) 20.4 VPermitted range, upper limit (DC) 28.8 VInput currentfrom backplane bus DC 5 V, max. 130 mA Digital inputs● from load voltage L+ (without load), max. 4 mA; per channeloutput voltage / headertransmitter supply voltage / header● present Yes Power dissipationPower dissipation, typ. 2.5 WDigital inputs Number of entries 16● in groups of 4 Input characteristic according to IEC 61131, Type 1 YesNumber of inputs manageable simultaneouslyall installation positions— up to 40 °C, max. 16 Horizontal mounting position— up to 40 °C, max. 16— up to 50 °C, max. 16 Vertical mounting position— up to 40 °C, max. 16 Input voltage● Rated value (DC) 24 V● for "0" signal 5 V DC at 1 mA● for signal "1" DC 15 V at 2.5 mA Input current● for signal "0", max. (permissible quiescent current) 1 mA● for signal "1", min. 2.5 mA● for signal "1", typ. 4 mA Input delay (with nominal value of the input voltage)for standard inputs— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of 4 for alarm inputs.

Read more less

SIEMENS S7-1500, DI 32X24VDC HF 6ES75211BL000AB0 SIMATIC S7-1500, DI 32xDC 24V HF digital input module, 32 channels in groups of 16; of which 2 inputs can be used for counting; input delay 0.05..20ms input type 3 (IEC 61131); diagnostics; Process interrupt: front connector (screw terminals or push-in) to be ordered separately.  General informationProduct type designation DI 32x24VDC HFHardware version from FS04Firmware version V2.2.1● FW update possible Yes Product function● I&M data Yes; I&M0 ... I&M3● Isochronous operation Yes● Prioritized start Yes Engineering with● STEP 7 TIA Portal configurable/integrated from versionV13 SP1 / -● STEP 7 configurable/integrated from version V5.5 SP3 / -● PROFIBUS from GSD version/GSD revision V1.0 / V5.1● PROFINET from GSD version/GSD revision V2.3 / - Operating mode● DI Yes● Counter Yes● Oversampling No● MSI Yes Supply voltageRated value (DC) 24 VAllowable range, lower limit (DC) 19.2 VAllowable range, upper limit (DC) ) 28.8 VReverse polarity protection Yes Input currentCurrent consumption, max. 40mA; 20 mA each group with DC 24 V supply voltage PowerPower draw from backplane bus 1.1 WPower lossPower loss, typ. 4.2 WDigital inputs Number of inputs 32parameterizable digital inputs YesRead on m/p Read on PInput characteristic according to IEC 61131, Type 3 Yes Digital input functions, parameterizable● Gate start/stop Yes● Digital input freely usable Yes

Read more less

BALLUFF BNI006A Network module for Ethernet/IP BNI EIP-508-105-Z015 Interface: EtherNet/IP Operating voltage UB: 18...30.2 VDC Connection (COM 1): M12x1-Socket, 4-pole, D-coded Connection (COM 2): M12x1-Socket, 4-pole, D-coded Connection (power supply IN): 7/8" plug, 4-pole Connection (power supply OUT): 7/8" socket, 4-pole Slo connection: t8x M12x1-Socket, 5-pole, A-coded Digital inputs: 16x PNP, type 3 Digital outputs: 16x PNP Configurable inputs/outputs: yes Max. output current: 2 A short-circuit proof and overload-proof Summative current US, sensor: 9.0 A Summation current UA, actuator: 9.0 A Housing material: Zinc, Die cast Dimension: 68 x 37.9 x 224 mm Ambient temperature: -5...70 °C Protection rating: IP67 Additional interfaces: 8x IO-Link IO-Link version: 1.1 Port class: Type A

Read more less
