Digital I/o Modules for Plc

SIEMENS SIMATIC S7-1500 6ES75261BH000AB0 Digital input module F, F-DI 16x 24VDC PROFIsafe; width built 35mm; up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508) General informationProduct type designation: F-DI 16x24VDCPossible FW update: Yes Supply voltage Rated value (DC): 24 V Permissible range, lower limit (DC): 19.2 V Permissible range, upper limit (DC): 28, 8 VReverse polarity protection: YesVoltage supply required according to NEC class 2: NOInput current Current consumption (nominal value): 50 mA; without loadCurrent consumption, max.: 60 mA; without loadPower loss Power loss, typ.: 4.6 W

Read more less

SIEMENS SIMATIC S7-1500 6ES7522-1BL01-0AB0 DQ 32xDC 24V/0.5A HF digital output module; 32 channels in groups of 8; 4A for each group; single channel diagnostics; substitute value, operating cycle counter for the connected actuators. The unit supports the safe disconnection of load groups up to SIL2 according to EN IEC 62061:2021 and category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw or push-in terminals) to be ordered separately. General informationProduct type designation: DQ 32x24VDC/0.5A HFHardware version: From FS02Firmware version: V1.1.0Product function● I&M data: Yes; I&M0 ... I&M3● Isochronous operation: Yes● Prioritized startup: YesEngineering with● STEP 7 TIA Portal configurable/integrated from version: V13 SP1 / -● STEP 7 configurable/integrated from version: V5.5 SP3 / -● PROFIBUS from GSD version/GSD revision: V1.0 / V5.1● PROFINET from GSD version/GSD revision: V2.3 / -Operating mode● DQ: Yes● DQ with power saving function: No● PWM: No● Cam control (switching to comparison values): No● Oversampling: No● MSO: Yes● Integrated switching cycle counter: Yes Supply voltage Rated value (DC): 24 VAllowable range, lower limit (DC): 19.2 VAllowable range, upper limit (DC): 28.8 VReverse polarity protection : Yes; by internal protection with 7 A per group Input current Current consumption, max.: 60 mA Power dissipated Power dissipation, typ.: 3.5 W

Read more less

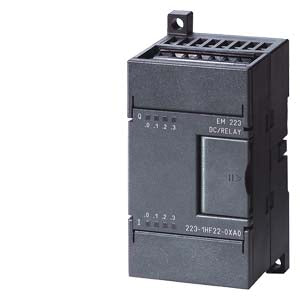

***spare part*** SIMATIC S7-200, digital I/O EM 223, only for CPU S7-22X, 8 DI DC 24V, Sink/Source, relay 8 DO, 2A/channel

Read more less

6ES7121-1BB00-0AA0 | SIEMENS *** ricambio*** simatic sc, sottomodulo elettronico 2 di, 24 v dc; 8 pezzi per unità di imballaggio

Read more less

Simatic s7-200, em 221 mod. di ingresso digitale, 8 di otticamente isolati, 24 v cc, ingresso sorgente solo per cpu s7-21x, ** prodotto fuori produzione **

Read more less

*** pezzo di ricambio *** SIMATIC S7-300, unità di ingressi digitali SM 321, con separazione di potenziale 16 DE, AC 120/230V, 1 x 20 poli

Read more less

***parte di ricambio*** SIMATIC S7-200, I/O digitali EM 223, solo per CPU S7-22X, 16 DI DC 24 V, Sink/Source, 16DO DC 24V; 0,75A/canale,Source

Read more less

***parte di ricambio*** SIMATIC S7-200, I/O digitali EM 223, solo per CPU S7-22X, 8 DI DC 24V, Sink/Source, 8 DO DC 24V; 0,75A/canale Source

Read more less

*** pezzo di ricambio *** SIMATIC S7-200, unità di uscite digitali EM 222, solo per CPU S7-22X, 4 DO (relè); 10A, DC 5 ... 30 V oppure AC 5 ... 250 V

Read more less

***parte di ricambio*** SIMATIC S7-200, unità di ingressi digitali EM 221, solo per CPU S7-22X, 16 DE, DC 24V, commutazione P/M

Read more less

*** pezzo di ricambio *** LOGO! Text Display TD, per LOGO!..0BA6 e..0BA7, a 4 righe, con cavo (2,5 m) e accessori di montaggio, configurazione con LOGO! SOFT Comfort V6.0

Read more less

*** pezzo di ricambio *** LOGO! DM16 24 modulo di ampliamento, PS/I/O: DC 24 V/DC 24 V/tras, 8 DI/8 DO, 4UM

Read more less
