WEIDMULLER

Weidmuller pro insta 60W 12V 5A 2580240000   Power supply, switching power supply, 12 V. Technical data TemperaturesStorage temperature -40 ºC...Operating temperature -25 ‍C...70 _ C EntranceCurrent consumption AC 0.7 A @ 230 V AC / 1.5 A @ 100 V ACCurrent consumption DC 0.25 A @ 370 V DC / 0.8 A @ 120 V DCInput voltage range AC 85...264 V AC (100 V AC thermal drift)Frequency range AC 45... 65 HzInput voltage range DC 95... 370 V DCPeak current max. 40 AInput fuse (internal) YesRated power consumption 69,8 VARecommended prefusible 2 A / DI, fuse6 A, car. B, circuit breaker2...4 A, car. C, circuit breakerPUSH IN connection technology with actuatorPUSH IN cable connection with actuatorRated input voltage 110...240 V AC / 120...340 V DC OutputCapacitive load UnlimitedContinuous output current at Unominale 5 A @ 55Nominal output current for Unom. 5 A @ 55Output current, max. 5 AResidual ripple, break peaks < 50 mVss @ UNenn, Full LoadPower output 60 W

Read more less

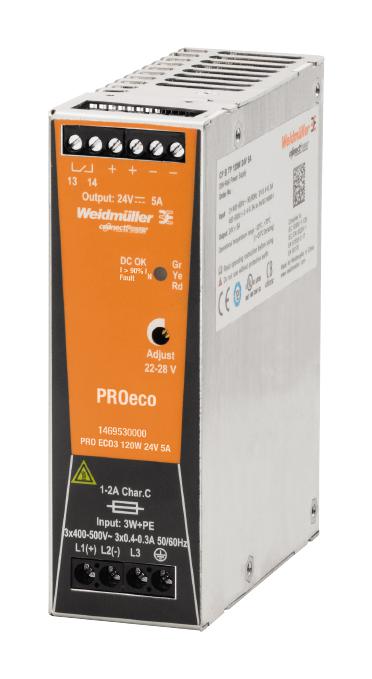

Weidmuller pro eco3 120W 24V 5A 1469530000  Power supply, switching power supply, 24 V. Technical data TemperaturesStorage temperature -40 ºC...Operating temperature -25 ‍C...70 _ C EntranceCurrent consumption in relation to input voltage:Type of voltage Three-phase ACInput voltage 400 VInput current 0,4 AType of voltage Three-phase ACInput voltage 500 VInput current 0,3 AType of voltage DCInput voltage 800 VInput current 0,2 AType of voltage DCInput voltage 450 VInput current 0,4 AAC input voltage range 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V ACFrequency range AC 47...63 HzInput voltage range DC 450...800 V DCPeak current max. 40 AInput frequency 47...63 HzInput fuse (internal) YesRated power consumption 137,9 VARecommended prefusible 2 A / DI, fuse2...3 A, car. C, circuit breakerProtection against Varistore input surgesConnection technology Screw connectionRated input voltage 3x 400...3x 500 V AC (input range) OutputCapacitive load UnlimitedContinuous output current at Unominale 5 A @ 55Rated output current for Unom. 5 A at 55 solidCResidual ripple, break peaks < 50 mvpp @ 24 V DC, INParallelability yes, max. 5Power output 120 W

Read more less

Weidmuller pro eco 480W 24V 20A 1469510000  Power supply, switching power supply, 24 V. Technical dataTemperaturesStorage temperature -40 ºC...Operating temperature -25 ‍C...70 _ CEntranceCurrent consumption AC 2.37 A @ 230 V AC / 5.2 A @ 110 V ACCurrent consumption DC 1.55 A @ 370 V DC / 4.65 A @ 120 V DCInput voltage range AC 85...264 V AC (100 V AC thermal drift)Frequency range AC 47...63 HzInput voltage range DC 80...370 V DC (Derating @ 120 V DC)Peak current max. 5 AInput frequency 47...63 HzInput fuse (internal) YesRated power consumption 527,5 VARecommended prefusible 6 A / DI, fuse16 A, car. B, circuit breaker6...8 A, Char. C, circuit breakerProtection against Varistore input surgesConnection technology Screw connectionRated input voltage from 100 to 240 V ACOutputCapacitive load UnlimitedContinuous output current at Unominale 20 A @ 55Nominal output current for Unom. 20 A @ 55Residual ripple, break peaks < 50 mvpp @ 24 V DC, INParallelability yes, max. 3Power output 480 W

Read more less

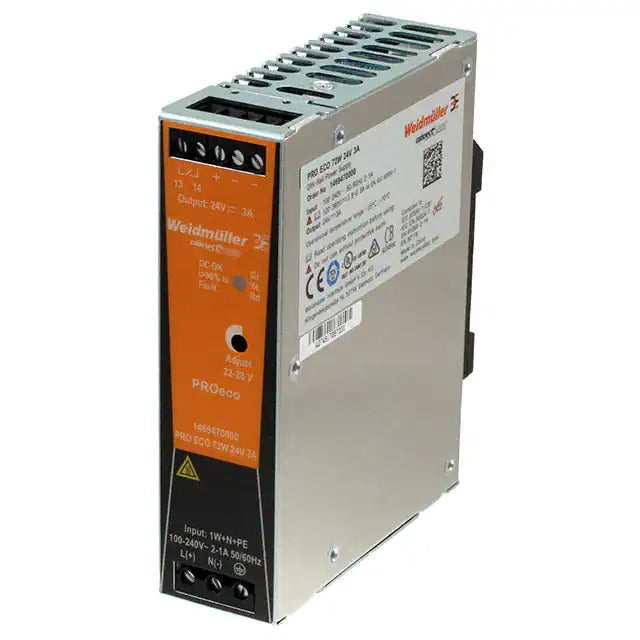

Weidmuller pro eco 72W 24V 3A 1469470000  Power supply, switching power supply, 24 V. Technical data TemperaturesStorage temperature -40 ºC...Operating temperature -25 ‍C...70 _ C EntranceCurrent consumption AC 0.55 A @ 230 V AC / 1.04 A @ 110 V ACCurrent consumption DC 0.22 A @ 370 V DC / 0.68 A @ 120 V DCInput voltage range AC 85...264 V AC (100 V AC thermal drift)Frequency range AC 47...63 HzInput voltage range DC 80...370 V DC (Derating @ 120 V DC)Peak current max. 40 AInput frequency 47...63 HzInput fuse (internal) YesRated power consumption 82,8 VARecommended prefusible 2 A / DI, fuse6 A, car. B, circuit breaker2...4 A, car. C, circuit breakerProtection against Varistore input surgesConnection technology Screw connectionRated input voltage from 100 to 240 V AC OutputCapacitive load UnlimitedContinuous output current at Unominale 3 A @ 55Rated output current for Unom. 3 A at 55 solidCResidual ripple, break peaks < 50 mvpp @ 24 V DC, INParallelability yes, max. 5Power output 72 W

Read more less

Weidmuller pro eco3 240W 24V 10A 1469540000  Power supply, switching power supply, 24 V. Technical data TemperaturesStorage temperature -40 ºC...Operating temperature -25 ‍C...70 _ C EntranceCurrent consumption in relation to input voltage:Type of voltage Three-phase ACInput voltage 400 VInput current 0,8 AType of voltage Three-phase ACInput voltage 500 VInput current 0.6 AType of voltage DCInput voltage 800 VInput current 0,4 AType of voltage DCInput voltage 450 VInput current 0,7 AAC input voltage range 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V ACFrequency range AC 47...63 HzInput voltage range DC 450...800 V DCPeak current max. 50 AInput frequency 47...63 HzInput fuse (internal) YesRated power consumption 272.7 VARecommended prefusible 2 A / DI, fuse2...3 A, car. C, circuit breakerProtection against Varistore input surgesConnection technology Screw connectionRated input voltage 3x 400...3x 500 V AC (input range) OutputCapacitive load UnlimitedContinuous output current at Unominale 10 A @ 55 C, 2,5 A @ 70 CNominal output current for Unom. 10 A @ 55Residual ripple, break peaks < 50 mvpp @ 24 V DC, INParallelability yes, max. 5Power output 240 W

Read more less

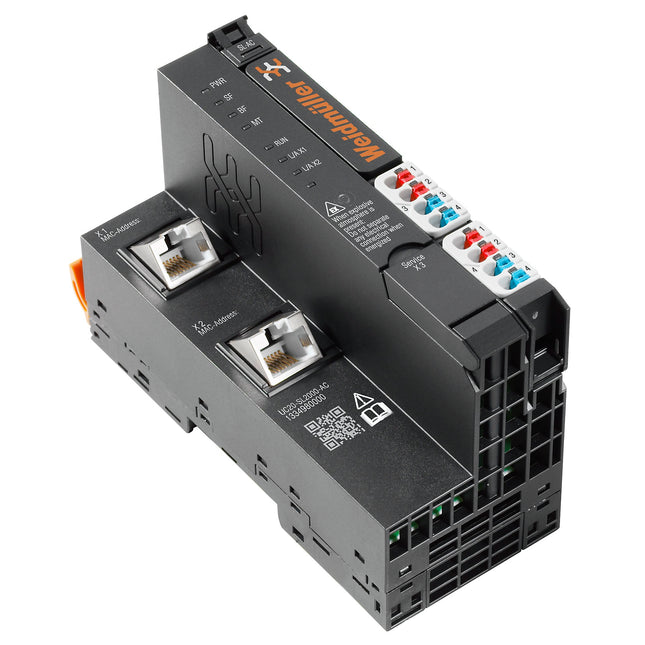

Weidmuller 2638920000Industrial controller (plc) based on codesys that can be planned with the appropriate PC-engineering tools.

Read more less
