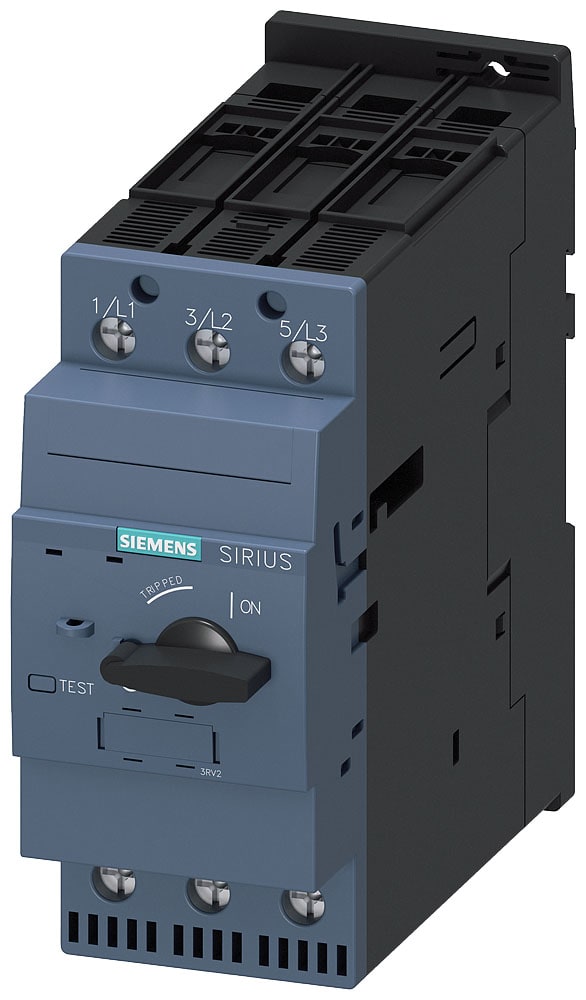

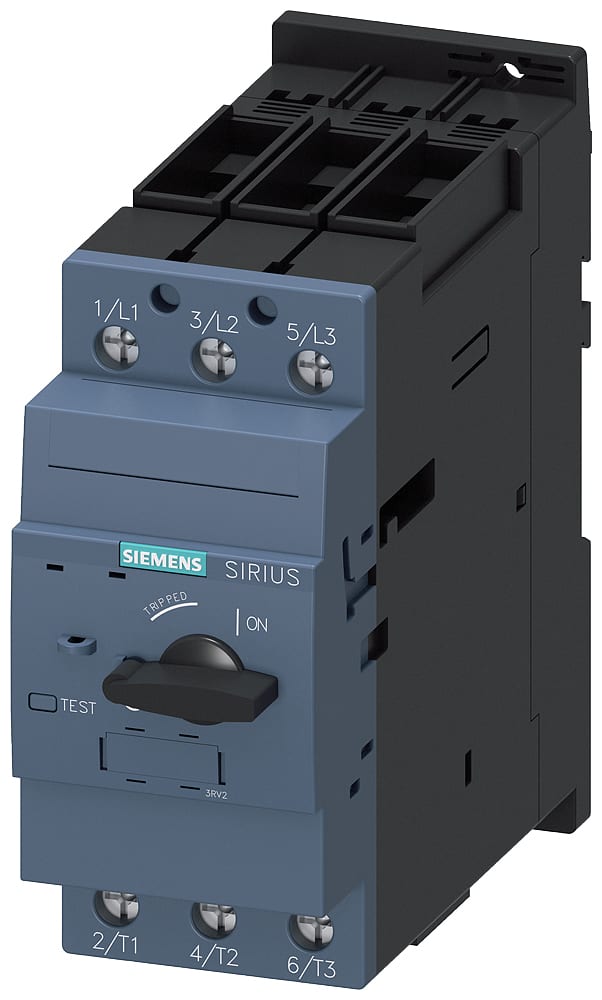

SIEMENS SIRIUS 3RV2 Circuit breaker 3RV20111DA10 Automatic circuit breaker size S00 for motor protection, CLASS 10 release A 2,2...3,2 A release N 42 A screw terminal standard operating power. General information product brand SIRIUSproduct designation Circuit breakerproduct design For motor protectionproduct type designation 3RV2   General technical data frame size of circuit breaker S00frame size of company-specific combinable contactor S00, S0product expansion auxiliary switch block Yes power loss [W] at rated current value● with AC in hot operating state 7.25 W● with AC in hot operating state per pole 2.4 Wvoltage insulation with pollution degree 3 with AC rated value 690 Vimpulse withstand voltage rated value 6 kVshock resistance according to IEC 60068-2-27 25g / 11 ms mechanical lifespan (operating cycles)● of the main contacts typ. 100 000● of auxiliary contacts typ. 100 000electrical lifespan (switching cycles) typ. 100 000type of explosion protection according to the ATEX Product Directive 2014/34/EU Ex II(2) GDcertificate of suitability according to the ATEX Product Directive 2014/34/EU DMT 02 ATEX F 001reference code according to IEC 81346-2:2009 QRoHS Directive (date) 10/01/2009
