Description

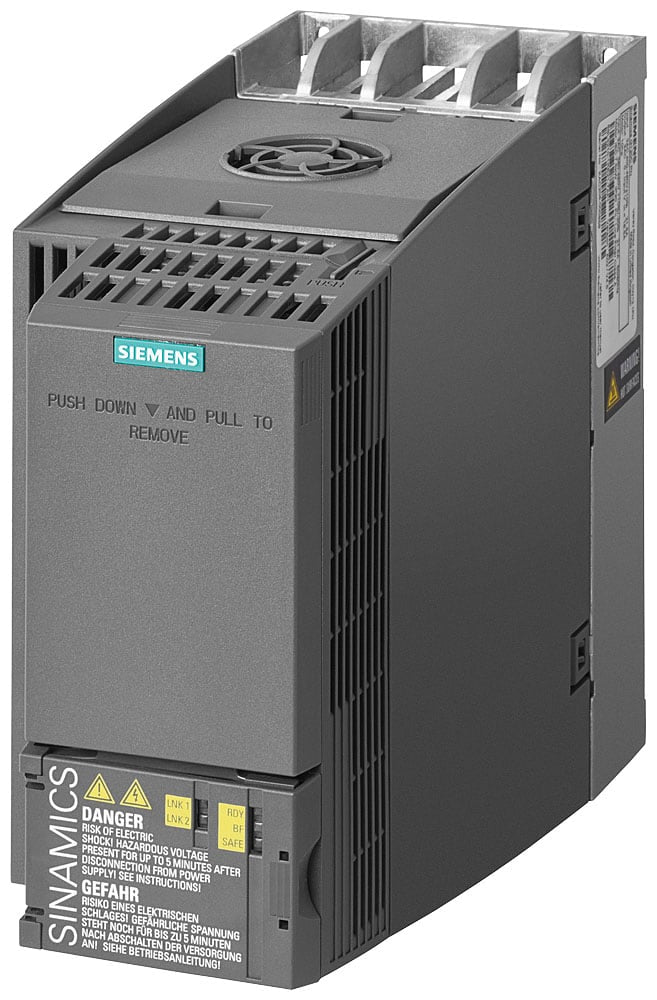

6SL32101KE213AB1 SIEMENS
SINAMICS G120C nominal power: 5.5kW with 150% overload for 3 seconds. 3AC380-480V+10/-20% 47-63Hz integrated filter class A I/O interface: 6DI, 2DO, 1AI, 1AO integrated Safe-Torque-Off fieldbus: USS/MODBUS RTU protection degree IP20/UL Open Type size: FSB 196x 100x 203 (HxLxP) 24V external SINAMICS G120C frequency converter. Versatile. User-friendly. Compact. For the most diverse applications, such as conveyors, mixers, pumps, fans, and compressors. With the integrated safety function Safe Torque Off (STO), STO via terminals/PROFIsafe eliminates the need for other external components. Commissioning and control are quick and easy with a PC via USB or through a Basic Operator Panel or an Intelligent Operator Panel, or wirelessly via the SINAMICS G120 Smart Access Module. The drive networking occurs via standard fieldbus systems (PROFINET, PROFIBUS) and to make commissioning easier and more intuitive, there is a memory card slot. To increase energy efficiency, the converter is equipped with precise vector control SLVC optimized for energy, and also features automatic flow reduction. The SINAMICS G120C covers the three-phase voltage range 3AC 380 V ... 480 V and is available in seven frame sizes with powers from 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be customized with various options to meet specific user requirements. These options include local or mobile operator panels, connection cables, network filters, braking resistors, network reactors, and other accessories. Variable speed drives are an integral part of the Totally Integrated Automation (TIA) concept and interface optimally, e.g., with SIMATIC controllers. The universal converter SINAMICS G120C is the successor to the MICROMASTER 420 frequency converter. SINAMICS - the drive that suits me.
