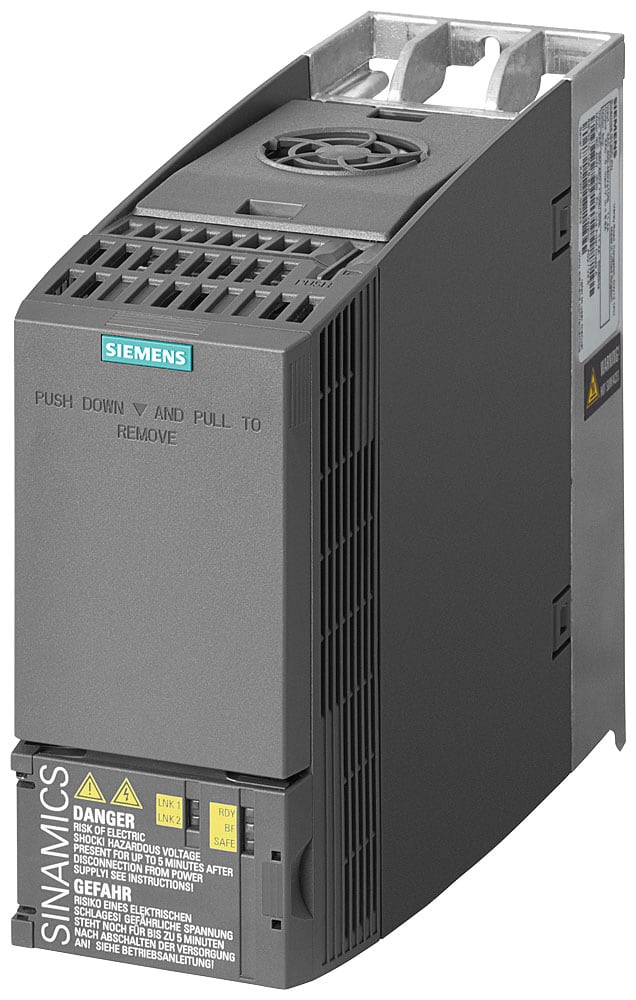

6SL32101KE175UP1 SIEMENS
SINAMICS G120C rated power: 3.0kW with a 150% overload for 3 seconds. 3AC380-480V+10/-20% 47-63Hz unfiltered I/O interface: 6DI, 2DO, 1AI, 1AO Integrated Safe-Torque-Off integrated fieldbus: PROFIBUS DP protection degree IP20/UL Open Type size: FSA 196x 73x 203 (HxLxD) 24V external SINAMICS G120C frequency converter. Versatile. User-friendly. Compact. For the most diverse applications, such as conveyors, mixers, pumps, fans, and compressors. With the integrated safety function Safe Torque Off (STO), STO via terminals/PROFIsafe eliminates the need for other external components. Commissioning and control are quick and easy with a PC via USB or through a Basic Operator Panel or an Intelligent Operator Panel or wirelessly via the SINAMICS G120 Smart Access Module. The network connection of the drives is done through standard fieldbus systems (PROFINET, PROFIBUS) and to make commissioning easier and more intuitive, a memory card slot is provided as standard. To increase energy efficiency, the converter is equipped with precise and energy-optimized SLVC vector control, and it also has automatic flow reduction. The SINAMICS G120C covers the three-phase voltage range 3AC 380 V ... 480 V and is available in seven frame sizes with powers ranging from 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be tailored with various options to meet specific user needs. Among these options are local or mobile operator panels, connection cables, line filters, braking resistors, line reactors, and other accessories. Variable speed devices are an integral part of the Totally Integrated Automation (TIA) concept and interface optimally, e.g., with SIMATIC controllers. The universal converter SINAMICS G120C is the successor to the MICROMASTER 420 frequency converter. SINAMICS - the drive for me.
