Description

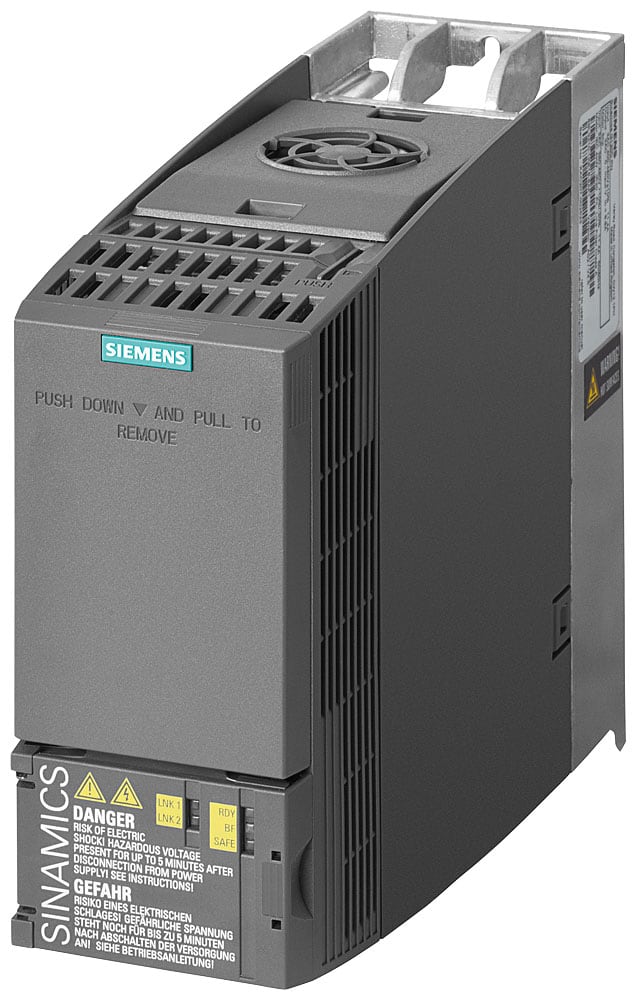

6SL32101KE175UF1 SIEMENS
SINAMICS G120C nominal power: 3.0 kW with 150% overload for 3 seconds. 3AC380-480V+10/-20% 47-63Hz unfiltered I/O interface: 6DI, 2DO, 1AI, 1AO Integrated Safe-Torque-Off integrated fieldbus: PROFINET PN protection class IP20/UL Open type size: FSA 196x 73x 225.4 (HxLxD) 24V external SINAMICS G120C frequency converter. Versatile. User-friendly. Compact. For the most diverse applications, such as conveyors, mixers, pumps, fans, and compressors. With the integrated safety function Safe Torque Off (STO), STO via terminals/PROFIsafe eliminates the need for other external components. Commissioning and control are quick and easy with a PC via USB or through a Basic Operator Panel or an Intelligent Operator Panel, or wirelessly via the SINAMICS G120 Smart Access Module. The connection of drives to the network is done via standard fieldbus systems (PROFINET, PROFIBUS), and to make the series commissioning easier and more intuitive, there is a slot for memory cards. To increase energy efficiency, the converter is equipped with precise and energy-optimized SLVC vector control, and it also features automatic flow reduction. The SINAMICS G120C covers the three-phase voltage range 3AC 380 V ... 480 V and is available in seven sizes with power ratings from 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be adapted with various options to meet the specific needs of the user. These options include local or mobile operator panels, connection cables, line filters, braking resistors, line reactors, and other accessories. Variable speed devices are an integral part of the Totally Integrated Automation (TIA) concept and interface optimally with, for example, SIMATIC controllers. The universal converter SINAMICS G120C is the successor to the MICROMASTER 420 frequency converter. SINAMICS - the drive that suits me.
