3VA26126HL320AA0 |Siemens

Description

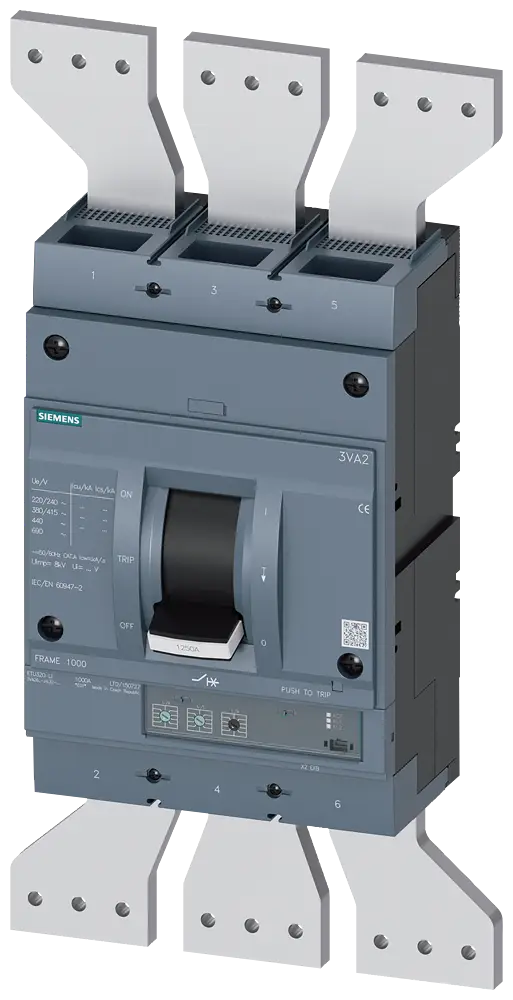

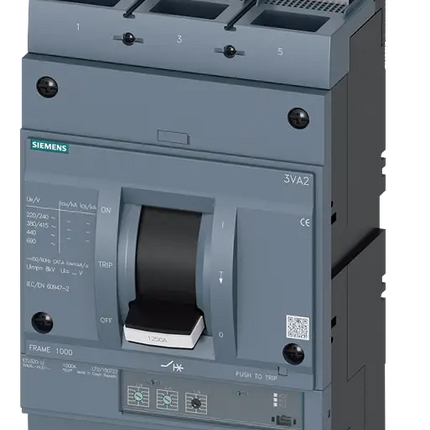

Siemens 3VA26126HL320AA0

Circuit breaker 3VA2 IEC frame 1250 breaking capacity class H Icu=85kA at 415 V 3-pole, system protection ETU320, LI, In=1250A overload protection Ir=500A ...1250A short-circuit protection Ii=1.5...10 x In spread busbar connections

Technical data
 insulation voltage / rated value 800 V
operating voltage / at AC / rated value 690 V
Power dissipation [W] / max. 516 W
power dissipation [W] / at nominal current value / with AC
/ in hot operating state / for each pole
172 W
mechanical life (operating cycles) / typ. 10 000
electrical life (switching cycles) / with AC-1 / with
380/415 V
4 600
electrical life (switching cycles) / at AC-1 / at 690 V 3 200
product feature / for neutral conductor /
upgradeable / short circuit protection and
overload
No
Performing earth fault monitoring Without
Product function
● communication function No
● other measurement function No
Net weight per UQ 21.6 kg

Product form

Siemens 3VA26126HL320AA0 Circuit breaker 3VA2 IEC frame 1250 breaking capacity class H Icu=85kA at 415 V 3-pole, system protection ETU320,... Read more

SKU: 3VA2612-6HL32-0AA0
Barcode: 4042949435778

IN STOCK

IT €5.916,94
€4.849,95 Excl. VAT

    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
    • HS CODE: 8536.20.90
    Icon for cloud_dataSPECIFICATIONS

    • Corrente ininterrotta nominale Iu - 1250 A
    • Potere di interruzione nominale estremo in corto circuito Icu 400V 50Hz - 85 kA
    • Intervallo di regolazione relè termico (sovraccarico) - 500...1250 A
    • Intervallo di regolazione protezione contro i cortocircuiti a breve ritardo - -99999...-99999 A
    • Intervallo di regolazione protezione contro i cortocircuiti istantaneo - 1875...12500 A

    Icon for verifiedDOCUMENTATION

    Description

    Siemens 3VA26126HL320AA0

    Circuit breaker 3VA2 IEC frame 1250 breaking capacity class H Icu=85kA at 415 V 3-pole, system protection ETU320, LI, In=1250A overload protection Ir=500A ...1250A short-circuit protection Ii=1.5...10 x In spread busbar connections

    Technical data
     insulation voltage / rated value 800 V
    operating voltage / at AC / rated value 690 V
    Power dissipation [W] / max. 516 W
    power dissipation [W] / at nominal current value / with AC
    / in hot operating state / for each pole
    172 W
    mechanical life (operating cycles) / typ. 10 000
    electrical life (switching cycles) / with AC-1 / with
    380/415 V
    4 600
    electrical life (switching cycles) / at AC-1 / at 690 V 3 200
    product feature / for neutral conductor /
    upgradeable / short circuit protection and
    overload
    No
    Performing earth fault monitoring Without
    Product function
    ● communication function No
    ● other measurement function No
    Net weight per UQ 21.6 kg
