2800186 | Phoenix Contact

Description

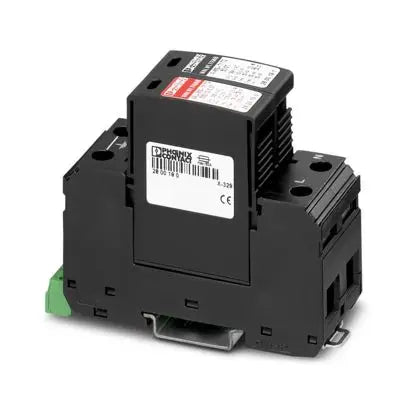

Phoenix Contact 2800186

Universal plug-in lightning/surge arrester consisting of varistor for single-phase power networks with separate N and PE (3-conductor system: L1, N, PE), with remote signal contact.

Technical data
 Product type Combination dischargers
VALVETRAB MS product family
IEC test class I / II
T1 / T2
Type EN T1 / T2
IEC TT Power Supply System
TN-S
Type Two-component plug-in guide module
Number of poles 2
Signaling of surge protection failure optical, FM contact



Product form

Phoenix Contact 2800186 Universal plug-in lightning/surge arrester consisting of varistor for single-phase power networks with separate N and PE (3-conductor... Read more

SKU: 2800186
Barcode: 4046356518574

IN STOCK

IT €347,22
€284,61 Excl. VAT

    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
    • HS CODE: 85363030
    Icon for cloud_dataSPECIFICATIONS

    • Configurazione di rete TT - sì
    • Corrente impulsiva di fulmine (10/350) - 50 kA
    • C2 Corrente impulsiva nominale di scarica (8/20) - 12.5 kA
    • Tensione massima continuativa AC - 335 V
    • Tensione massima continuativa DC - 30 V

    Icon for verifiedDOCUMENTATION

    Description

    Phoenix Contact 2800186

    Universal plug-in lightning/surge arrester consisting of varistor for single-phase power networks with separate N and PE (3-conductor system: L1, N, PE), with remote signal contact.

    Technical data
     Product type Combination dischargers
    VALVETRAB MS product family
    IEC test class I / II
    T1 / T2
    Type EN T1 / T2
    IEC TT Power Supply System
    TN-S
    Type Two-component plug-in guide module
    Number of poles 2
    Signaling of surge protection failure optical, FM contact
