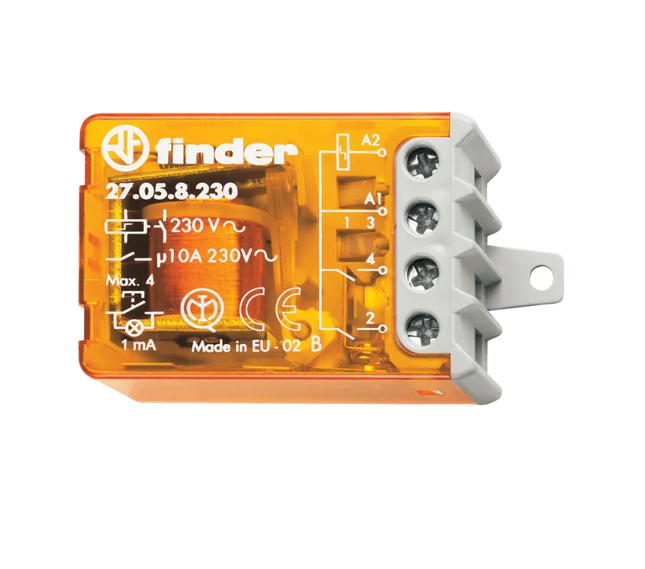

FINDER PULSE RELAY PANEL 10A 270582300000 Electromechanical impulse relay Type 27.06, with coil circuit and common excitation contacts.4-sequence switch 2 NOConnection with 24 illuminated pushbuttons via adapter 027.00. Features: • Sleeve terminals• AC coil• Panel mounting• Cadmium-free contacts• Italian patent Applications Corridor: light control (hotel, hospital, etc.) Bedroom light control Living room light control

Read more less

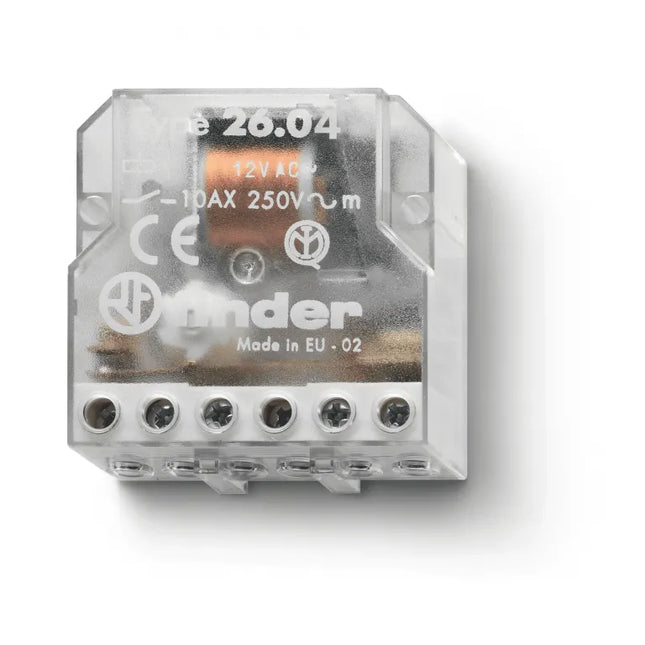

FINDER PULSE RELAY (STEP-BY-STEP) EMR 2 NO 10 A 260482300000 Type 26.04 is electromechanical pulse relay with separate coil circuit and contacts, with 2 NO contacts. Features: 6 sequences available Screw terminals AC coil Panel or flush mounting Cadmium-free contacts Applications Corridor: light control (hotel, hospital, etc.)Bedroom light controlLiving room light control

Read more less

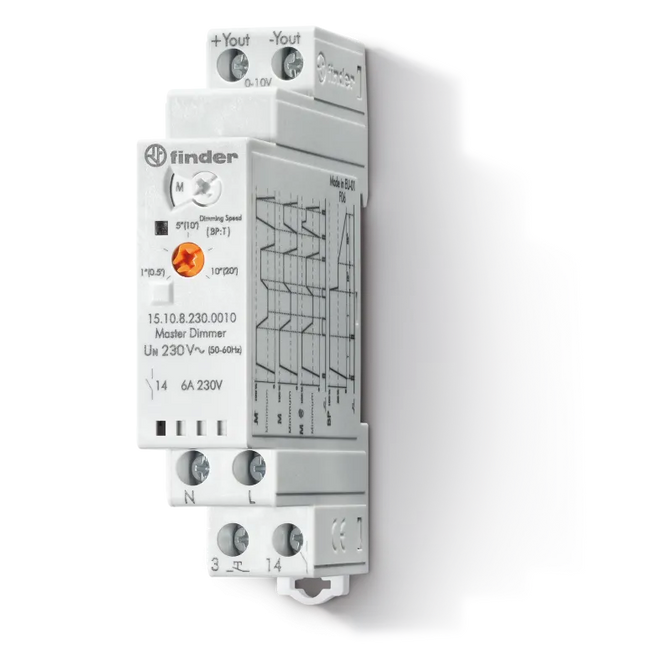

Finder Varialuce "Master" Dimmer 151082300010 "Master" dimmer Type 15.10 for multiple dimming of single or mixed lamp loads. Operated by buttons, it controls up to 32 "Slave" dimmers type 15.11, or lamps with power supply with input 0-10 V/1-10 V.The output 0-10 V/1-10 V can drive up to 32 "Slave" dimmers 15.11 or other similar devices. Technical characteristics:Dimensions: 17.5x84x56.5 mmManageable by app: NOSupply voltage: 230 VPower Supply Type: AC Power Supply TypeInstallation type: Master dimmer, 35 mm bar mounting (EN 60715), width a17.5 mm module, 0-10 V output

Read more less

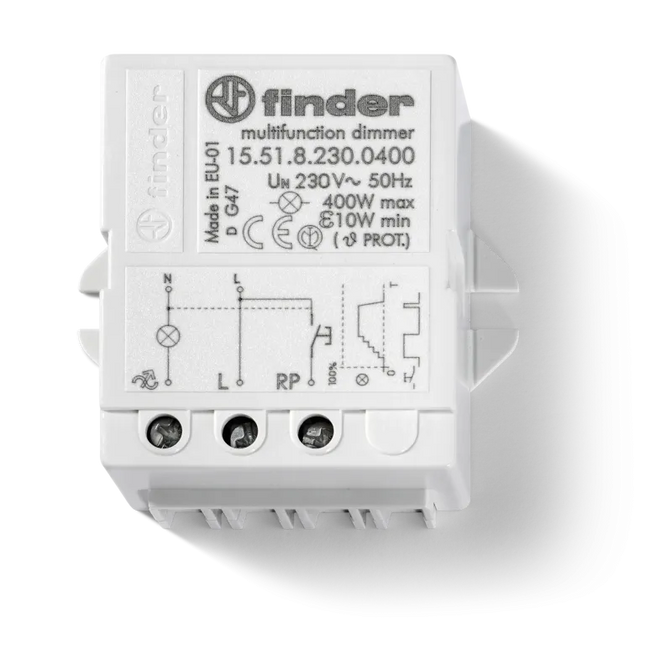

  Finder 400W panel dimmer 155182300400 Electronic dimmer compatible with 230 V incandescent/halogen lamps and dimmable LEDs. Can be used in both 3 and 4 wire systems. Equipped with "soft" on and off.Protection with thermal fuse Features: Panel or flush mounting Maximum switchable power 400 W Trailing edge adjustment method Two versions: stepped or linear adjustment Two types of programming: with or without memory of the light intensity 230 V AC power supply (separate models for 50 and 60 Hz)

Read more less

Finder slave dimmer 0-10V 17.5mm 400W 151182300400  “Slave” dimmer Type 15.11 with 1-10 V input driven by the 15.10, or by other devices with 0-10 V/1-10 V interface;Device suitable for controlling lamp loads. Features: Maximum switchable power 400 W Maximum power with lamps Low power (LED or CFL): 100 W Adjustment method Leading edge or Trailing edge (depending on the function) “Transformer” function (for use with electromechanical transformers) Minimum light intensity regulator One module width 17.5 mm, mounting on 35 mm rail (EN 60715) The Slave dimmer type 15.11 is compatible with Glowi and halogen lamps, both directly and through transformers or electronic ballasts.Also compatible with energy saving lamps, dimmable compact fluorescent lamps (CFL) or dimmable LEDs and with all types of electromechanical transformersEquipped with thermal overload protection, thermal fuse protection and short circuit protection.

Read more less

Finder Pulse relay (step-by-step) EMR 1 NO 10 A 260180240000 Electromechanical impulse relay with coil circuit and separate contacts with 1 NO contact, 6 sequences available, screw terminals and AC coil. Suitable for panel or recessed mounting Technical description: Pulse relay, Flush mounting screw terminals, Single pole switch 1 NO, 10 A, AC coil, 24 V, operation from 19.2 to 26.4 V, rated power 4.5 VA , resistance 70 Ω, absorption 180 mA, ambient temperature from -40 to +40 °C

Read more less

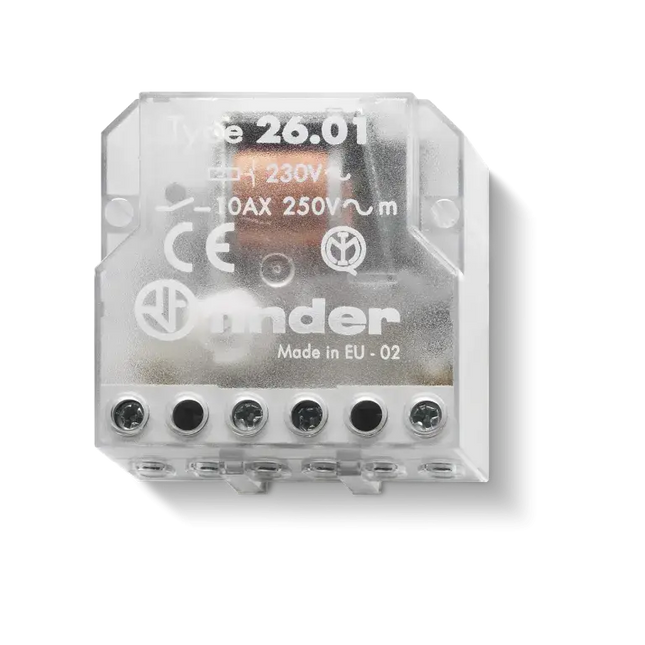

Finder Pulse relay (step-by-step) EMR 1 NO 10 A  260180120000  Electromechanical impulse relay with coil circuit and separate contacts with 1 NO contact, 6 sequences available, screw terminals and AC coil. Suitable for panel or recessed mounting Technical description: Pulse relay, Flush mounting screw terminals, Single pole switch 1 NO, 10 A, AC coil, 12 V, operation from 9.6 to 13.2 V, rated power 4.5 VA , resistance 17 Ω, absorption 370 mA, ambient temperature from -40 to +40 °C

Read more less

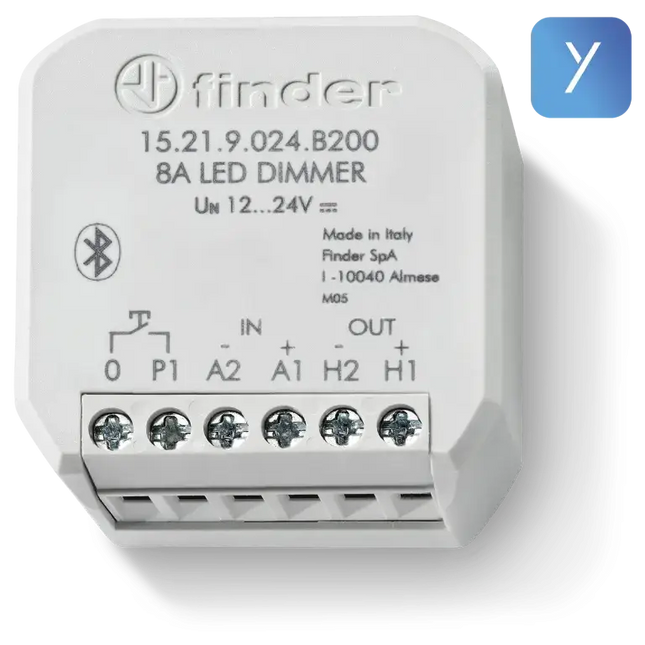

Finder connected light dimmer (dimmer) Yesly 152182300200 The Bluetooth Dimmer Type 15.21.9 is a device based on PWM technology, designed to control the light intensity of LED strips. It can be programmed via the app Finder Toolbox and can be controlled via smartphone and voice assistants.Suitable for mounting in a flush-mounted box. Features: Maximum load 8 A Maximum dimmable power 192W PWM technology Compatible with LED strips  Over temperature and short circuit protection and reverse polarity Supply voltage 12…24 V DC

Read more less

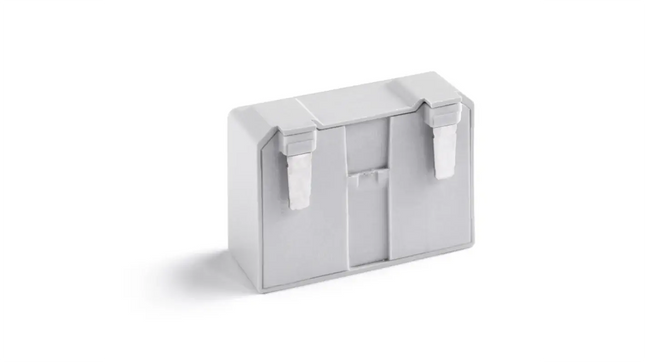

Finder capacitor for relay 02700 Module for illuminated buttons (230 V AC), in case of use of the 27 series relay with illuminated buttons it is necessary to mount the module in parallel to the relay coil (up to 24 illuminated buttons of 1 mA max, 230 V AC ). The module must be inserted directly onto the relay.

Read more less

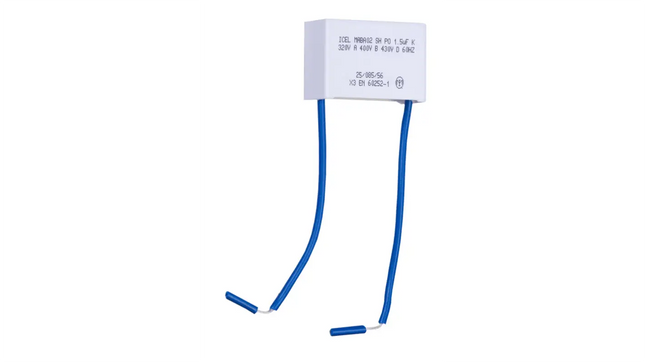

Finder SERIES 26 10 A step relay. 02600  If using the 26 series relay with illuminated buttons, it is necessary to mount a capacitor C = 1.5 μF in parallel to the relay coil (see figure) (up to 10 illuminated buttons of 1 mA max, 230 V AC). 1 or 2 pole electromechanical step relay with electrically separated coil and contact circuits• choice of 6 switching sequences• Connections with screw terminalsAC coil• Mounting on panelCadmium-free contact material

Read more less

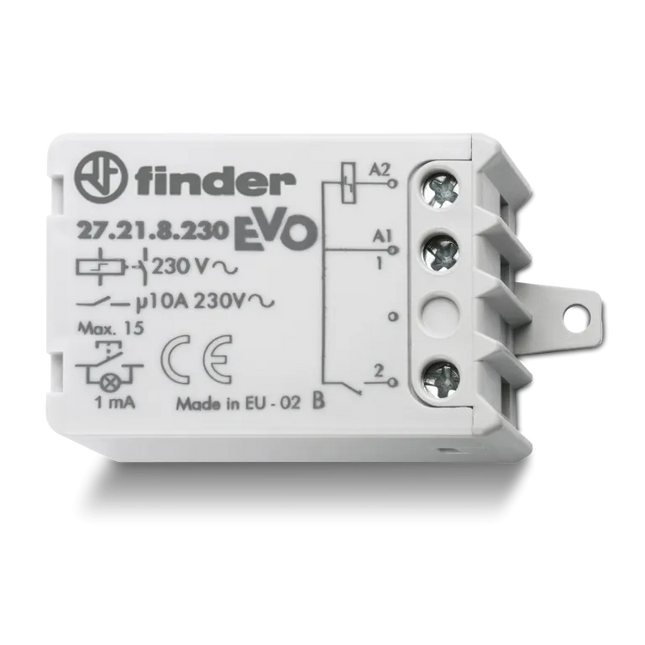

FINDER PULSE RELAY EVO PANEL 10A 272182300000 Electromechanical impulse relay Type 27.21, with coil circuit and common excitation contacts.Single pole switch 1 NOConnection with 15 illuminated pushbuttons without adapter – with coil power limiter. Features: • Sleeve terminals, with coil power limiter• AC coil• Panel mounting• Cadmium-free contacts• Italian patent Applications Light control living room, bedroom, corridors

Read more less

FINDER RELAY IMPULSE RELAY EVO PANEL 10A 272582300000 Type 27.25 electromechanical pulse relay, with coil circuit and common excitation contacts.Sleeve terminals, with coil power limiter. 4 sequence switch 2 NOConnection with 24 illuminated pushbuttons via adapter 027.00 . Features: • AC coil• Panel mounting• Cadmium-free contacts• Italian patent Applications Corridor: light control (hotel, hospital, etc.) Bedroom light control Living room light control
