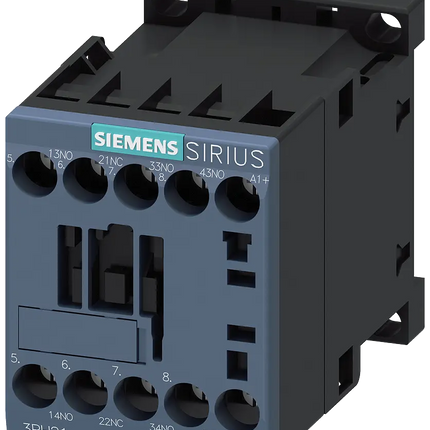

3RH21311BB40 | Siemens Auxiliary Contactor. 3 NO + 1 NC. DC 24V

Description

Siemens Auxiliary contactor, 3 NO + 1 NC, DC 24 V 3RH21311BB40

Auxiliary contactor, 3 NO + 1 NC, DC 24 V, size S00, screw terminal.

General technical data
Contactor size S00
Product expansion auxiliary switch block Yes
Power loss [W] at nominal current value without
Load current value typ. 4 W
insulation voltage with pollution degree 3 with AC
nominal value 690 V
pollution degree 3
impulse withstand voltage nominal value 6 kV
shock resistance with shock rectangular wave
● with DC 10g / 5 ms, 5g / 10 ms
sine wave shock resistance
● with DC 15g / 5 ms, 8g / 10 ms
mechanical lifespan (operating cycles)
● of the contactor typ. 30 000 000
● of the contactor with mounted auxiliary switch block
suitable for the electronics typ. 5 000 000
● of the contactor with mounted auxiliary switch block
typ. 10 000 000
reference code according to IEC 81346-2:2009 K
RoHS Directive (date) 10/01/2009

Environmental conditions
installation altitude by altitude above sea level max. 2 000 m
ambient temperature
● during operation -25 ... +60 °C
● during storage -55 ... +80 °C
relative humidity min. 10 %
relative humidity at 55 °C according to IEC 60068-2-30 max. 95 %

Environmental footprint
environmental product declaration (EPD) Yes
global warming potential [CO2 eq] total 133 kg
global warming potential [CO2 eq] during
manufacture
1.3 kg
global warming potential [CO2 eq] during operation 132 kg
global warming potential [CO2 eq] at the end of the cycle
life -0.227 kg

Main electrical circuit
no-load operating frequency
● with AC 10 000 1/h

Product form

Siemens Auxiliary contactor, 3 NO + 1 NC, DC 24 V 3RH21311BB40 Auxiliary contactor, 3 NO + 1 NC, DC... Read more

SKU: 3RH2131-1BB40
Barcode: 4011209848450

IN STOCK

IT €43,41
€35,58 Excl. VAT

    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
    • HS CODE: 85364900
    Icon for cloud_dataSPECIFICATIONS

    • Tensione nominale di comando Us DC - 24...24 V
    • Tipo di tensione per l'azionamento - DC
    • Corrente nominale di impiego Ie, 400 V - 3 A
    • Tipo di connessione al circuito ausiliare - Connessione a vite
    • Interfaccia - no

    Icon for verifiedDOCUMENTATION

    Description

    Siemens Auxiliary contactor, 3 NO + 1 NC, DC 24 V 3RH21311BB40

    Auxiliary contactor, 3 NO + 1 NC, DC 24 V, size S00, screw terminal.

    General technical data
    Contactor size S00
    Product expansion auxiliary switch block Yes
    Power loss [W] at nominal current value without
    Load current value typ. 4 W
    insulation voltage with pollution degree 3 with AC
    nominal value 690 V
    pollution degree 3
    impulse withstand voltage nominal value 6 kV
    shock resistance with shock rectangular wave
    ● with DC 10g / 5 ms, 5g / 10 ms
    sine wave shock resistance
    ● with DC 15g / 5 ms, 8g / 10 ms
    mechanical lifespan (operating cycles)
    ● of the contactor typ. 30 000 000
    ● of the contactor with mounted auxiliary switch block
    suitable for the electronics typ. 5 000 000
    ● of the contactor with mounted auxiliary switch block
    typ. 10 000 000
    reference code according to IEC 81346-2:2009 K
    RoHS Directive (date) 10/01/2009

    Environmental conditions
    installation altitude by altitude above sea level max. 2 000 m
    ambient temperature
    ● during operation -25 ... +60 °C
    ● during storage -55 ... +80 °C
    relative humidity min. 10 %
    relative humidity at 55 °C according to IEC 60068-2-30 max. 95 %

    Environmental footprint
    environmental product declaration (EPD) Yes
    global warming potential [CO2 eq] total 133 kg
    global warming potential [CO2 eq] during
    manufacture
    1.3 kg
    global warming potential [CO2 eq] during operation 132 kg
    global warming potential [CO2 eq] at the end of the cycle
    life -0.227 kg

    Main electrical circuit
    no-load operating frequency
    ● with AC 10 000 1/h
