Description

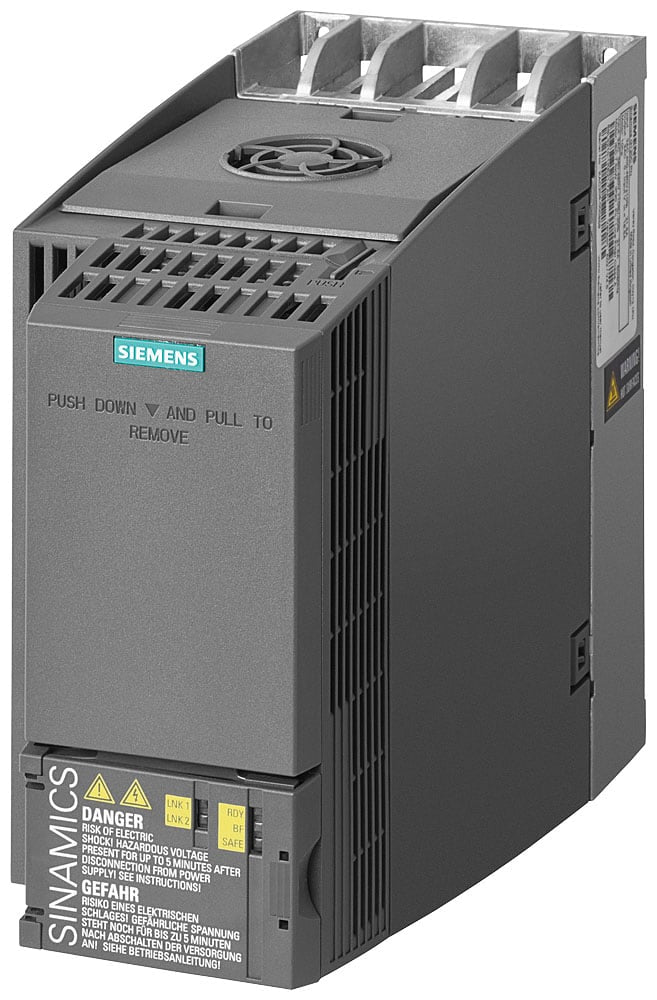

6SL32101KE213UF1 SIEMENS
SINAMICS G120C nominal power: 5.5kW with 150% overload for 3 seconds. 3AC380-480V+10/-20% 47-63Hz unfiltered I/O interface: 6DI, 2DO, 1AI, 1AO Integrated Safe-Torque-Off integrated fieldbus: PROFINET PN protection class IP20/UL Open type size: FSB 196x 100x 225.4 (AxLxP) 24V external SINAMICS G120C frequency converter. Versatile. User-friendly. Compact. For the most diverse applications, such as conveyors, mixers, pumps, fans, and compressors. With the integrated safety function Safe Torque Off (STO), STO via terminals/PROFIsafe eliminates the need for other external components. Commissioning and control are quick and easy with a PC via USB or through a Basic Operator Panel or an Intelligent Operator Panel or wirelessly via the SINAMICS G120 Smart Access Module. The network connection of the drives is done via standard fieldbus systems (PROFINET, PROFIBUS), and to make commissioning easier and more intuitive, there is a memory card slot available. To increase energy efficiency, the converter is equipped with precise vector control SLVC optimized for energy efficiency, and also features automatic flow reduction. The SINAMICS G120C covers the three-phase voltage range 3AC 380 V ... 480 V and is available in seven frame sizes with powers from 0.55 kW to 132 kW. The SINAMICS G120C frequency converter can be adapted with various options to meet specific user requirements. These options include local or mobile operator panels, connection cables, network filters, braking resistors, network reactors, and other accessories. Variable speed devices are an integral part of the Totally Integrated Automation (TIA) concept and interface optimally, for example, with SIMATIC controllers. The universal converter SINAMICS G120C is the successor to the MICROMASTER 420 frequency converter. SINAMICS - the drive that works for me.
