Description

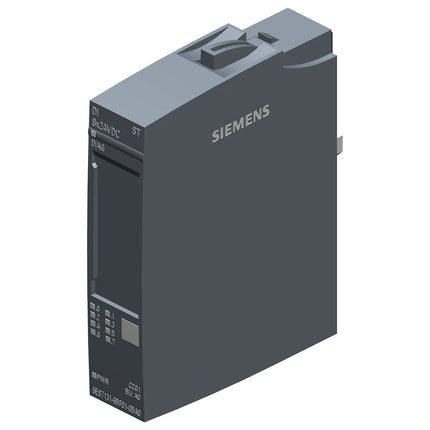

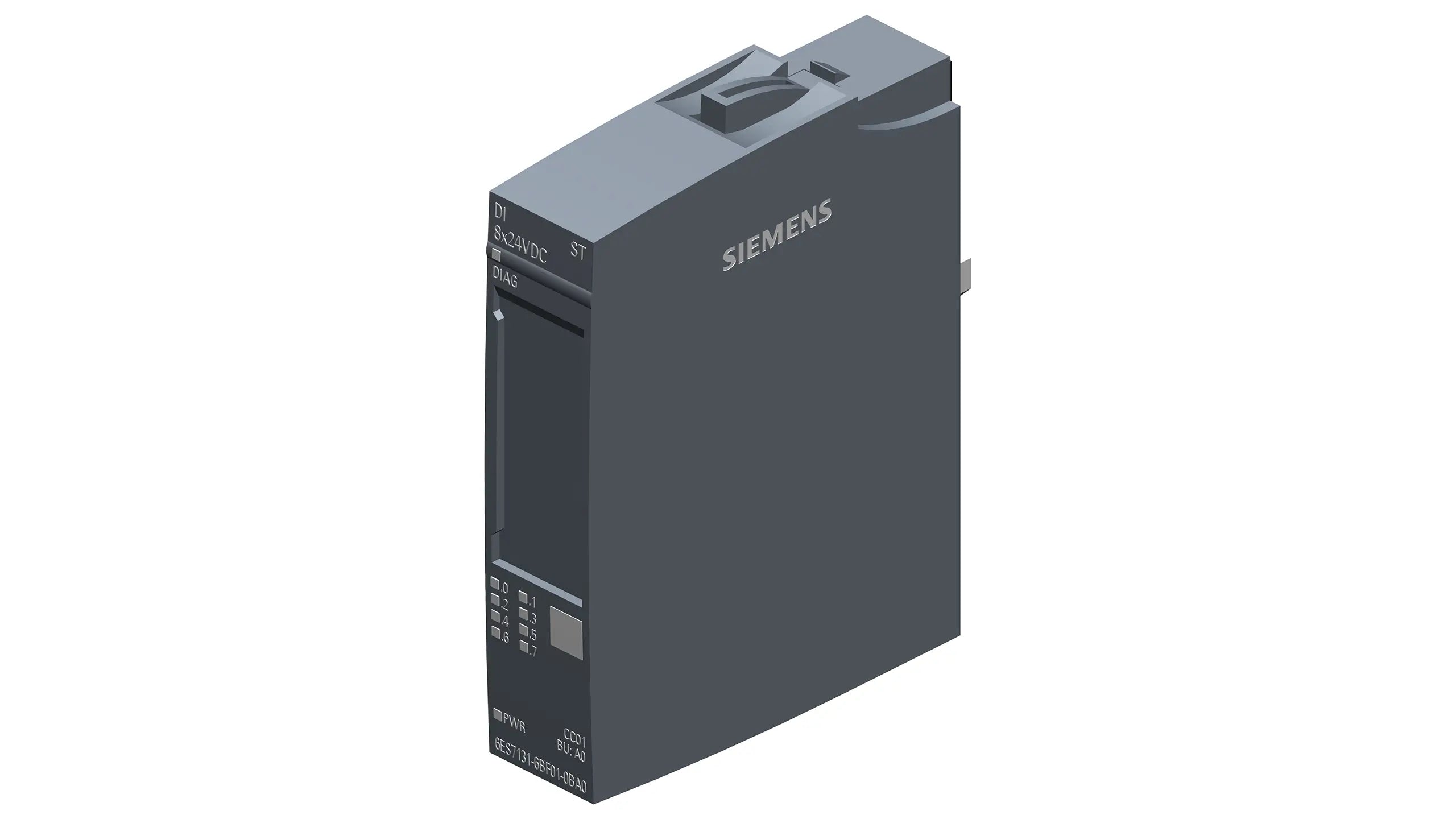

SIEMENS SIMATIC ET 200SP 6ES7131-6BF01-0BA0
Digital input module, DI 8x 24VDC Standard, Input type 3 (IEC 61131), Sink Input, (PNP, read on P), Packaging unit: 1 piece suitable for BU type A0, Color code CC01, Input delay 0.05..20ms; Diagnostics module for: short circuit in encoder supply, wire break, supply voltage.
General information
Product type designation: DI 8x24 VDC ST
Hardware version: From FS02
Firmware version: V0.0
● Possible FW update: No
Usable BaseUnits: BU type A0
Color code for specific color coding label of module: CC01
Supply voltage
Rated value (DC): 24 V
Allowable range, lower limit (DC): 19.2 V
Allowable range, upper limit (DC): 28.8 V
Reverse polarity protection : Yes
Transducer power supply
Number of outputs 8
Output voltage, min. 19.2 V
Short circuit protection Yes; per module
Transducer supply 24 V
● 24 V Yes
● Short-circuit protection Yes
● Output current, max. 700 mA
● Output current per channel, max. 700 mA
● Output current per module, max. 700 mA
Power dissipation
Power dissipation, typ. 1W; 24 V, 8 inputs powered by the transducer power supply
