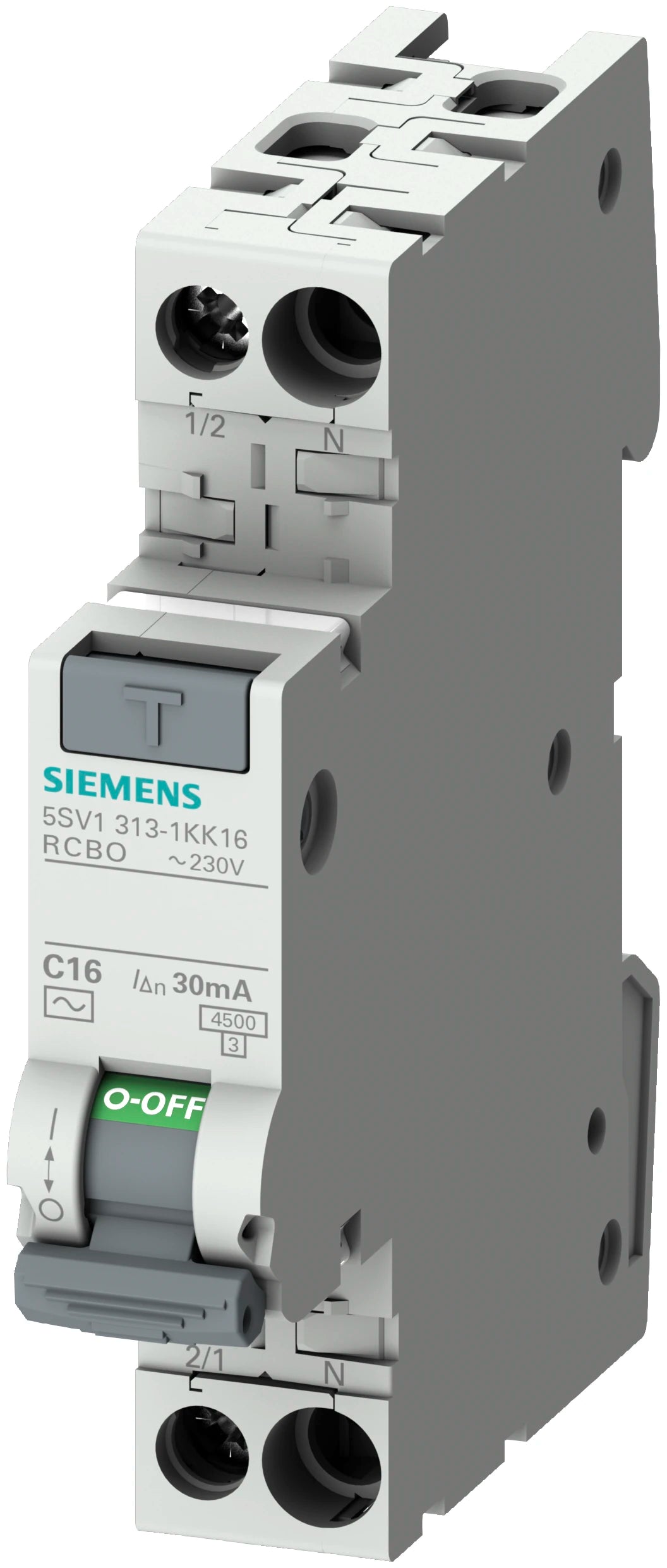

5SV13131KK16 | Siemens Differential circuit breaker 16a

Description

SIEMENS RCBO 16a MTD 1P+N 1UM 4.5KA TYPE AC 30MA C16                            5SV13131KK16

Compact residual current circuit breaker 1P+N 4.5 kA type AC 30 mA C16.

The differential switch is the fault current protection device against accidental contacts.

Number of protected poles: 1
Rated current: 16 A
Rated fault current: 0.03 A
Type differential: AC
With neutral: yes
Number of poles (total) : 2
Rated voltage: 230 V
Rated insulation voltage Ui: 253 V
Rated impulse voltage resistance Uimp: 4 kV
Limiting class: 3
Rated breaking capacity according to EN 61009: 4.5 kA
Rated breaking capacity according to IEC 60947-2: 5 kA
Rated short-circuit breaking capacity according to EN 61009-1: 4.5 kA
Switch-off characteristics: Non-delayed
Type voltage: AC
Tripping characteristic: C
With locking device: yes
Overvoltage category: 3
Pollution degree: 2
Ambient temperature during operation: -25.. .45 °C
Width in number of modules: 1
Recessing depth: 70 mm
Recess-mountable: yes
Protection against unexpected start-up: yes
Degree of protection (IP): IP20
Connectable single-wire (rigid) conductor section: 0.75...16 mm²
Connectable multi-wire (semi-rigid) conductor section: 0.75...16 mm²

5SV13131KK16 | Siemens Differential circuit breaker 16a

Product form

SKU: 5SV1313-1KK16
Barcode: 4001869557236

€28,73
