3RT10656NF36 | Siemens

Description

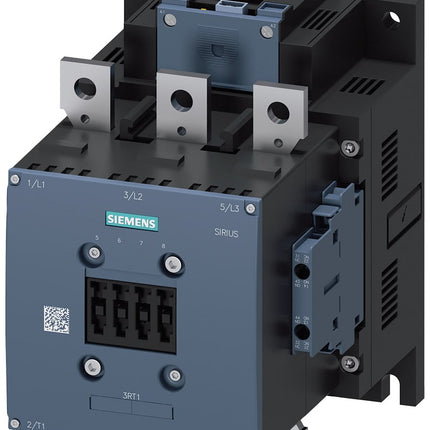

Siemens 3RT10656NF36

power contactor, AC-3 265 A, 132 kW / 400 V AC (50 ... 60 Hz) / DC control UC 96-127 V auxiliary contacts 2 NO + 2 NC 3-pole, size S10 busbar connections drive: electronic with PLC interface 24 V DC screw terminal SIRIUS 3RT1 power contactor for controlling motors.\nThe 3RT1 contactors are an integral part of the SIRIUS modular system with its products perfectly coordinated with each other. They convince with great power in a compact design and high contact reliability. They can be combined in various ways with other components in the starter. The contactors offer the optimal connection to the controller for each application (direct or via PLC input). Integrated auxiliary switch blocks reduce mounting complexity. The 3RT1 contactors are tropicalised, with international approvals (e.g. IEC and UL/CSA) and IE3/IE4ready.\nThese relays are available in different sizes and with a wide power range. They can be controlled in AC or DC, some variants are equipped with a wide voltage range and an input for PLC control. In the main circuit it is possible to connect the devices with busbars or combinable terminals. For the auxiliary and control circuit they are also available with spring-loaded terminals for quick, maintenance-free and vibration-resistant connection.\nNumerous accessories are available for these contactors, such as e.g. wiring kits, which significantly reduce the wiring effort, auxiliary switch blocks or terminal covers.\nSimple, efficient, always up-to-date - the SIRIUS modular system.

Product form

IN STOCK

SKU: 3RT10656NF36
Barcode: 4011209508019

€1.081,45

    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
    • HS CODE: 85364900
      DOCUMENTATION

    Documentation not available

    Description

    Siemens 3RT10656NF36

    power contactor, AC-3 265 A, 132 kW / 400 V AC (50 ... 60 Hz) / DC control UC 96-127 V auxiliary contacts 2 NO + 2 NC 3-pole, size S10 busbar connections drive: electronic with PLC interface 24 V DC screw terminal SIRIUS 3RT1 power contactor for controlling motors.\nThe 3RT1 contactors are an integral part of the SIRIUS modular system with its products perfectly coordinated with each other. They convince with great power in a compact design and high contact reliability. They can be combined in various ways with other components in the starter. The contactors offer the optimal connection to the controller for each application (direct or via PLC input). Integrated auxiliary switch blocks reduce mounting complexity. The 3RT1 contactors are tropicalised, with international approvals (e.g. IEC and UL/CSA) and IE3/IE4ready.\nThese relays are available in different sizes and with a wide power range. They can be controlled in AC or DC, some variants are equipped with a wide voltage range and an input for PLC control. In the main circuit it is possible to connect the devices with busbars or combinable terminals. For the auxiliary and control circuit they are also available with spring-loaded terminals for quick, maintenance-free and vibration-resistant connection.\nNumerous accessories are available for these contactors, such as e.g. wiring kits, which significantly reduce the wiring effort, auxiliary switch blocks or terminal covers.\nSimple, efficient, always up-to-date - the SIRIUS modular system.
