3RT10552XJ460LA2 | Siemens

Description

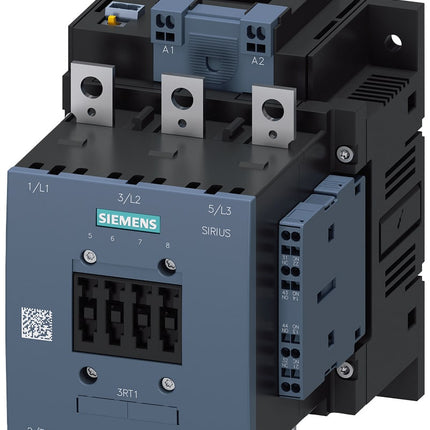

Siemens 3RT10552XJ460LA2

railway contactor, AC-3 150 A, 75 kW / 400 V coil DC 72V x (0.7-1.25) PLC input DC 24-110 V auxiliary contacts 2 NO + 2 NC 3-pole size S6 busbar connections coil connection terminal: spring terminal SIRIUS 3RT1 contactor for controlling motors under extreme conditions, e.g. for railway applications.\nThe 3RT1 contactors are an integral part of the SIRIUS modular system with its products perfectly matched to each other. They convince with great power in a compact design and high contact reliability. It is possible to combine them in many ways with other components in the startup. The contactors offer the optimal connection to the controller for each application (direct or via PLC input). Pre-assembled auxiliary switch blocks reduce mounting complexity. The 3RT1 contactors are tropicalized and have international approvals (e.g. IEC and UL/CSA) and IE3/IE4ready. This variant is characterized by an extended working and temperature range for more demanding environmental conditions.\nThese relays are available in different sizes and with a wide power range. They have a wide DC voltage range and an input for PLC control. In the main circuit it is possible to connect the devices with bars or cable clamps. For the auxiliary and control circuit they can also be supplied with spring-loaded terminals for quick, maintenance-free connection and resistant to shock and vibration.\nNumerous accessories are available for these contactors, such as e.g. wiring kits, which significantly reduce the wiring effort, auxiliary switch blocks or terminal covers.\nThe 3RT1 power contactors for extreme conditions replace the proven 3TB5 series.\nSimple, efficient, always up-to-date - the SIRIUS modular system.

Product form

IN STOCK

SKU: 3RT10552XJ460LA2
Barcode: 4047621022482

€816,20

    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
    • HS CODE: 85364900
      DOCUMENTATION

    Documentation not available

    Description

    Siemens 3RT10552XJ460LA2

    railway contactor, AC-3 150 A, 75 kW / 400 V coil DC 72V x (0.7-1.25) PLC input DC 24-110 V auxiliary contacts 2 NO + 2 NC 3-pole size S6 busbar connections coil connection terminal: spring terminal SIRIUS 3RT1 contactor for controlling motors under extreme conditions, e.g. for railway applications.\nThe 3RT1 contactors are an integral part of the SIRIUS modular system with its products perfectly matched to each other. They convince with great power in a compact design and high contact reliability. It is possible to combine them in many ways with other components in the startup. The contactors offer the optimal connection to the controller for each application (direct or via PLC input). Pre-assembled auxiliary switch blocks reduce mounting complexity. The 3RT1 contactors are tropicalized and have international approvals (e.g. IEC and UL/CSA) and IE3/IE4ready. This variant is characterized by an extended working and temperature range for more demanding environmental conditions.\nThese relays are available in different sizes and with a wide power range. They have a wide DC voltage range and an input for PLC control. In the main circuit it is possible to connect the devices with bars or cable clamps. For the auxiliary and control circuit they can also be supplied with spring-loaded terminals for quick, maintenance-free connection and resistant to shock and vibration.\nNumerous accessories are available for these contactors, such as e.g. wiring kits, which significantly reduce the wiring effort, auxiliary switch blocks or terminal covers.\nThe 3RT1 power contactors for extreme conditions replace the proven 3TB5 series.\nSimple, efficient, always up-to-date - the SIRIUS modular system.
