TA10D4S0504TPE | SCHNEIDER ELECTRIC

Description

TA10D4S0504TPE SCHNEIDER ELECTRIC

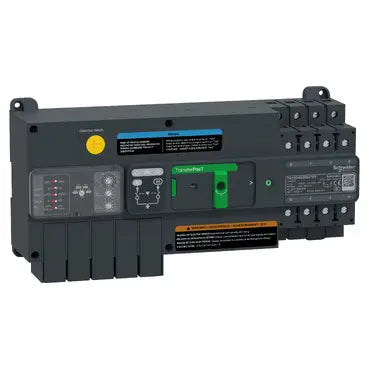

This TA10D4S0504TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage (Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current (Ie) can be loaded 50A (Ie) at 60°C, with 32-100A frame. The front has an inbuilt rotary display module which can be used for local control and setting, controlled by rotary/dip switch. This transfer switch provides 3 contact positions to the front by mechanical and electrical indication. It can be fixed on the Din rail or plate and positioned inside the power distribution cabinet. It also has some optional accessories in terms of different application scenes. This 4-pole version is 306mm(width)x145mm(height)x94.5mm(depth). It is compliant with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like fire-fighting equipment, smoke extract fans, sprinkler pumps, emergency lights, etc.

TA10D4S0504TPE | SCHNEIDER ELECTRIC

Product form

SKU: TA10D4S0504TPE
Barcode: 3606481065773

€2.203,39

    • HS CODE: 853649
    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
      DELIVERY TIMES

    The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

    The delivery times for goods in the “AVAILABLE EU WAREHOUSE” status are usually 3 to 5 working days and subject to unforeseeable variations.

    The delivery times for goods in the “MADE TO ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication

      DOCUMENTATION

    Documentation not available

    Description

    TA10D4S0504TPE SCHNEIDER ELECTRIC

    This TA10D4S0504TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage (Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current (Ie) can be loaded 50A (Ie) at 60°C, with 32-100A frame. The front has an inbuilt rotary display module which can be used for local control and setting, controlled by rotary/dip switch. This transfer switch provides 3 contact positions to the front by mechanical and electrical indication. It can be fixed on the Din rail or plate and positioned inside the power distribution cabinet. It also has some optional accessories in terms of different application scenes. This 4-pole version is 306mm(width)x145mm(height)x94.5mm(depth). It is compliant with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like fire-fighting equipment, smoke extract fans, sprinkler pumps, emergency lights, etc.
