Description

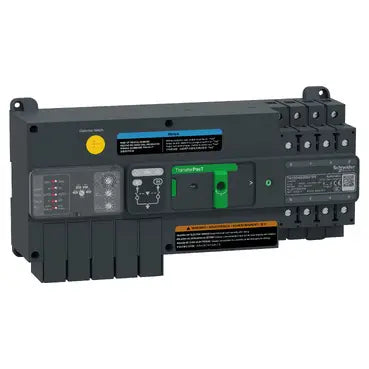

TA10D3S0634TPE SCHNEIDER ELECTRIC

This TA10D3S0634TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities, and the transportation industry. The rated operational voltage (Ue) is 400VAC@50/60Hz. This change source is of AC-33B utilization category. The rated current (Ie) can be loaded at 63A (Ie) at 60°C, with a 32-100A frame. The front has an inbuilt rotary display module which can be used for local control and setting, controlled by rotary/dip switch. This transfer switch provides 3 contact positions to the front with mechanical and electrical indication. It can be fixed on the Din rail or plate and positioned inside a power distribution cabinet. It also has some optional accessories for different application scenarios. This 3-pole version measures 306mm (width) x 145mm (height) x 94.5mm (depth). It complies with standard IEC 60947-6-1 and is certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like fire-fighting equipment, smoke extract fans, sprinkler pumps, emergency lights, etc.

TA10D3S0634TPE | SCHNEIDER ELECTRIC

Product form

SKU: TA10D3S0634TPE
Barcode: 3606481065728

€2.124,96

  •  Made to order - Delivery in 2-6 weeks
  • HS CODE: 853649
  • STANDARD RETURN
  • QUICK DELIVERY ASSURED
  DELIVERY TIMES

The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

The delivery times for goods in the “AVAILABLE EU WAREHOUSE” status are usually 3 to 5 working days and subject to unforeseeable variations.

The delivery times for goods in the “MADE TO ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication

  DOCUMENTATION

Documentation not available

Description

TA10D3S0634TPE SCHNEIDER ELECTRIC

This TA10D3S0634TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities, and the transportation industry. The rated operational voltage (Ue) is 400VAC@50/60Hz. This change source is of AC-33B utilization category. The rated current (Ie) can be loaded at 63A (Ie) at 60°C, with a 32-100A frame. The front has an inbuilt rotary display module which can be used for local control and setting, controlled by rotary/dip switch. This transfer switch provides 3 contact positions to the front with mechanical and electrical indication. It can be fixed on the Din rail or plate and positioned inside a power distribution cabinet. It also has some optional accessories for different application scenarios. This 3-pole version measures 306mm (width) x 145mm (height) x 94.5mm (depth). It complies with standard IEC 60947-6-1 and is certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like fire-fighting equipment, smoke extract fans, sprinkler pumps, emergency lights, etc.
