Description

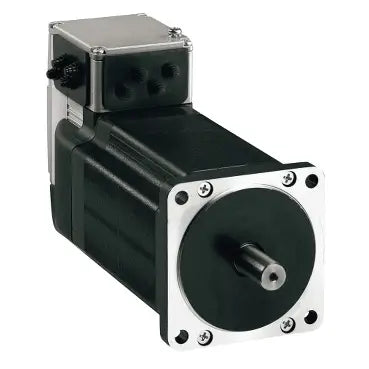

ILS1F851PC1A0 SCHNEIDER ELECTRIC
This product is part of the Lexium ILA, ILE, ILS range, an offer of integrated drives for motion control. This is an integrated drive with a stepper motor, without gearbox, without holding brake. The feedback is given by an index pulse. Its nominal speedis 200rpm at 24VDC, 400rpm at 36VDC. Its nominal torque is 2.0Nm. It embeds 4 signals which can be used as input or output. This integrated drive consists of control electronics with a communication interface for CANopen DS301 bus, and a 3-phase stepper motor. Its transmission rates are 50, 100, 125, 250, 500, 800 and 1000kbauds. The electrical connection is made on an industrial connector. Its motor flange size is 57mm. It installs with 4x 5.2mm mounting holes. The circle diameter of the mounting holes is 66.6mm. It weighs 2.0kg. It integrates a CANopen DS301 interface. This product is certified by cUL, TÜV and UL. It is compatible with pre-assembled cables for CANopen interface and power supply. Those mounting positions are allowed per IEC 60034-7 as IM B5 shaft horizontal, IM V1 shaft vertical, shaft end down, IM V3 shaft vertical, shaft end up. Lexium-integrated drives are used to create decentralized motion control solutions in very compact units. integrated Drives for motion control with stepper, servo or brushless DC motor.
