GV5P150F | SCHNEIDER ELECTRIC

Description

Description

GV5P150F SCHNEIDER ELECTRIC

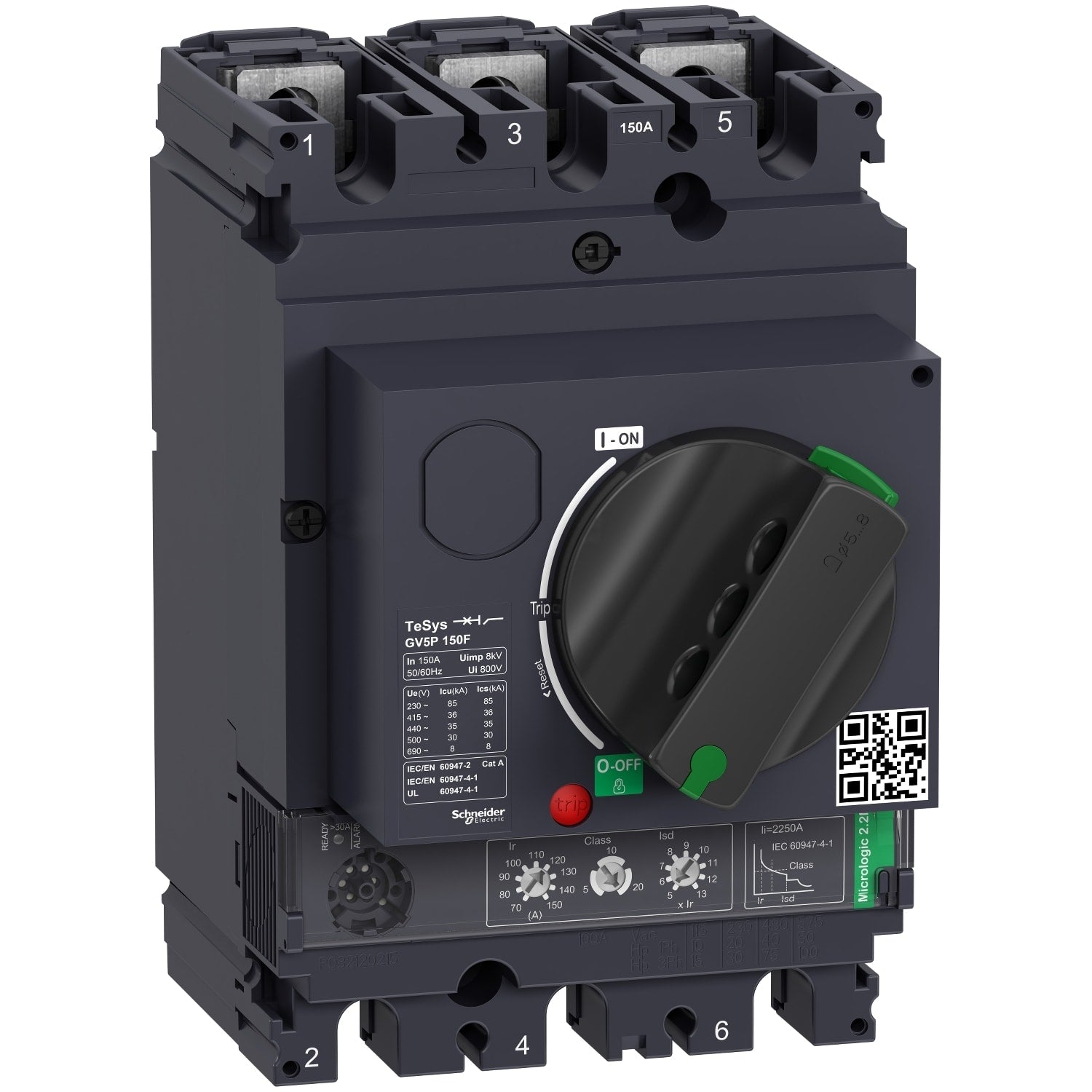

Motor switch TeSys GV, 3 poles (3P), 150 A/690 V, for the protection of 3-phase motors 55-75 kW at 400 V. Provides magnetic and thermal protection and additional protection, breaking capacity Icu 36 kA, Start-Stop control via rotary operation, connection for busbars or cables with connectors (direct connection of cables with additional connectors). Adjustable thermal protection via dials with a setting current Ir in the range of 70-150A and a selectable trip class of 5, 10, or 20, magnetic protection at 15 In. Additional protections with fixed pick-up include short delay protection Isd at 13 Ir, phase imbalance protection, and loss protection. Provides internal positions for additional auxiliary contact blocks (OF, SD) and voltage releases (MN, MX). Certification according to various standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliance (RoHS/REACh).

GV5P150F | SCHNEIDER ELECTRIC

Product form

SKU: GV5P150F
Barcode: 3606489915407

BACK-ORDER

€417,63

    Free pickup in our shop(s)
    • HS CODE: 85362010
    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
      DELIVERY TIMES

    The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

    The delivery times for goods in the “AVAILABLE AT PARTNER” status are usually 3 to 5 working days and subject to unforeseeable variations.

    The delivery times for goods in the “BACK-ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication

      DOCUMENTATION

    Documentation not available

    Description

    Description

    GV5P150F SCHNEIDER ELECTRIC

    Motor switch TeSys GV, 3 poles (3P), 150 A/690 V, for the protection of 3-phase motors 55-75 kW at 400 V. Provides magnetic and thermal protection and additional protection, breaking capacity Icu 36 kA, Start-Stop control via rotary operation, connection for busbars or cables with connectors (direct connection of cables with additional connectors). Adjustable thermal protection via dials with a setting current Ir in the range of 70-150A and a selectable trip class of 5, 10, or 20, magnetic protection at 15 In. Additional protections with fixed pick-up include short delay protection Isd at 13 Ir, phase imbalance protection, and loss protection. Provides internal positions for additional auxiliary contact blocks (OF, SD) and voltage releases (MN, MX). Certification according to various standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliance (RoHS/REACh).
