BMH0702P16F2A | SCHNEIDER ELECTRIC

Description

BMH0702P16F2A SCHNEIDER ELECTRIC

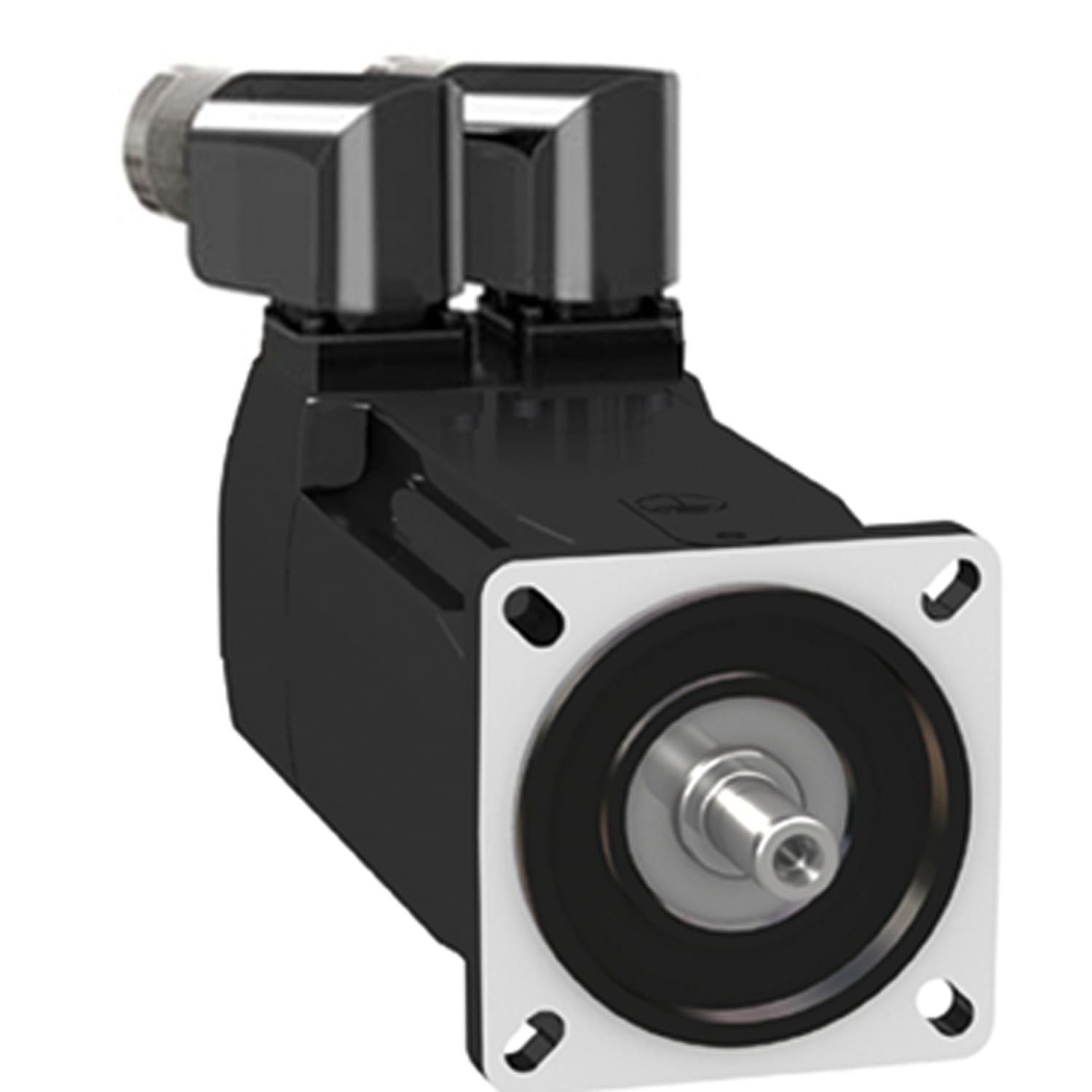

The product is part of the Lexium 32 range, an offering of servo drives and servomotors for motion control for machines from 0.15 kW to 7 kW. The 10-pole servomotor features an average inertia with a maximum mechanical speed of 8000 RPM, a shaft with a keyway, and a holding brake. It is equipped with a Hiperface® SinCos encoder (32768 points/revolution) for the automatic transmission of data from the servomotor to the servo drive. The BMH servomotor is a medium inertia motor, particularly suitable for high load applications, allowing for more robust motion control. It is a synchronous servomotor with a nominal supply voltage of 480 V, a continuous stall current of 2.94A, and a continuous power of 1.51 W. The shaft dimensions are 11 mm (diameter) x 23 mm (length). It includes 90° rotatable connectors for electrical connection. The product is rated IP54. Dimensions: 193 mm (length) x 70 mm (width). Centering collar dimensions: 2.5 mm (depth) x 60 mm (diameter) with a mounting hole diameter of 82 mm. Weight: 3.3 kg. The product is compatible with Lexium 32 servo drives. It supports standard 70 mm international flange mounting with a natural convection cooling system. The encoder provides the absolute position of the motor so that the flows can be synchronized and sends data from the servomotor to the servo drive. This allows for automatic motor identification at the servo drive startup. BMH servomotor with a 3-phase stator and neodymium-iron-boron (NdFeB) magnets. Housing with a protective matte black RAL 9005 paint coating. Axial mounting flange with 4 points. Cables and connectors must be ordered separately.

BMH0702P16F2A | SCHNEIDER ELECTRIC

Product form

SKU: BMH0702P16F2A
Barcode: 3606485193809

€1.024,24

  •  Made to order - Delivery in 2-6 weeks
  • HS CODE: 85015290
  • STANDARD RETURN
  • QUICK DELIVERY ASSURED
  DELIVERY TIMES

The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

The delivery times for goods in the “AVAILABLE EU WAREHOUSE” status are usually 3 to 5 working days and subject to unforeseeable variations.

The delivery times for goods in the “MADE TO ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication

  DOCUMENTATION

Documentation not available

Description

BMH0702P16F2A SCHNEIDER ELECTRIC

The product is part of the Lexium 32 range, an offering of servo drives and servomotors for motion control for machines from 0.15 kW to 7 kW. The 10-pole servomotor features an average inertia with a maximum mechanical speed of 8000 RPM, a shaft with a keyway, and a holding brake. It is equipped with a Hiperface® SinCos encoder (32768 points/revolution) for the automatic transmission of data from the servomotor to the servo drive. The BMH servomotor is a medium inertia motor, particularly suitable for high load applications, allowing for more robust motion control. It is a synchronous servomotor with a nominal supply voltage of 480 V, a continuous stall current of 2.94A, and a continuous power of 1.51 W. The shaft dimensions are 11 mm (diameter) x 23 mm (length). It includes 90° rotatable connectors for electrical connection. The product is rated IP54. Dimensions: 193 mm (length) x 70 mm (width). Centering collar dimensions: 2.5 mm (depth) x 60 mm (diameter) with a mounting hole diameter of 82 mm. Weight: 3.3 kg. The product is compatible with Lexium 32 servo drives. It supports standard 70 mm international flange mounting with a natural convection cooling system. The encoder provides the absolute position of the motor so that the flows can be synchronized and sends data from the servomotor to the servo drive. This allows for automatic motor identification at the servo drive startup. BMH servomotor with a 3-phase stator and neodymium-iron-boron (NdFeB) magnets. Housing with a protective matte black RAL 9005 paint coating. Axial mounting flange with 4 points. Cables and connectors must be ordered separately.
