BMH0701P01F2A | SCHNEIDER ELECTRIC

Description

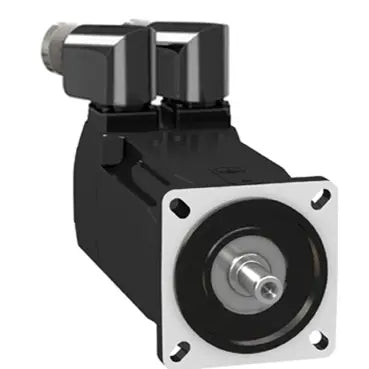

BMH0701P01F2A SCHNEIDER ELECTRIC

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end with holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 161mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 2.6kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.U60N4 at 400V to 480V three phase and LXM32.D12N4 at 400V to 480V three phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Product form

IN STOCK

SKU: BMH0701P01F2A
Barcode: 3606485198835

€1.157,39

    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
    • HS CODE: 85015290
      DOCUMENTATION

    Documentation not available

    Description

    BMH0701P01F2A SCHNEIDER ELECTRIC

    This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end with holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 161mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 2.6kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.U60N4 at 400V to 480V three phase and LXM32.D12N4 at 400V to 480V three phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

    • Warranty

      12 month warranty. For more information visit Termini e Condizioni

    • Return Policy

      Standard. For more information visit Terms and Conditions

    • E-mail

      Contact us via email info@dmstechmart.com and we will try to respond to you as quickly as possible

    • Telephone

      We are at your disposal for further information by telephone at +39 0230567159 from Monday to Friday from 09.00 to 18.00 (CET).
