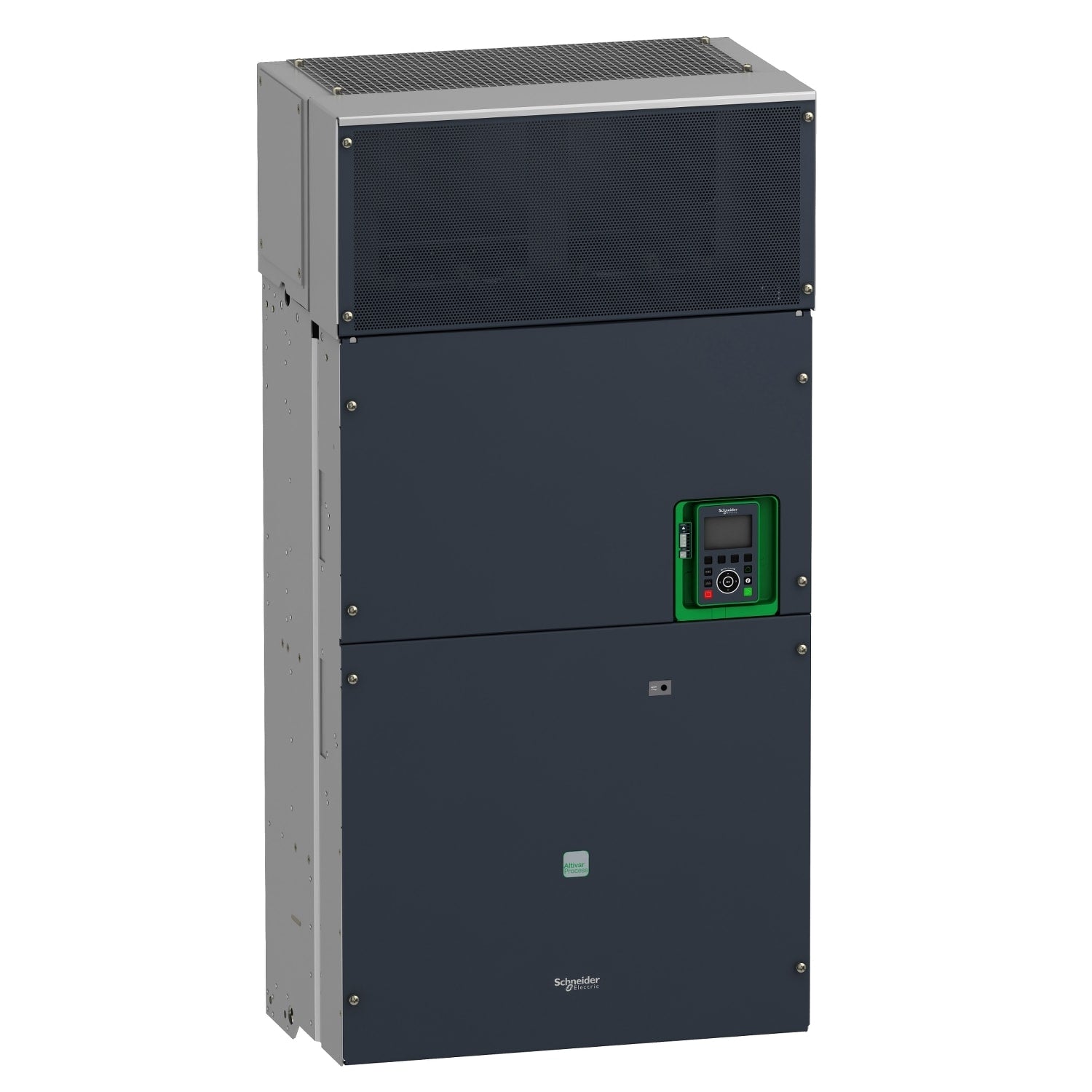

ATV930C31N4C SCHNEIDER ELECTRIC
ATV930 speed variator, 315kW, 400/480V, without braking unit, IP00. Product range: Altivar Process ATV900 - product or component type: speed variator - application: industrial application - abbreviated name: ATV930 - variant: standard version, without braking chopper - product application: asynchronous motors, synchronous motors - mounting mode: wall mounting - IP protection rating: IP00 conforming to IEC 60529, IP00 conforming to IEC 61800-5-1, IP21 conforming to IEC 60529 with kit VW3A9113 without braking unit, IP21 conforming to IEC 60529 with kit VW3A9114 with braking unit, IP21 conforming to IEC 61800-5-1 with kit VW3A9113 without braking unit, IP21 conforming to IEC 61800-5-1 with kit VW3A9114 with braking unit - cooling type: forced convection - motor power in kW: 250 kW (heavy duty), 315 kW (normal duty) - motor power in hp: 400 hp (heavy duty), 500 hp (normal duty) - line current: 375 A at 480 V (heavy duty), 457 A at 380 V (heavy duty), 461 A at 480 V (normal duty), 569 A at 380 V (normal duty) - presumed line Isc: 50 kA - apparent power: 286 kVA at 480 V (heavy duty), 351 kVA at 480 V (normal duty) - continuous output current: 481 A at 2.5 kHz (heavy duty), 616 A at 2.5 kHz (normal duty) - maximum transient current: 722 A for 60 s (heavy duty), 739 A for 60 s (normal duty) - asynchronous motor control profile: constant standard torque, variable standard torque, optimized torque mode - synchronous motor control profile: permanent magnet motor - output frequency of the speed variator: 0.1...599 Hz - nominal switching frequency: 2.5 kHz - switching frequency: adjustable 1...8 kHz, 2.5...8 kHz with derating factor - digital input logic: 16 preset speeds - compatibility: Ethernet/IP, Modbus serial, Modbus TCP - option card: slot A: communication module for CANopen screw terminal, slot A: communication module for CANopen SUB-D 9, slot A: communication module for cascading CANopen RJ45 connection, slot A: communication module for DeviceNet, slot A: communication module for EtherCAT, slot A: communication module for Profibus DP V1, slot A: communication module for Profinet, slot A/slot B/slot C: input/output extension card, slot A/slot B/slot C: relay output extension card, slot B: 5/12 V digital encoder interface module, slot B: analog encoder interface module, slot B: resolver encoder interface module. Benefits: .. Applications: .. Benefits: Services Oriented Drives. This new inverter concept meets the main needs of the industrial process and utility world in terms of plant efficiency and total cost of ownership (Total Cost of Ownership), promoting intelligent energy management, improving asset lifecycle management and also the overall performance of the process: . • Sustainable savings thanks to integrated predictive maintenance algorithms. • Reduction of plant downtime by up to 20%.. Process efficiency. Altivar Process ATV900 is designed to maximize motor performance and facilitate network connectivity: . • Excellent control performance for any type of motor, in open loop and closed loop speed. • Dual Ethernet port to ensure total transparency within the automation system. • Management of network services to ensure operational continuity in the event of a fault on the channel of connection.. • Fast fault finding and preventive maintenance to reduce plant downtime thanks to the web server and integrated data logging. Complete control of your application. • MultiDrive Link communication functionality to synchronize multiple drives in Master/Slave applications. • Torque and speed control to optimally manage every mechanical coupling application, whether rigid or elastic. • Asset management to maximize production and reduce plant downtime.. Real Time Intelligence. Web Server and services over Ethernet. • Integrated Ethernet Web Server for simple and intuitive inverter configuration and for monitoring application data. • Availability anytime and anywhere: real-time access to energy data from the plant locally or remotely via PC, tablet, and smartphone... Inverter in a uniquely designed panel. Schneider Electric, with its experience in inverter design and applications, is able to provide specific solutions for your process needs and for the immediate integration of the inverter within the plant: . • Minimization of design and delivery issues. • Optimization of installation and commissioning time.. Designed for the most severe conditions. Compact and modular, Altivar Process is a perfect inverter for both retrofitting and new installations. It is designed to withstand the most severe operating conditions, both environmentally and electrically.. Regenerative Functionality. ATV980 is the panel offering of Altivar Process that allows energy recovery during braking back to the grid. Among the main advantages: • Operation on 4 quadrants, with no discontinuities in the transitions from motor operation to generator. • Possibility of installing and connecting multiple inverters within the panel to optimize energy exchanges between different units. • Completely adaptable design to customer specifications.. Braking. The braking resistors allow for quick stops, dissipating the kinetic energy of braking.. They are designed to ensure the maximum braking torque deliverable by the drive. • IP23 protection rating for installation outside the panel to take advantage of natural cooling. • External braking units available in IP20 and IP23 with integrated thermal protection via temperature probe.. Applications: Altivar Process ATV900 is designed for the industrial and process sectors, particularly Oil & Gas, Extractive, and Metallurgical. It is suitable for mechanical applications that require high torque and dynamics, such as lifting systems, overhead cranes, special cranes, industrial centrifuges, mixers, and conveyor belts....
