2866268 | Phoenix Contact Trio-PS/1AC/24DC/ 2.5

Description

Phoenix Contact Trio-PS/1AC/24DC/ 2.5 2866268

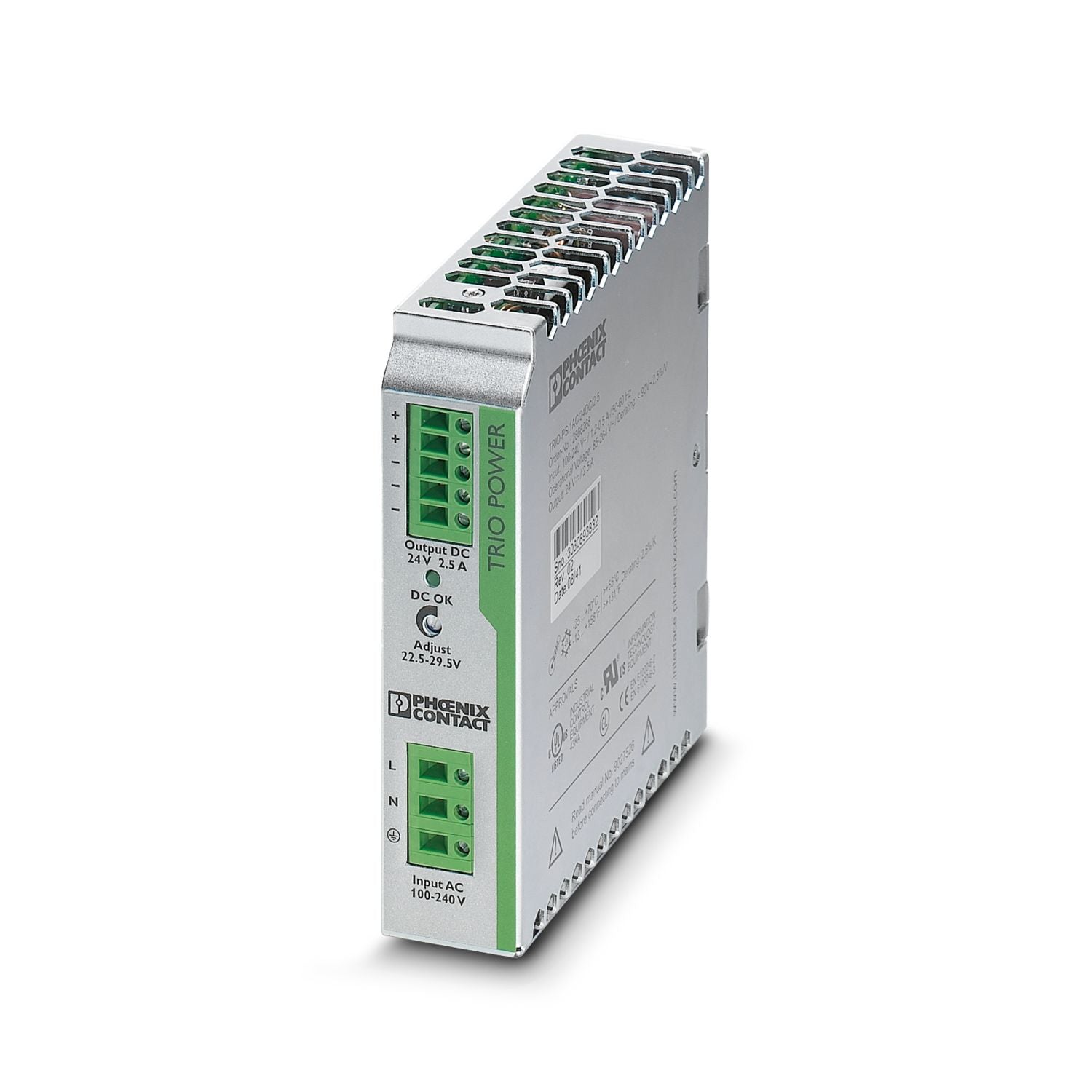

TRIO POWER switching power supply for rail mounting, input: single phase, output: 24 V DC / 2.5 A.

Technical data

Type of supply voltage: AC

Output voltage 1: 22.5...29.5 V

Output voltage 2: 22.5...22.5 V

Max. output current 1: 2.5 A

Adjustable output voltage: yes

Output voltage rating 1: 24 V

Output current rating 1: 2.5 A

Short-circuit proof: yes

Rated AC supply voltage 50 Hz: 100...240 V

Nominal AC supply voltage 60 Hz: 100...240 V

Stabilized output voltage: yes

Power consumption: 0.5 VA

Output power: 60 W

Stabilised: yes

Type of electrical connection: Screw connection

Possibility of rail mounting: yes

Wall mountable: no

Suitable for modular mounting: no

Recess width: 32 mm

Recess height: 130 mm

Direct mounting possible: no

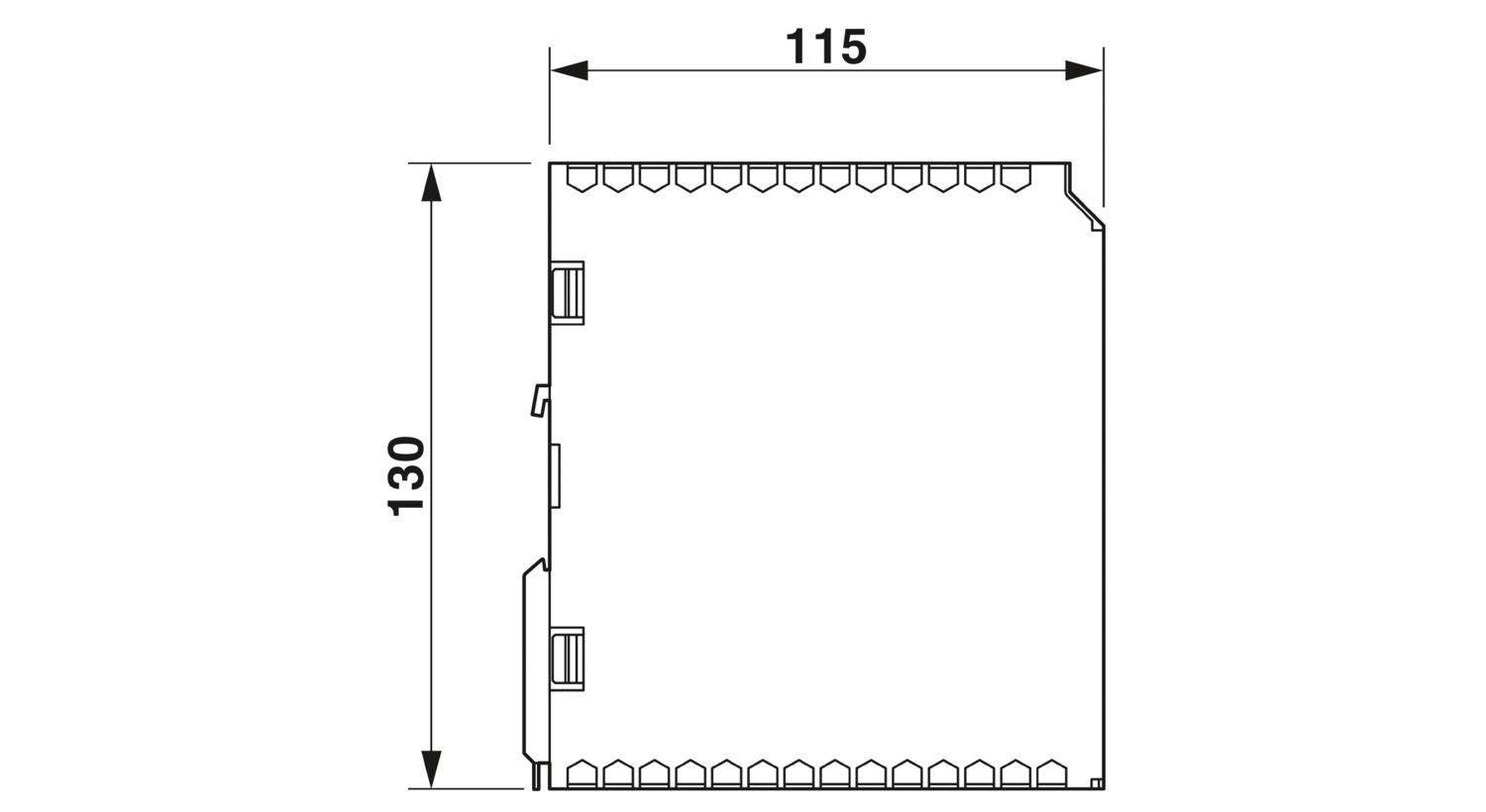

Width: 32 mm

Height: 130 mm

Depth: 115 mm

Suitable for safety functions: yes

SIL according to IEC 61508: None

Performance level compliant with EN ISO 13849-1: None

Protection degree (IP): IP20

2866268 | Phoenix Contact Trio-PS/1AC/24DC/ 2.5

Product form

SKU: 2866268
Barcode: 4046356046626

€112,32

    • HS CODE: 85044030
    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
      DELIVERY TIMES

    The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

    The delivery times for goods in the “AVAILABLE EU WAREHOUSE” status are usually 3 to 5 working days and subject to unforeseeable variations.

    The delivery times for goods in the “MADE TO ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication

      DOCUMENTATION

    Description

    Phoenix Contact Trio-PS/1AC/24DC/ 2.5 2866268

    TRIO POWER switching power supply for rail mounting, input: single phase, output: 24 V DC / 2.5 A.

    Technical data

    Type of supply voltage: AC

    Output voltage 1: 22.5...29.5 V

    Output voltage 2: 22.5...22.5 V

    Max. output current 1: 2.5 A

    Adjustable output voltage: yes

    Output voltage rating 1: 24 V

    Output current rating 1: 2.5 A

    Short-circuit proof: yes

    Rated AC supply voltage 50 Hz: 100...240 V

    Nominal AC supply voltage 60 Hz: 100...240 V

    Stabilized output voltage: yes

    Power consumption: 0.5 VA

    Output power: 60 W

    Stabilised: yes

    Type of electrical connection: Screw connection

    Possibility of rail mounting: yes

    Wall mountable: no

    Suitable for modular mounting: no

    Recess width: 32 mm

    Recess height: 130 mm

    Direct mounting possible: no

    Width: 32 mm

    Height: 130 mm

    Depth: 115 mm

    Suitable for safety functions: yes

    SIL according to IEC 61508: None

    Performance level compliant with EN ISO 13849-1: None

    Protection degree (IP): IP20
