1018299 | Phoenix Contact Essential PS/3AC/24DC/480W/EE

Description

Description

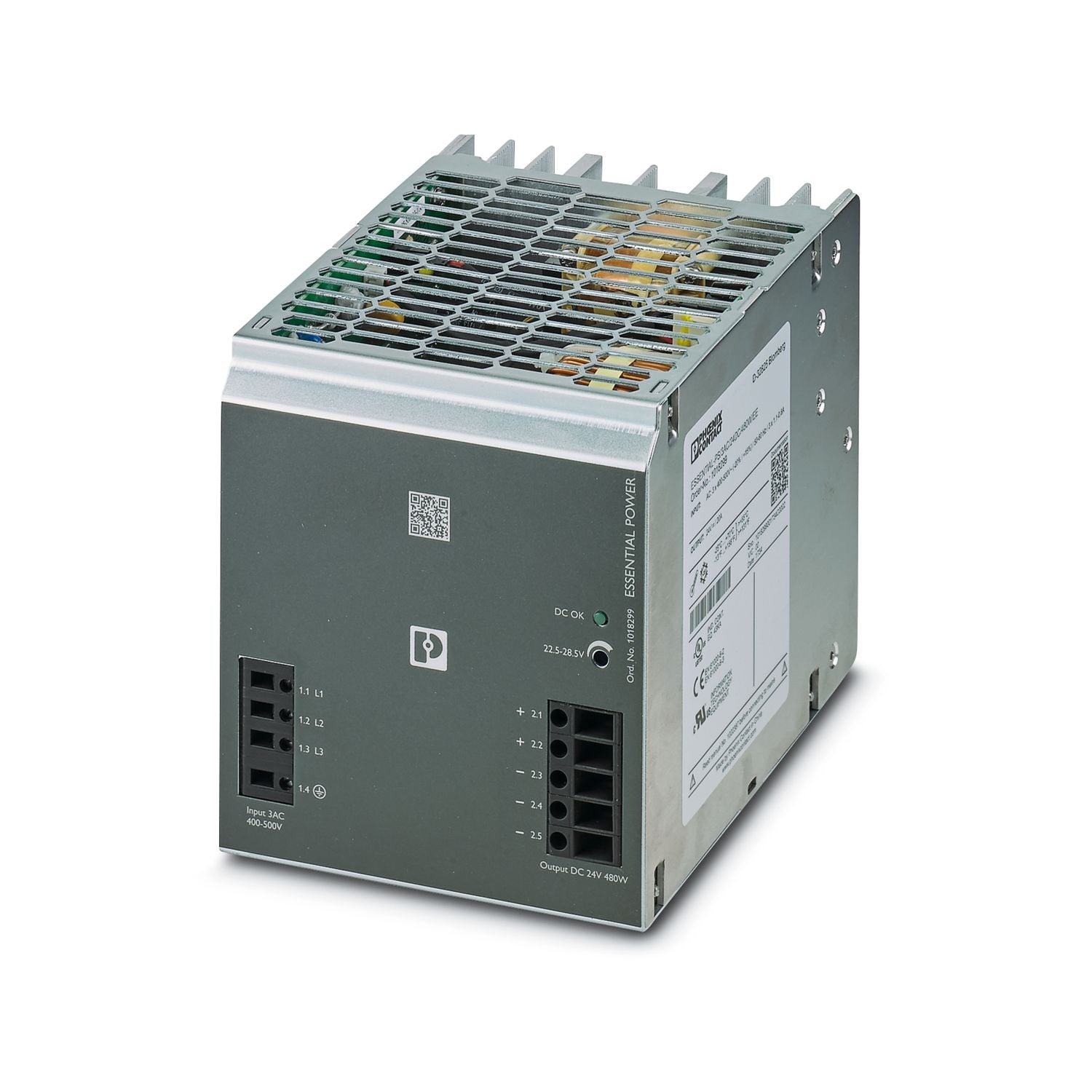

Phoenix Contact Essential PS/3AC/24DC/480W/EE 1018299

ESSENTIAL edition primary cycle power supply for DIN rail mounting, input: three-phase, output: 24 V DC / 480 W.

Technical data

Type of supply voltage: AC

Output voltage 1: 22.5...29.5 V

Output voltage 2: 22.5...22.5 V

Max. output current 1: 40 A

Adjustable output voltage: yes

Output voltage rating 1: 24 V

Output current rating 1: 40 A

Short-circuit proof: yes

Nominal AC supply voltage 50 Hz: 400...500 V

Rated AC supply voltage 60 Hz: 400...500 V

Stabilized output voltage: yes

Power absorbed: 1149.27 VA

Output power: 960 W

Stabilised: yes

Type of electrical connection: Screw connection

Possibility of rail mounting: yes

Wall mountable: no

Suitable for modular mounting: no

Recess width: 139 mm

Recess height: 130 mm

Direct mounting possible: no

Width: 139 mm

Height: 130 mm

Depth: 190 mm

1018299 | Phoenix Contact Essential PS/3AC/24DC/480W/EE

Product form

SKU: 1018299
Barcode: 4055626501796

BACK-ORDER

€116,20

    Free pickup in our shop(s)
    • HS CODE: 8504.40.82
    • STANDARD RETURN
    • QUICK DELIVERY ASSURED
      DELIVERY TIMES

    The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

    The delivery times for goods in the “AVAILABLE AT PARTNER” status are usually 3 to 5 working days and subject to unforeseeable variations.

    The delivery times for goods in the “BACK-ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication

      DOCUMENTATION
    Description

    Description

    Phoenix Contact Essential PS/3AC/24DC/480W/EE 1018299

    ESSENTIAL edition primary cycle power supply for DIN rail mounting, input: three-phase, output: 24 V DC / 480 W.

    Technical data

    Type of supply voltage: AC

    Output voltage 1: 22.5...29.5 V

    Output voltage 2: 22.5...22.5 V

    Max. output current 1: 40 A

    Adjustable output voltage: yes

    Output voltage rating 1: 24 V

    Output current rating 1: 40 A

    Short-circuit proof: yes

    Nominal AC supply voltage 50 Hz: 400...500 V

    Rated AC supply voltage 60 Hz: 400...500 V

    Stabilized output voltage: yes

    Power absorbed: 1149.27 VA

    Output power: 960 W

    Stabilised: yes

    Type of electrical connection: Screw connection

    Possibility of rail mounting: yes

    Wall mountable: no

    Suitable for modular mounting: no

    Recess width: 139 mm

    Recess height: 130 mm

    Direct mounting possible: no

    Width: 139 mm

    Height: 130 mm

    Depth: 190 mm
