2TLA010040R0000 | Abb Sentry BSR10

Description

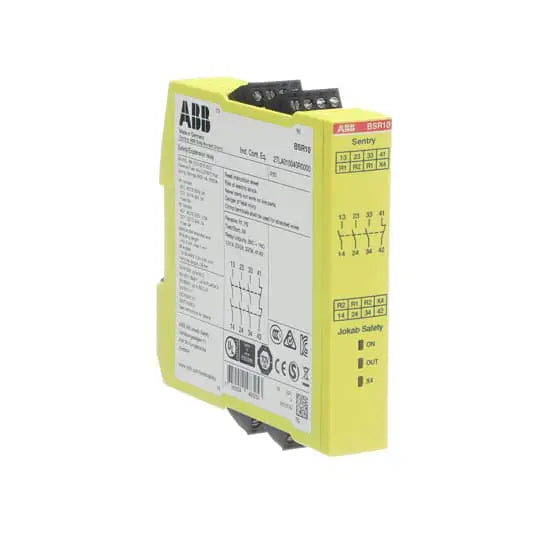

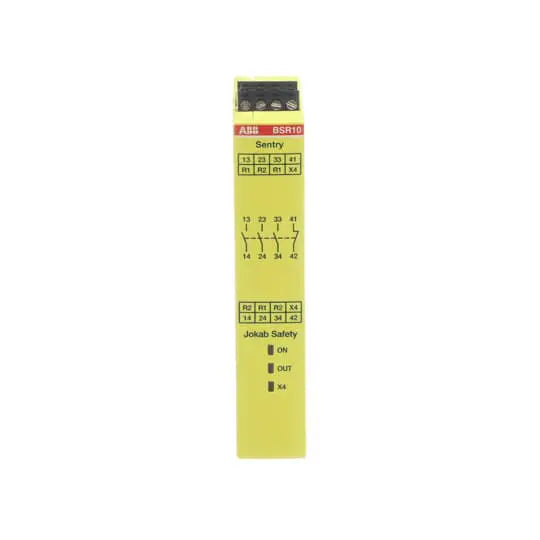

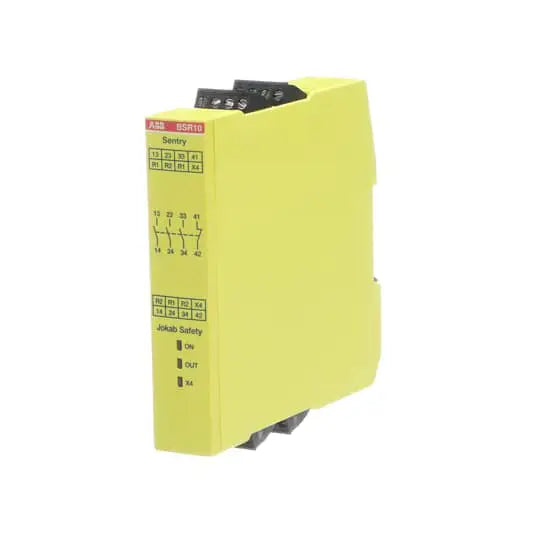

Abb Sentry BSR10 24VDC 2TLA010040R0000

PLC, relays, devices, systems and safety barriers, Security, Sentry safety relay, Sentry BSR10 24VDC, Command, control, electronic and systems products for safety.

Technical data
Function Expansion relay - No monitoring of two channel fault
Subfunction Start/test input
Type of timer relay No Time Delay
Nominal voltage of 24 V DC
control power supply
(Us)
Protection degree IP20
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Connection capacity
Tightening torque 0.7 N m
Stripping length 6.5 mm
cable
Recommended screwdriver M3.5
TH35-15 (35 x 15 mm Mounting) according to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Bar) according to IEC 60715
Mounting on DIN rail
Reference standards IS0 13849

Environmental data
In operation -25 ... +65 °C
In storage -40 ... +70 °C
Ambient temperature
RoHS Information 2CMT2022-006499
RoHS Declaration According to EC Directive 2011/65/EC

Dimensions
Product width 22.5 mm
Product height 120 mm
Product depth 120 mm
Product net weight 0.19 kg

Product form

RE-STOCKING

Free pickup in our shop(s)

SKU: A1004000
Barcode: 7350024483253

  • HS CODE: 8536411090
  • STANDARD RETURN
  • QUICK DELIVERY ASSURED

€141,00
