2CSF204568R1250 | Abb

Description

Description

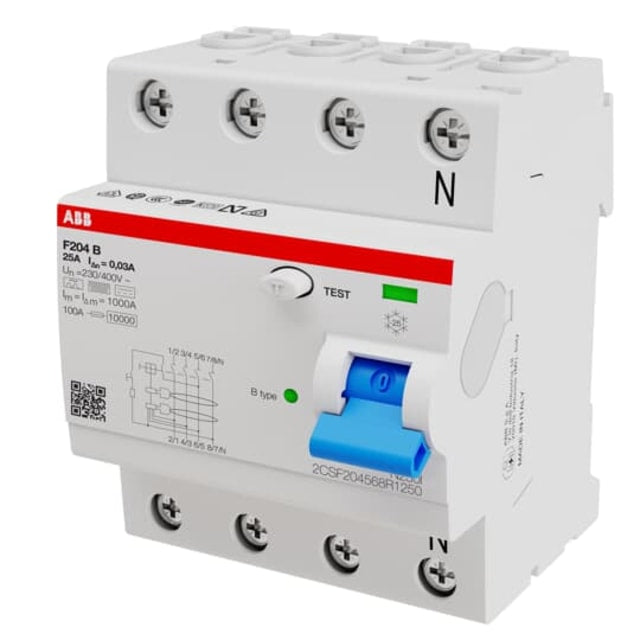

Abb 2CSF204568R1250

MODULAR DIFFERENTIAL SWITCH MODEL F204 B DIFF.PURO 4P B 25 30

Technical data

Number of poles
4
Rated voltage
400  V
Rated current
25  TO
Rated fault current
0.03  TO
Rated insulation voltage Ui
440  V
Rated impulse voltage resistance Uimp
4  kV
Mounting method
Mounting on g
from DIN

Differential type B
Selective
No
Digital electronic control intervention time
No
Rated short-time current Icw
1  kA
Resistance to nuisance trips (peak voltage surges)
3  kA
Voltage type
B.C
With locking device
No
Frequency
50/60 Hz
Accessorizable
Yes
Degree of protection (IP)
IP20
Width in number of modules
4
Recess depth
69.5  mm
Ambient temperature during operation
-25...70  °C
Degree of pollution
3
Connectable multi-strand (semi-rigid) conductor section
0...25  mm²
Connectable single-wire (rigid) conductor section
1...25  mm²
Explosion-proof
No

2CSF204568R1250 | Abb

Product form

SKU: 2CSF204568R1250
Barcode: 8012542341956

€609,18

  •  Made to order - Delivery in 2-6 weeks
  • HS CODE: 8536.30.30
  • STANDARD RETURN
  • QUICK DELIVERY ASSURED
  DELIVERY TIMES

The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

The delivery times for goods in the “AVAILABLE EU WAREHOUSE” status are usually 3 to 5 working days and subject to unforeseeable variations.

The delivery times for goods in the “MADE TO ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication
