1SFA898117R7000 | Abb

Description

Description

 1SFA898117R7000 | Abb

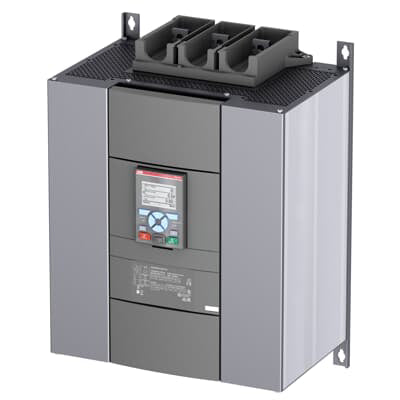

The PSTX570-600-70 softstarter has a maximum rated operating current of 570 A with an operating voltage range of 208...600 V AC. The rated control voltage is 100...250 V AC at 50/60 Hz. The PSTX features a 3-phase soft start and stop control via a voltage or torque ramp. It has a built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from the relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. The PSTX also features jog, braking, brake to standstill, diagnostics, sequence start and emergency/fire pump mode as standard.

Main features

  • Rated operating current Ie at 40° Tu  -  570  TO

  • Rated operating voltage Ue  -  208...600  V

  • Mechanical power supplied for three-phase motor, standard switching, 230 V  -  160  kW

  • Mechanical power supplied for three-phase motor, standard commutation, 400 V  -  315  kW

  • Mechanical power supplied for three-phase motor, delta switching, 230 V  -  295  kW

1SFA898117R7000 | Abb

Product form

SKU: PSTX570-600-70
Barcode: 7320500508992

€11.397,12

  •  On order - Delivery in 2-6 weeks
  • HS CODE:
  • STANDARD RETURN
  • QUICK DELIVERY ASSURED
  DELIVERY TIMES

The delivery times for goods in the “AVAILABLE” status are usually 1 to 3 working days: the products are available in our main warehouse, ready for delivery for the quantity indicated, and the times required are those of shipping via express carrier and vary according to the destination.

The delivery times for goods in the “AVAILABLE EU WAREHOUSE” status are usually 3 to 5 working days and subject to unforeseeable variations.

The delivery times for goods in the “MADE TO ORDER” status are usually 2-6 weeks: contact our sales team for a precise indication

  DOCUMENTATION
Description

Description

 1SFA898117R7000 | Abb

The PSTX570-600-70 softstarter has a maximum rated operating current of 570 A with an operating voltage range of 208...600 V AC. The rated control voltage is 100...250 V AC at 50/60 Hz. The PSTX features a 3-phase soft start and stop control via a voltage or torque ramp. It has a built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from the relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. The PSTX also features jog, braking, brake to standstill, diagnostics, sequence start and emergency/fire pump mode as standard.

Main features

  • Rated operating current Ie at 40° Tu  -  570  TO

  • Rated operating voltage Ue  -  208...600  V

  • Mechanical power supplied for three-phase motor, standard switching, 230 V  -  160  kW

  • Mechanical power supplied for three-phase motor, standard commutation, 400 V  -  315  kW

  • Mechanical power supplied for three-phase motor, delta switching, 230 V  -  295  kW
