Descripción

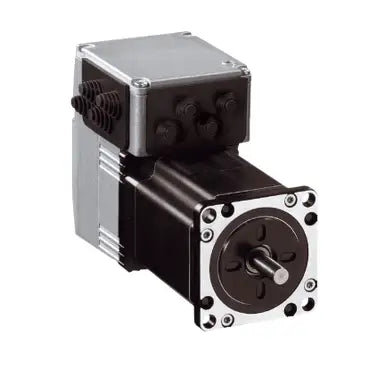

ILS2E851PC1F0 SCHNEIDER ELECTRIC
This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated EtherCAT communication interface. The 3-phase stepper motor with a ratedsupply voltage of 24V, 48V DC, a maximum current consumption of 5000mA and a nominal speed of 600RPM at 48V and 300RPM at 24V. It offers medium speed of rotation and medium torque with untapped shaft end. It is furnished with industrial connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. The length of this product is 187.3mm and the centering collar dimensions are 2mm (depth) x 60mm (diameter). It weighs 4.4kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CUL, TUV and UL. It meets EN 61800-3 2001, IEC 60072-1, EN/IEC 61800-3, EN 61800-3 2001-02, EN 50347 and EN/IEC 50178 standards. It supports 85mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.
