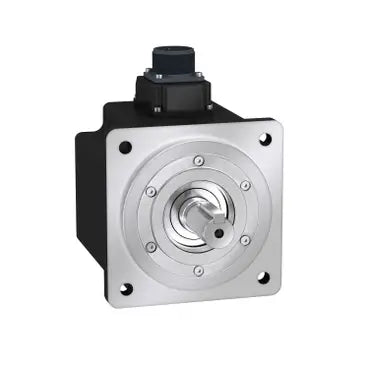

BCH2MR3023CA6C | SCHNEIDER ELECTRIC

Descripción

BCH2MR3023CA6C SCHNEIDER ELECTRIC

This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 16.33A and a continuous power of 3000W. The shaft dimensions are 35mm (diameter) x 79mm (length). It is furnished with MIL connector for electricalconnection. It is an IP50 and IP65 rated product. The length of this product is 202mm and the centering collar dimensions are 4mm (depth) x 114.3mm (diameter) with 200mm mounting hole. It weighs 18.5kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 3kW 220V three phase. It supports 180mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Forma del producto

IN STOCK

SKU: BCH2MR3023CA6C
Código de barras: 3606480734823

€1.547,06

    • HECHO ESTÁNDAR
    • ENTREGA RÁPIDA DE SEGUROS
    • HS CODE: 85015290
      DOCUMENTAZIONE

    Descripción

    BCH2MR3023CA6C SCHNEIDER ELECTRIC

    This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 16.33A and a continuous power of 3000W. The shaft dimensions are 35mm (diameter) x 79mm (length). It is furnished with MIL connector for electricalconnection. It is an IP50 and IP65 rated product. The length of this product is 202mm and the centering collar dimensions are 4mm (depth) x 114.3mm (diameter) with 200mm mounting hole. It weighs 18.5kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 3kW 220V three phase. It supports 180mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
